Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> NATS (Nissan Anti-Theft System) >> Diagnostic Strategies

Diagnostic Strategies

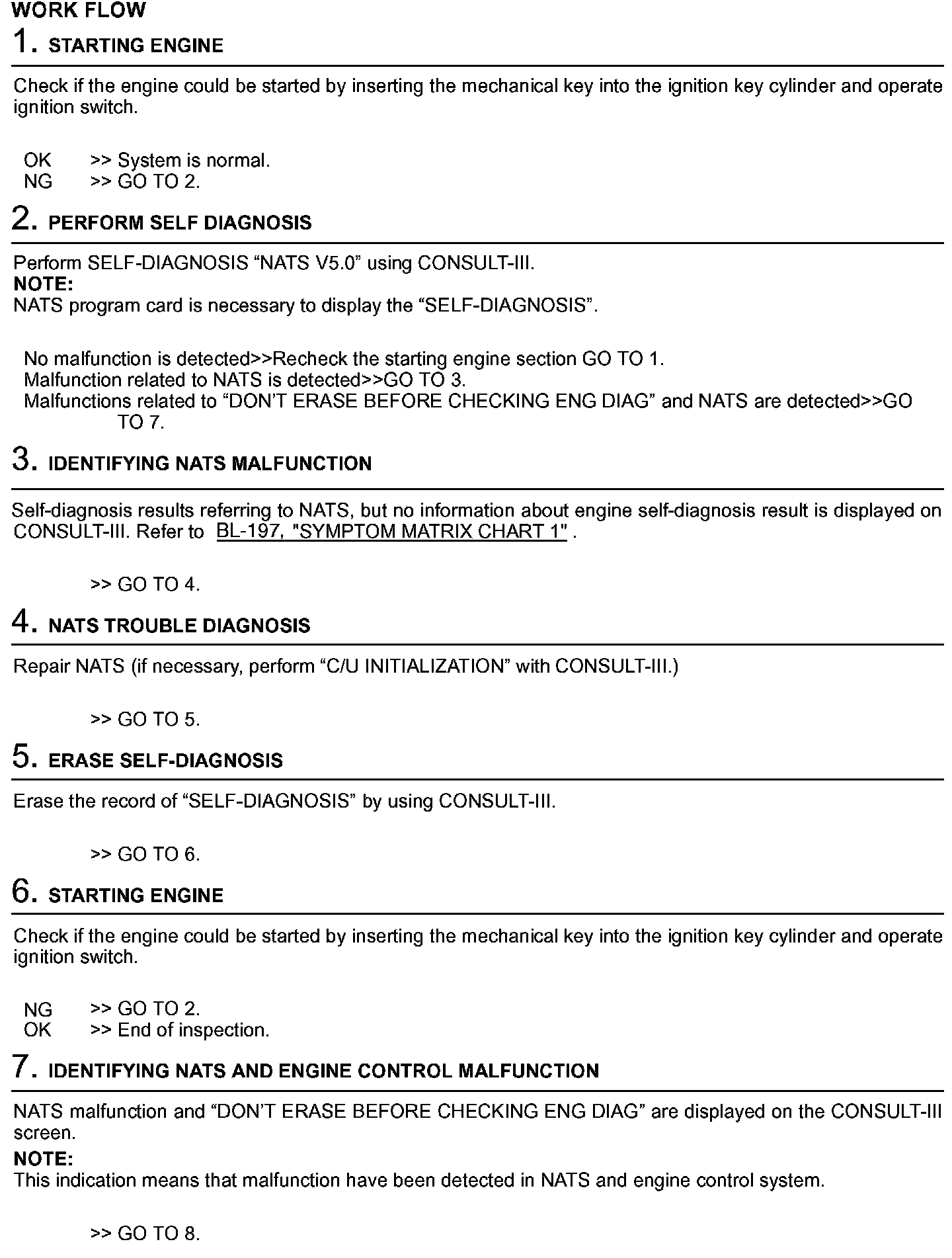

Work Flow (Steps 1 - 7):

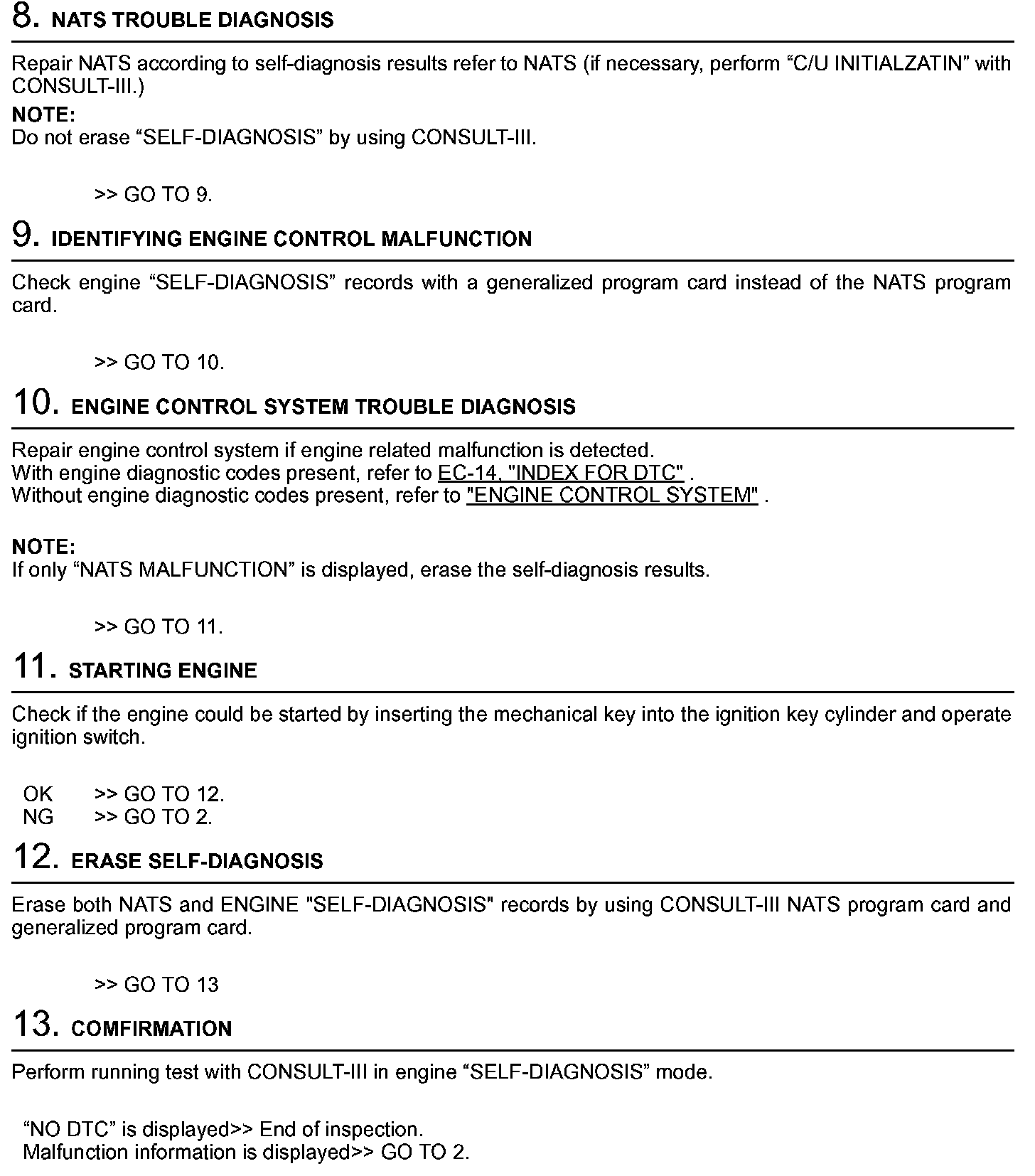

Work Flow (Steps 8 - 13):
