Terminals and Reference Values For Steering Lock Solenoid
Terminals and Reference Values For Steering Lock Solenoid

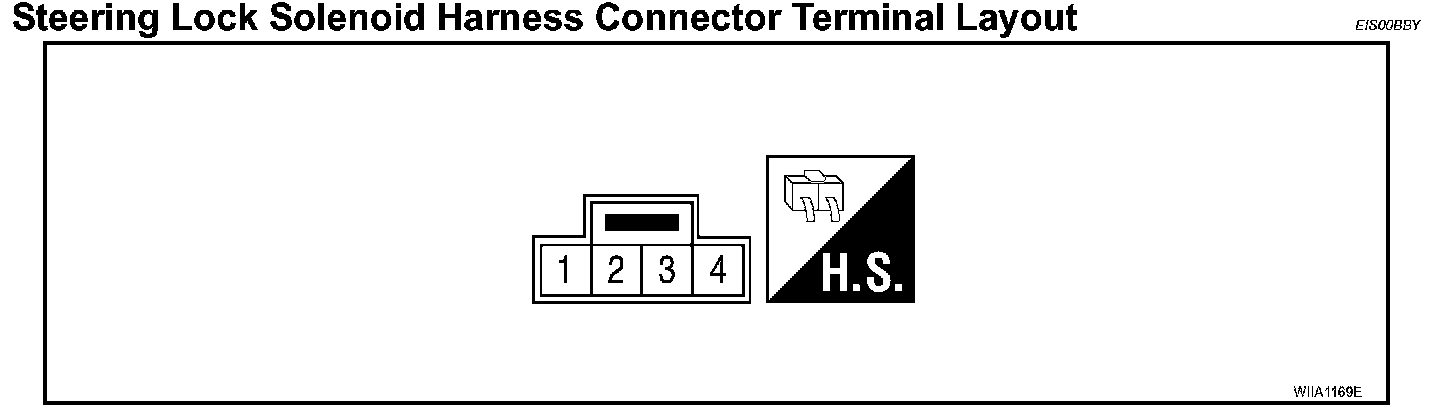

Steering Lock Solenoid Harness Connector Terminal Layout:

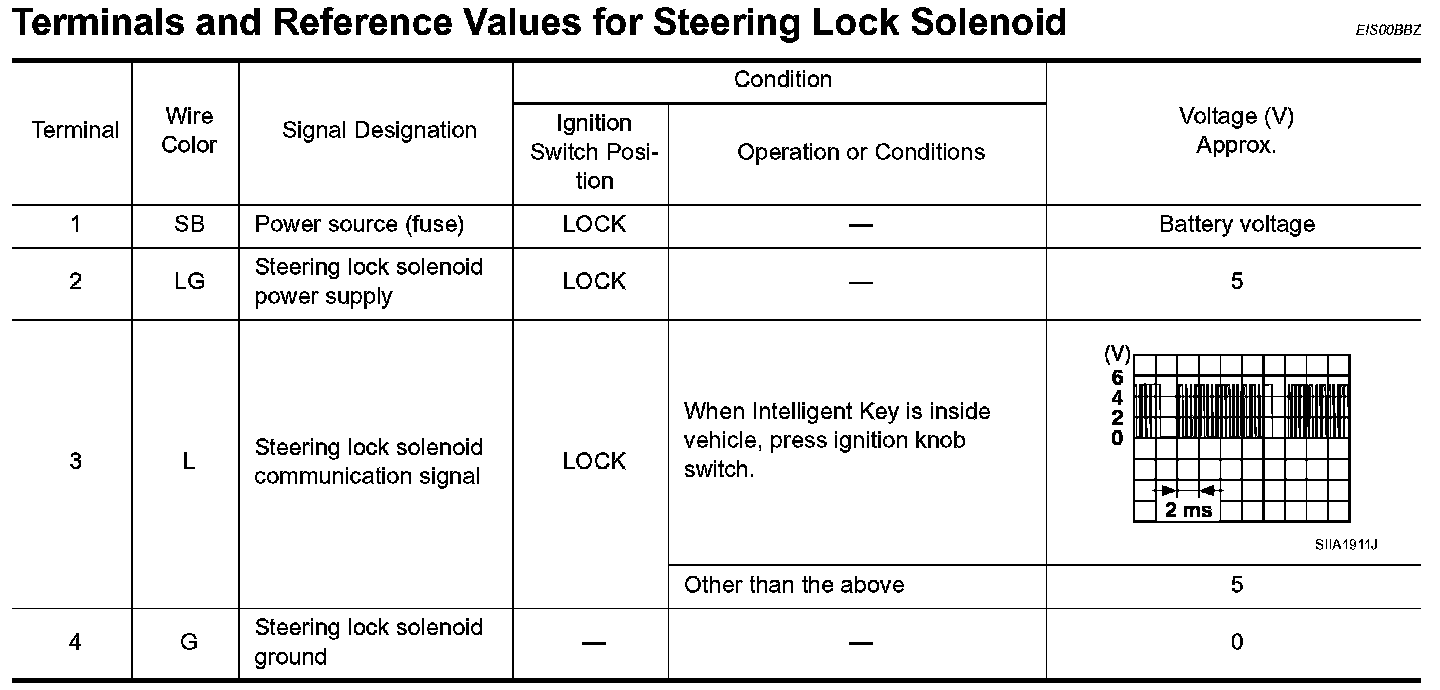

Terminals And Reference Values For Steering Lock Solenoid:
