Terminals and Reference Values For Intelligent Key Unit

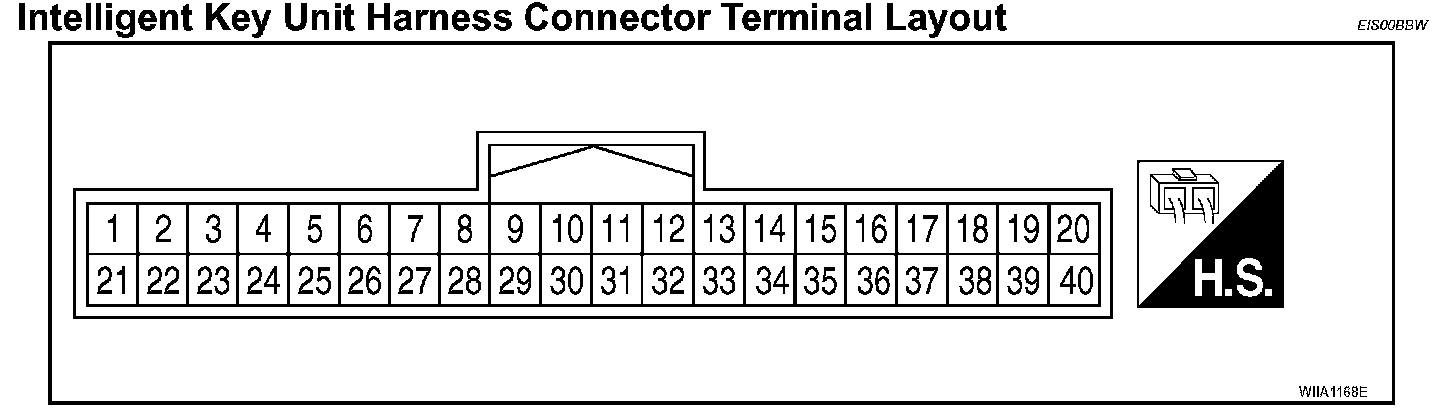

Intelligent Key Unit Harness Connector Terminal Layout:

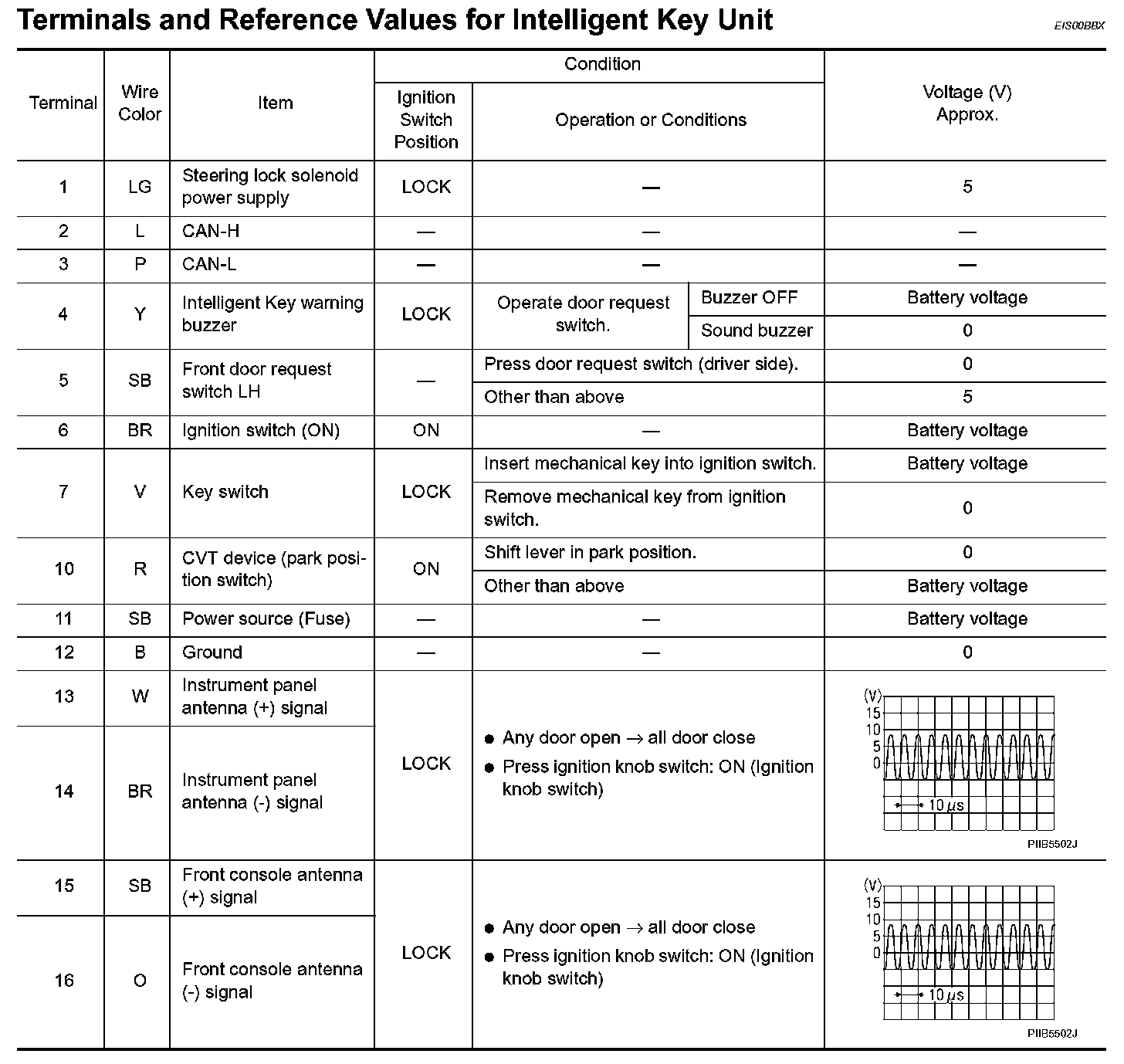

Terminals And Reference Values For Intelligent Key Unit (Part 1):

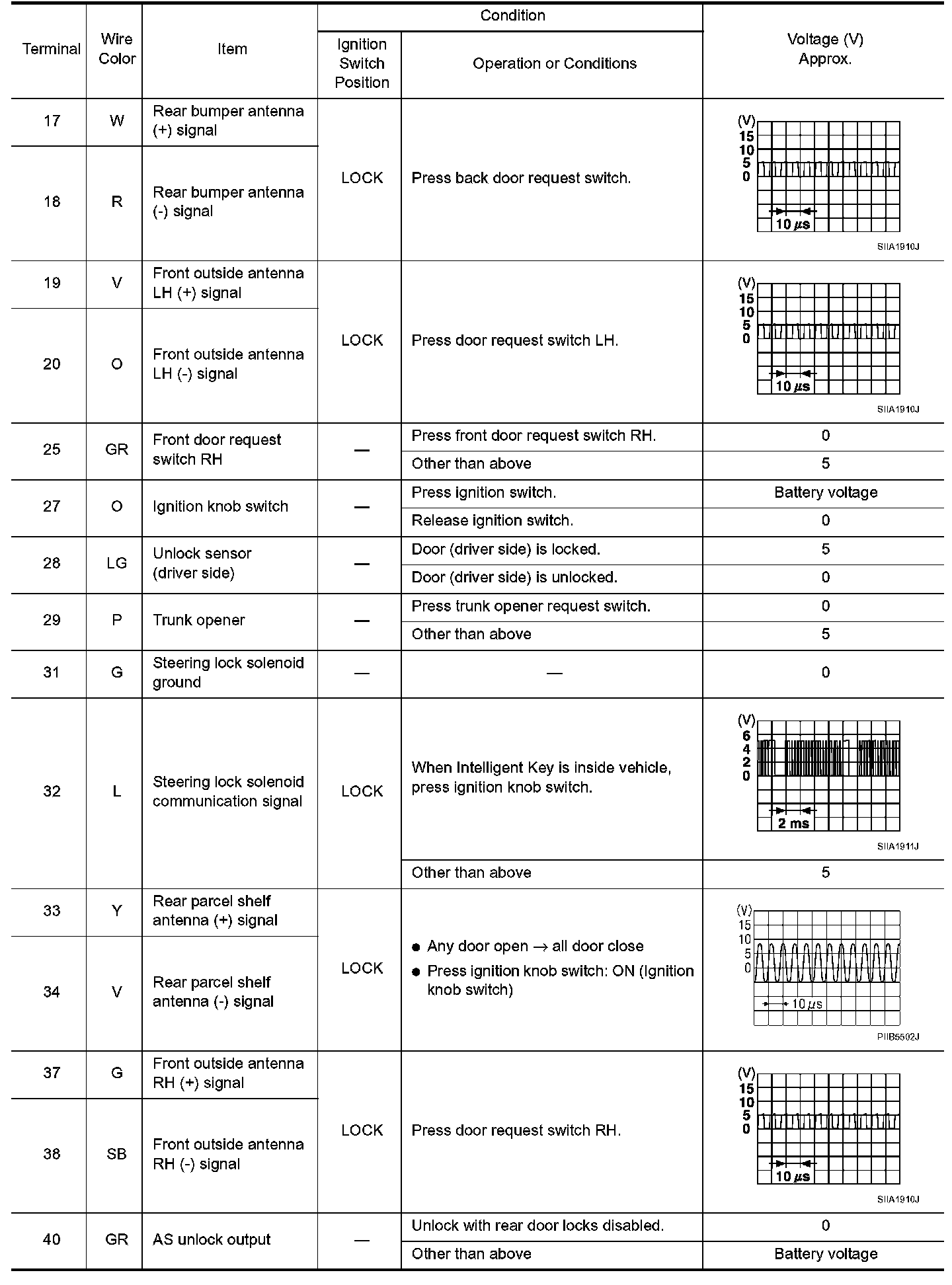

Terminals And Reference Values For Intelligent Key Unit (Part 2):
