Key Switch (Intelligent Key Unit Input) Check

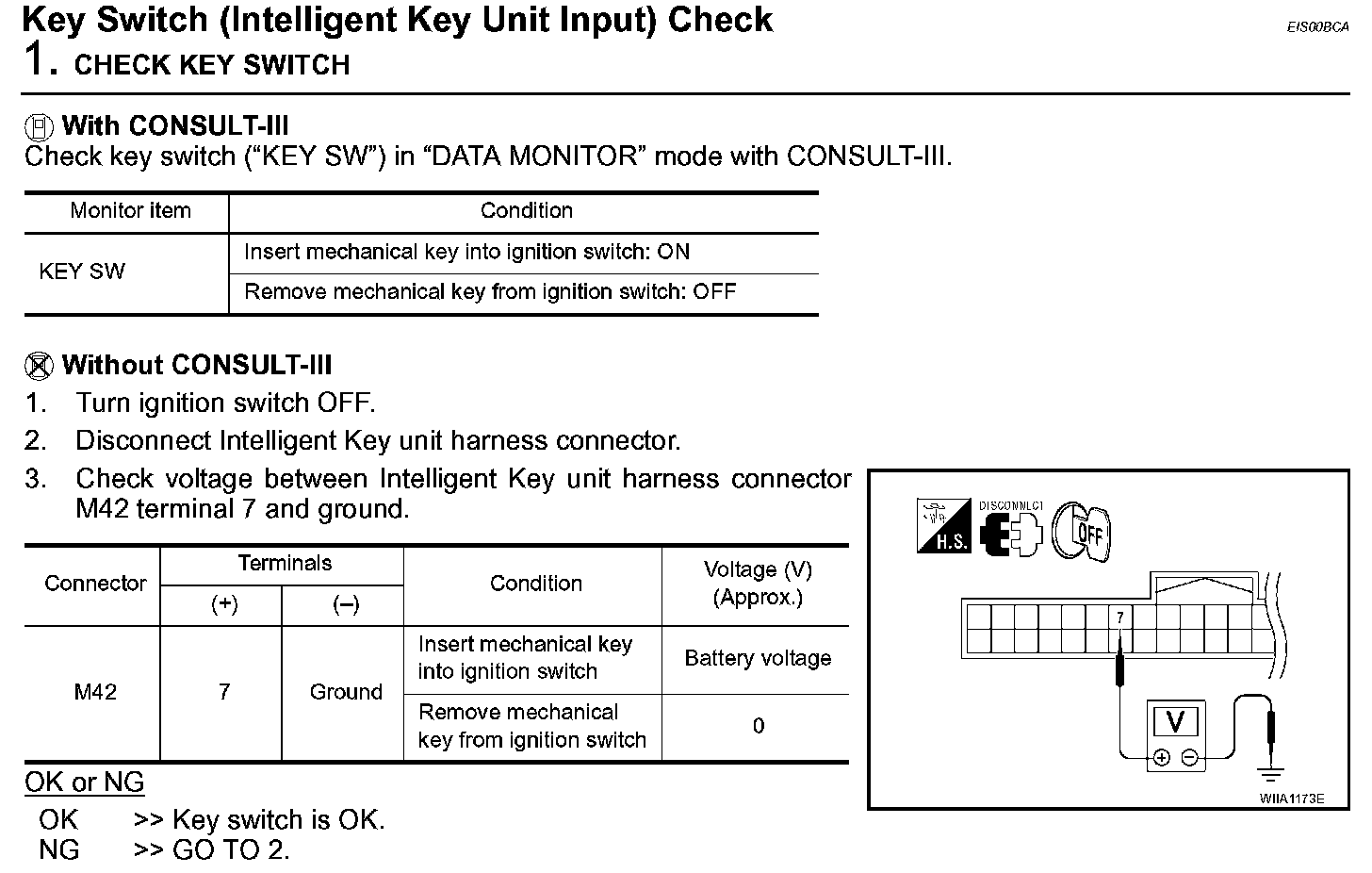

Key Switch (Intelligent Key Unit Input) Check (Step 1):

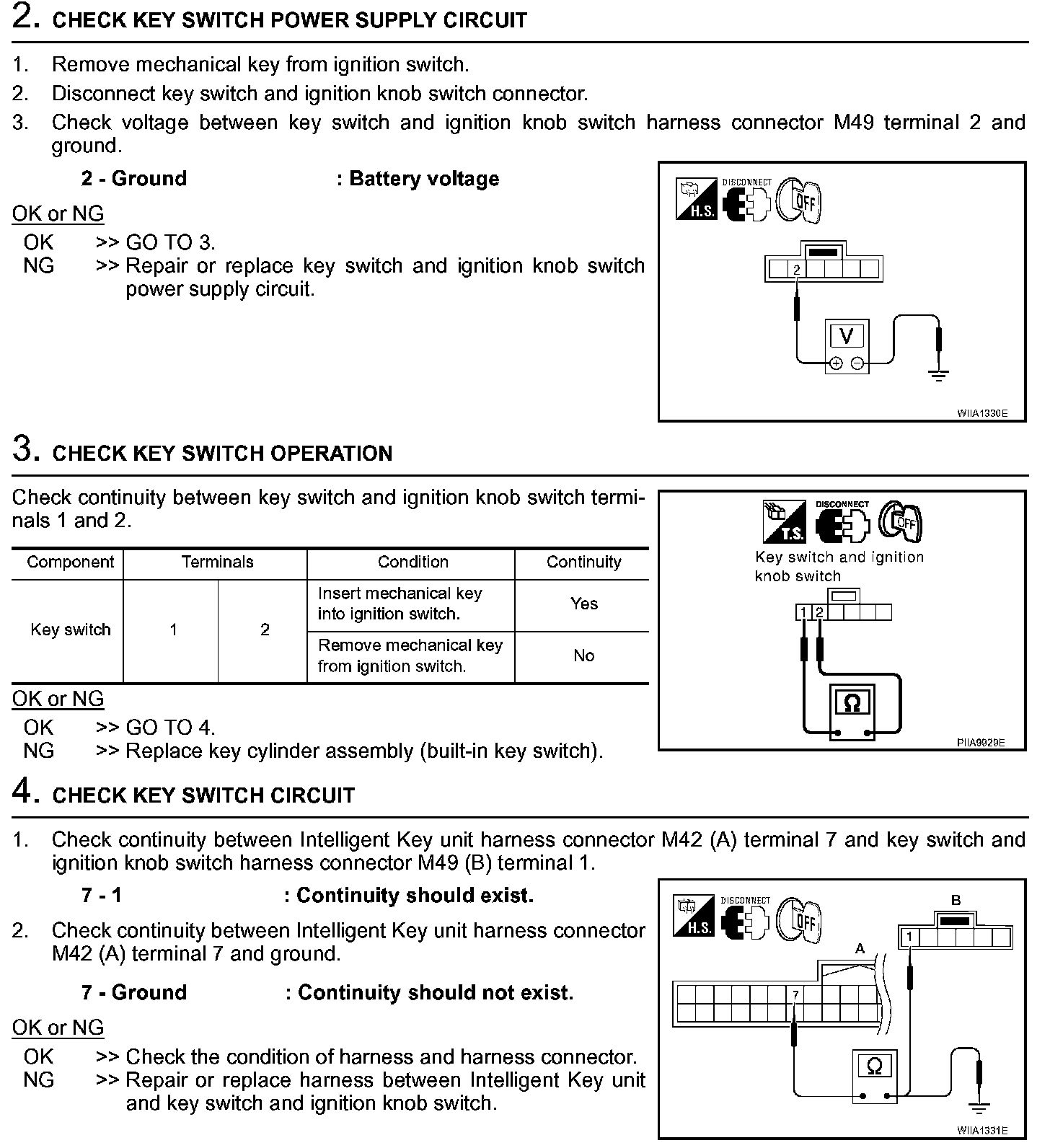

Key Switch (Intelligent Key Unit Input) Check (Steps 2 - 4):
