Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System >> Component Tests >> Inside Key Antenna Check

Inside Key Antenna Check

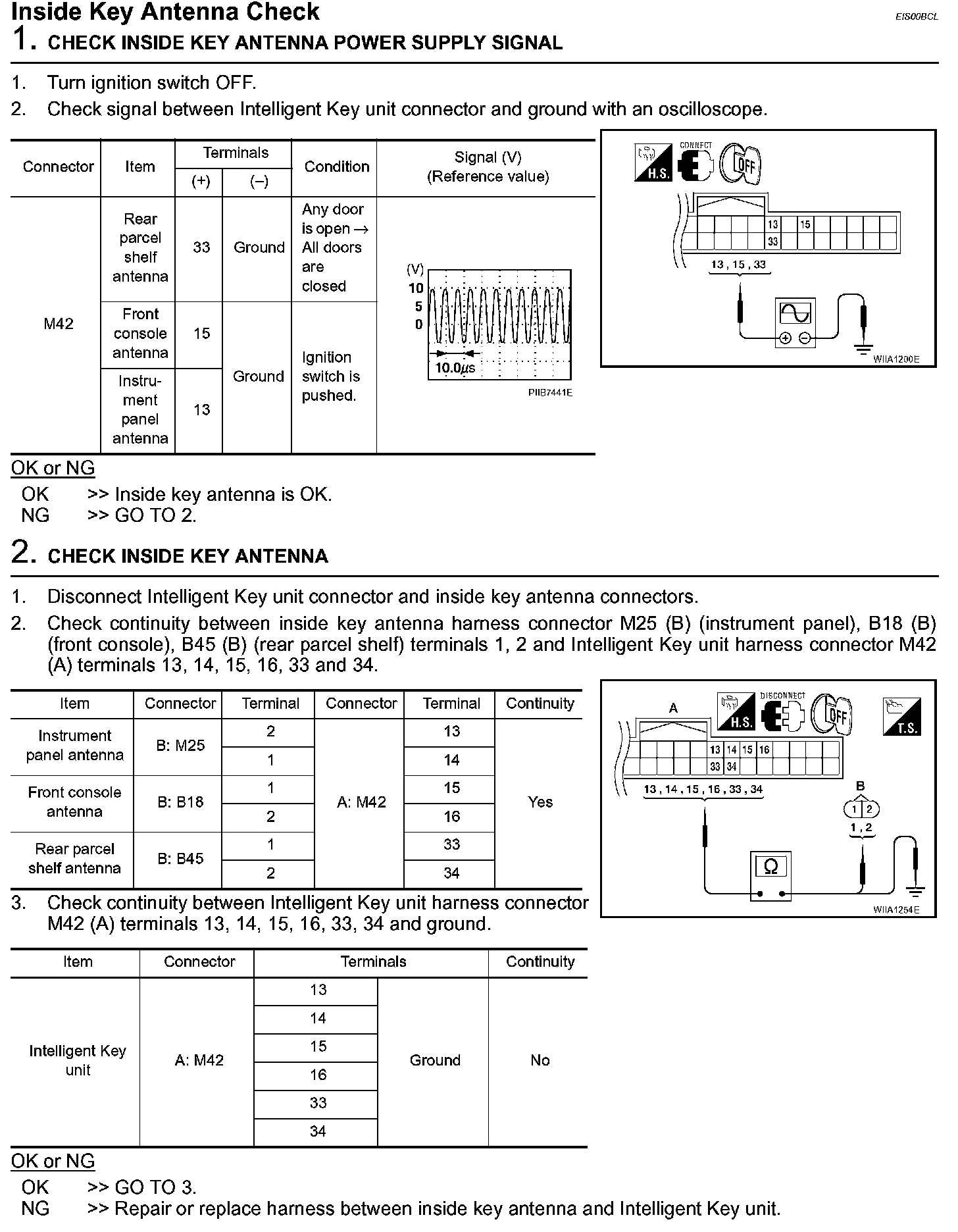

Inside Key Antenna Check (Steps 1 - 2):

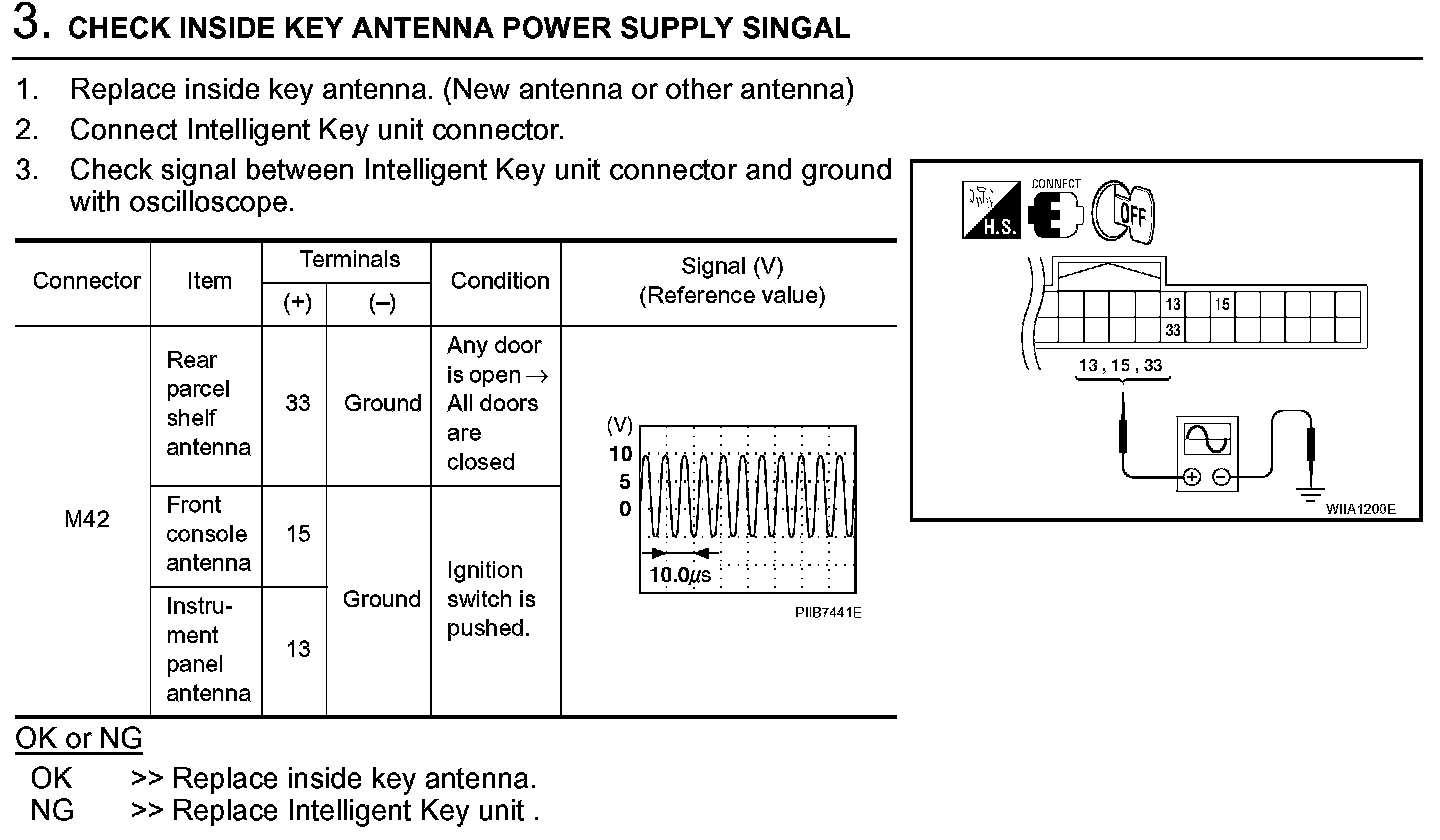

Inside Key Antenna Check (Step 3):
