Ignition Knob Switch Check

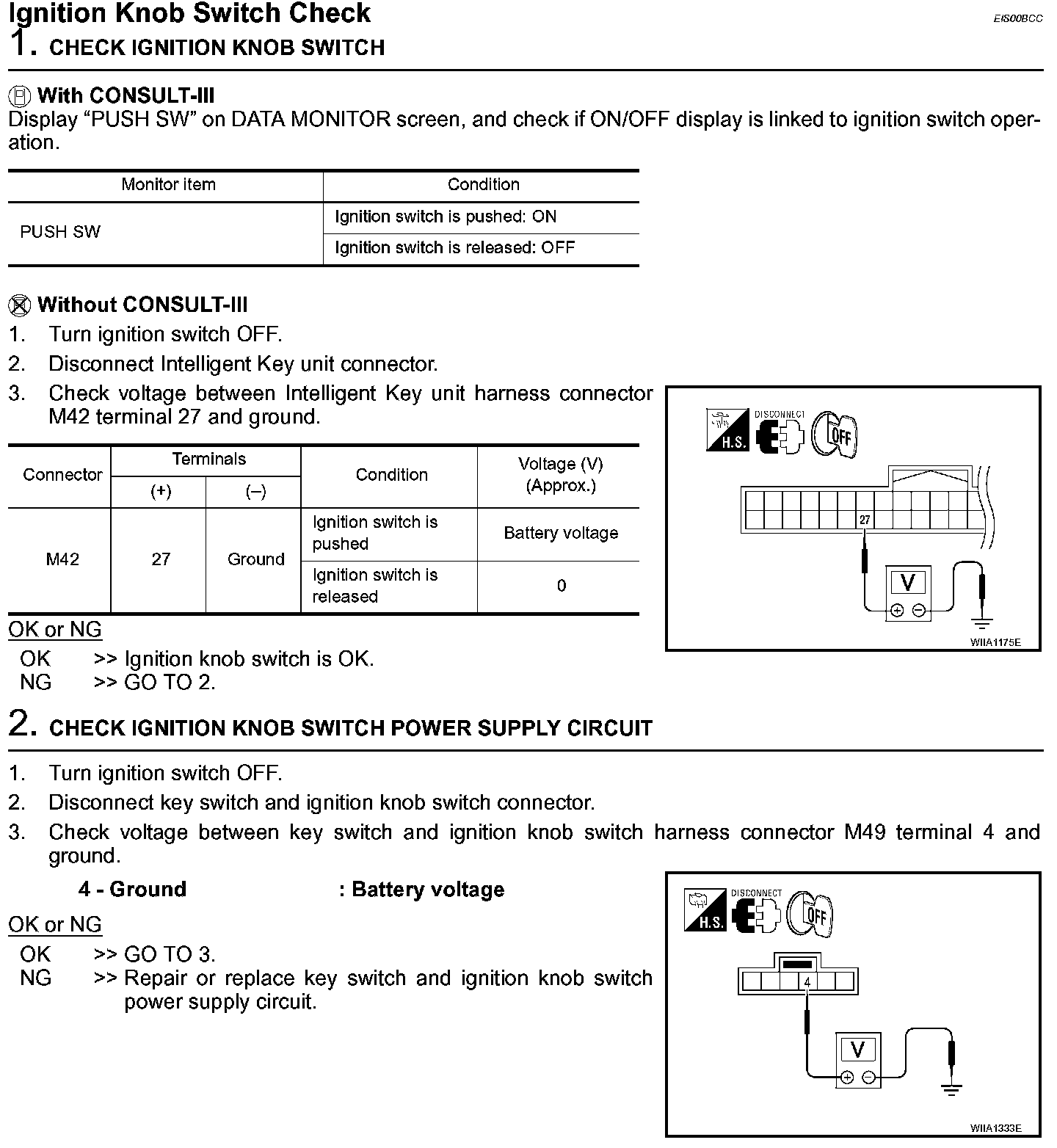

Ignition Knob Switch Check (Steps 1 - 2):

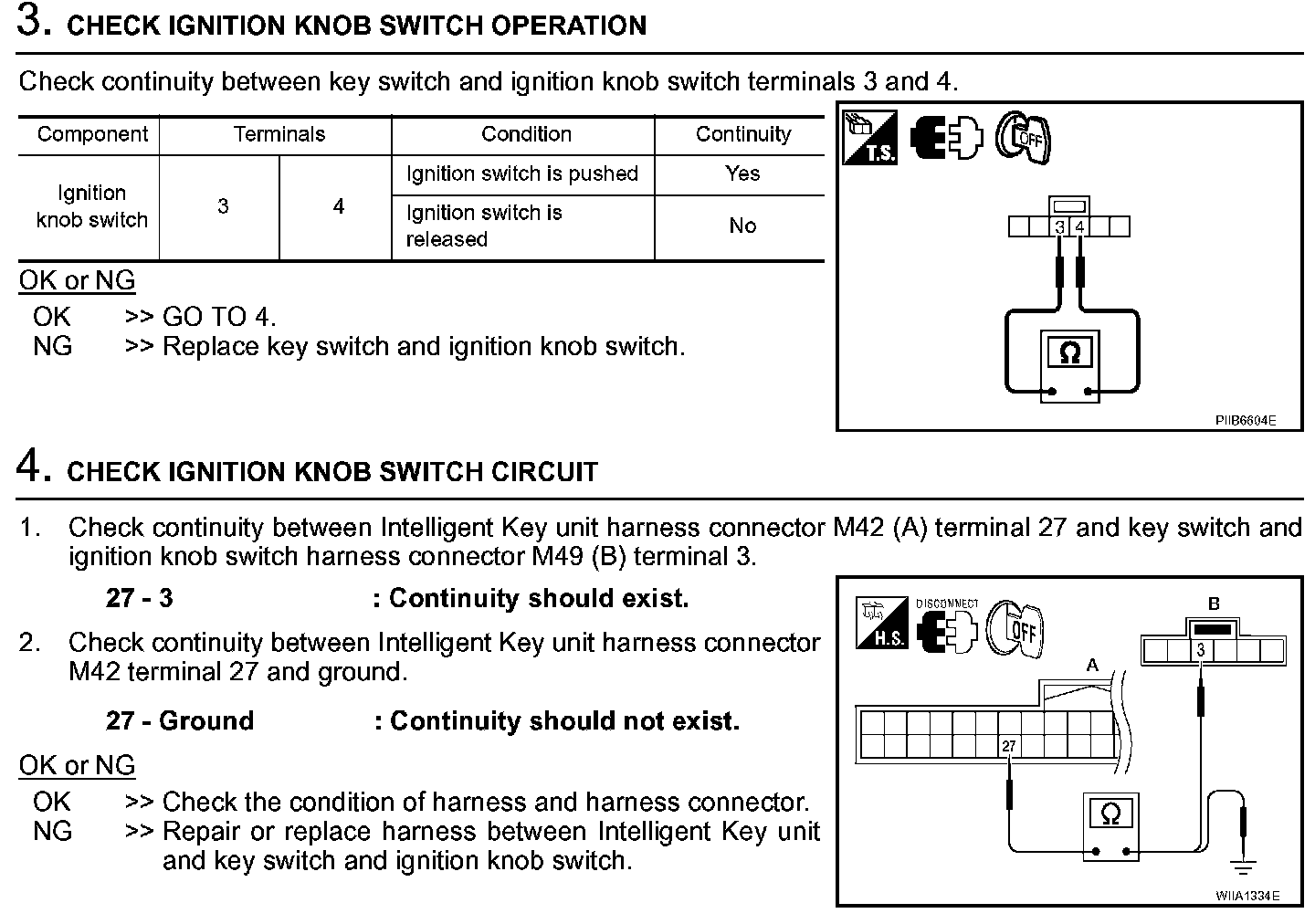

Ignition Knob Switch Check (Steps 3 - 4):
