Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Testing and Inspection >> Component Tests and General Diagnostics >> Intelligent Key System >> Component Tests >> IPDM E/R Operation Check

IPDM E/R Operation Check

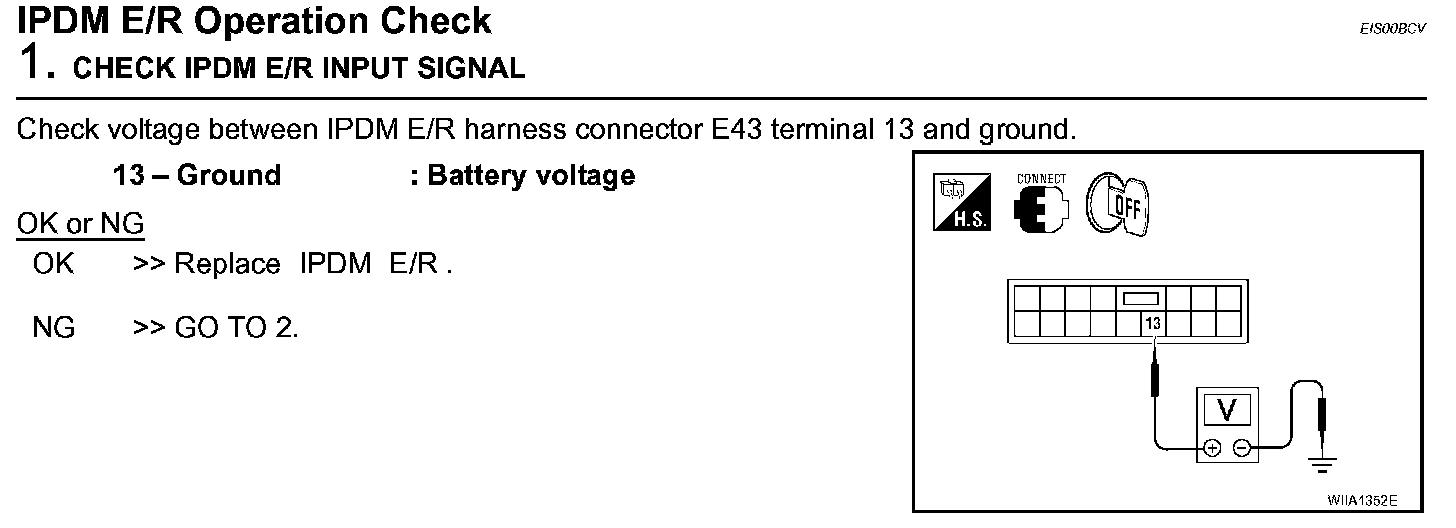

IPDM E/R Operation Check (Step 1):

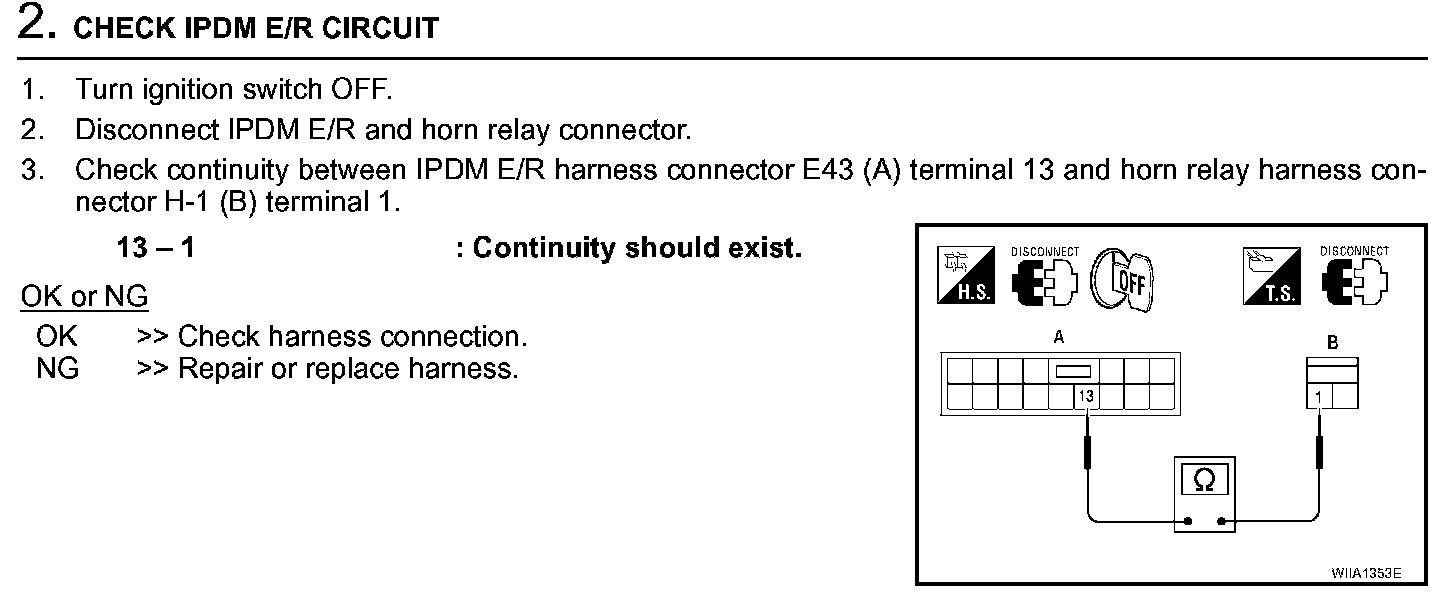

IPDM E/R Operation Check (Step 2):
