Keyless Entry Receiver: Service and Repair

Removal and Installation of Remote Keyless Entry Receiver

REMOVAL
1. Disconnect the battery negative terminal.
2. Remove glove box assembly.

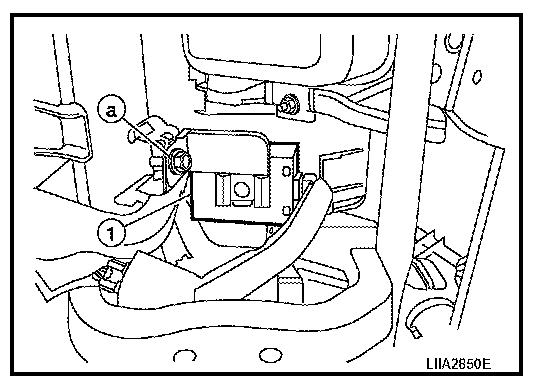

3. Remove the screw (a) disconnect and remove the remote keyless entry receiver (1).

INSTALLATION
Installation is in the reverse order of removal.
