Keyless Entry Module: Service and Repair

Removal and Installation of Intelligent Key Unit

REMOVAL
1. Disconnect the battery negative terminal.
2. Remove the glove box assembly.

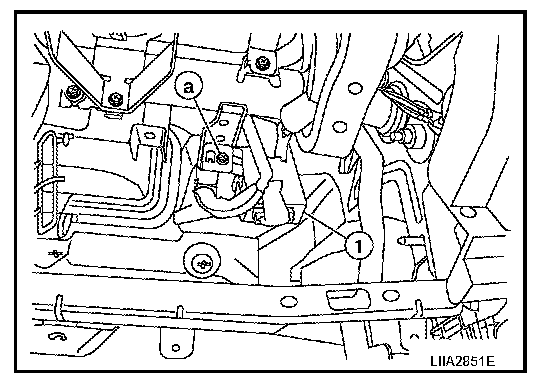

3. Remove the screw (a), disconnect and remove the Intelligent Key unit (1).

INSTALLATION
Installation is in the reverse order of removal.
