Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Diagrams >> Electrical Diagrams >> Intelligent Key System >> Intelligent Key System Schematic

Intelligent Key System Schematic

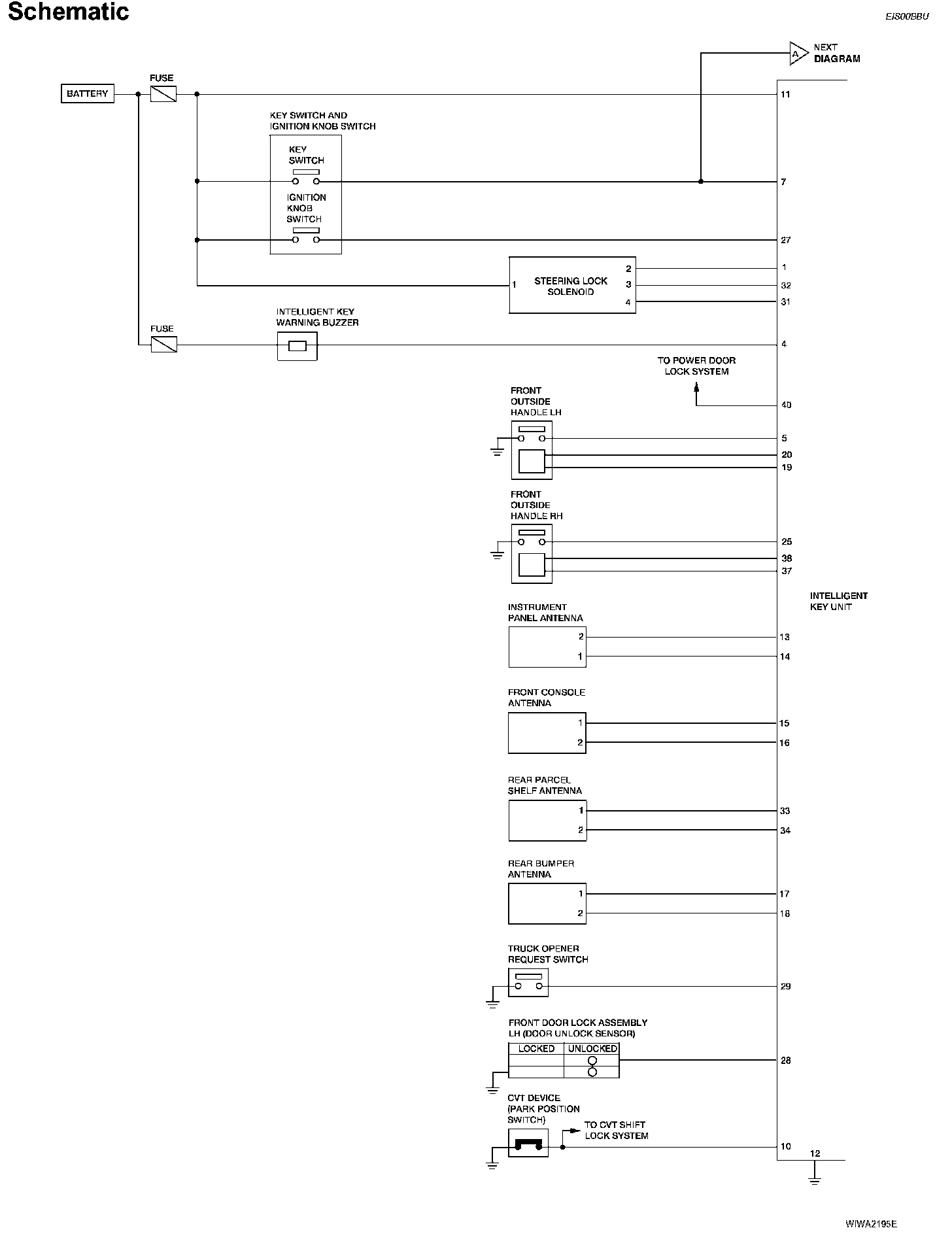

Intelligent Key System Schematic (Part 1):

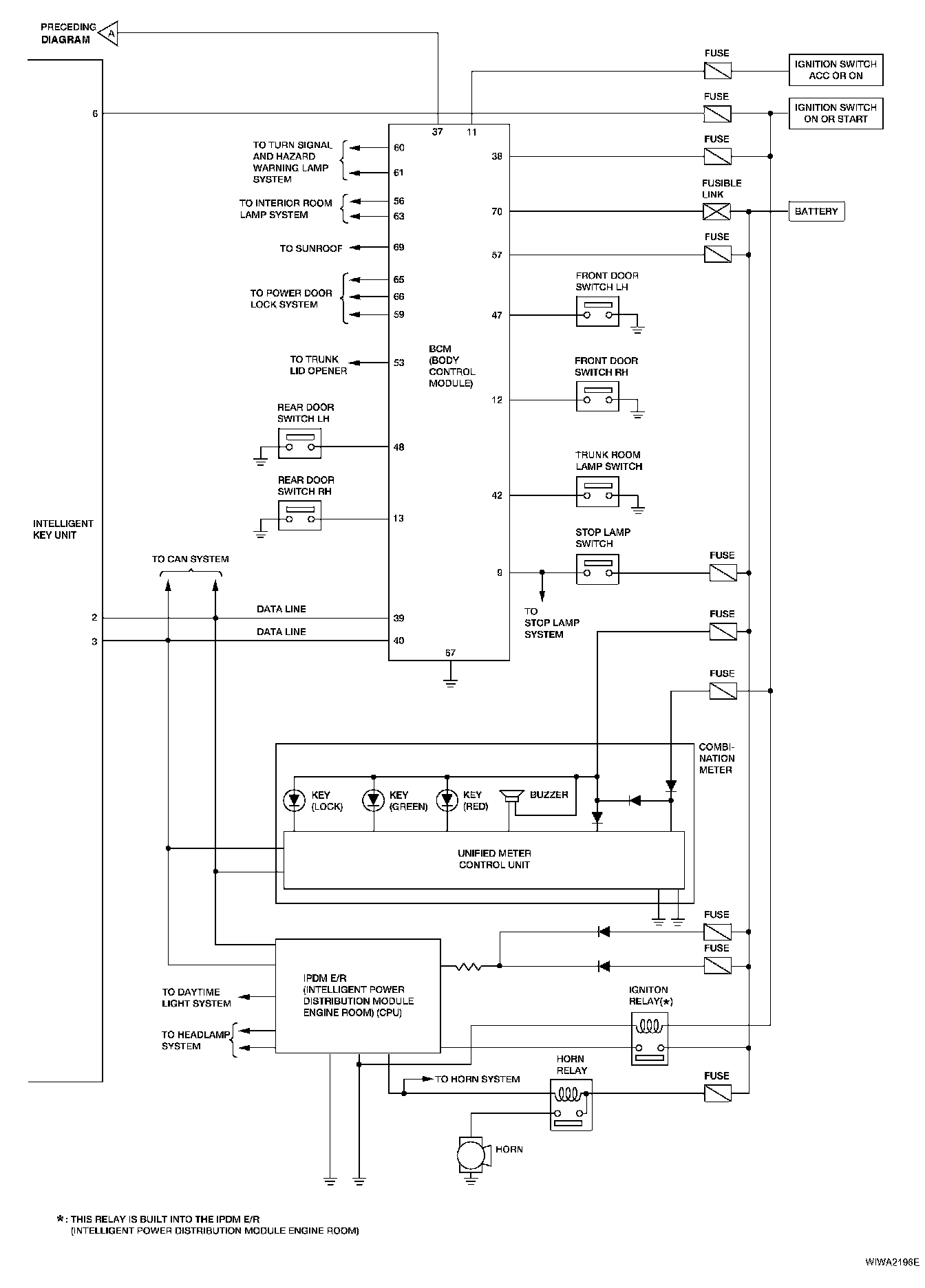

Intelligent Key System Schematic (Part 2):
