Antenna: Service and Repair

Removal and Installation of Roof Antenna

REMOVAL
1. Remove rear assist grip (LH). Refer to "HEADLINING".
2. Remove three headliner rear clips. Pull down the rear part of the headliner to reposition out of the way.

CAUTION: Use care when repositioning headliner to avoid causing damage.

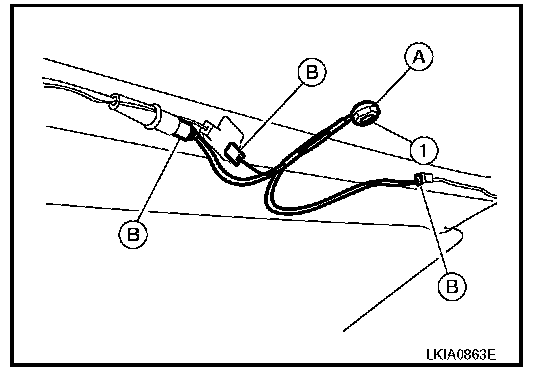

3. Disconnect the roof antenna harness connectors (B).
4. Remove the roof antenna nut (A) and remove the roof antenna (1).

INSTALLATION
Installation is in the reverse order of removal.
