Home >> Nissan-Datsun >> 2007 >> Sentra L4-2.0L (MR20DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> DTC Priorities for Troubleshooting >> Engine Control System

Engine Control System

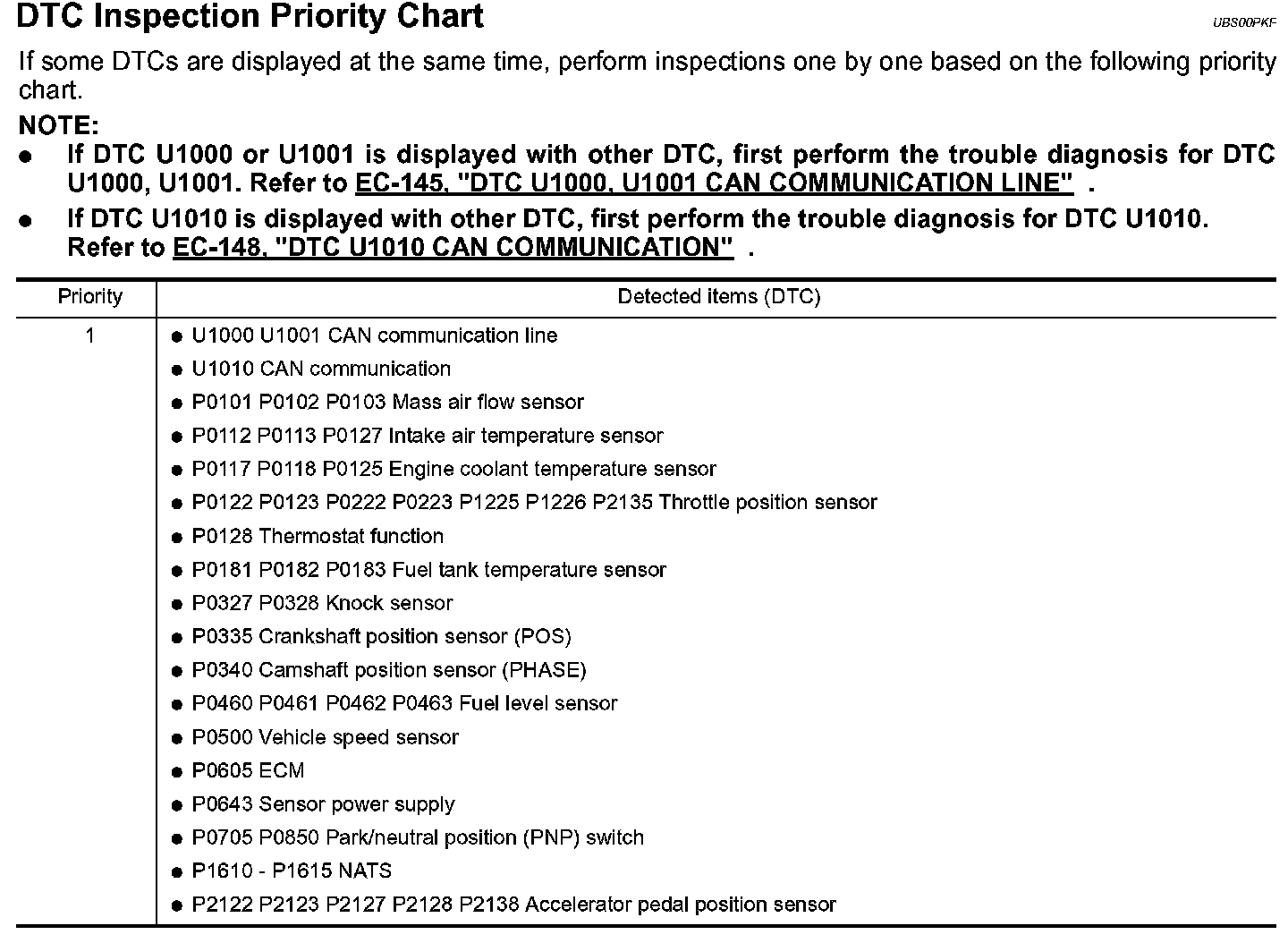

DTC Inspection Priority Chart (Part 1):

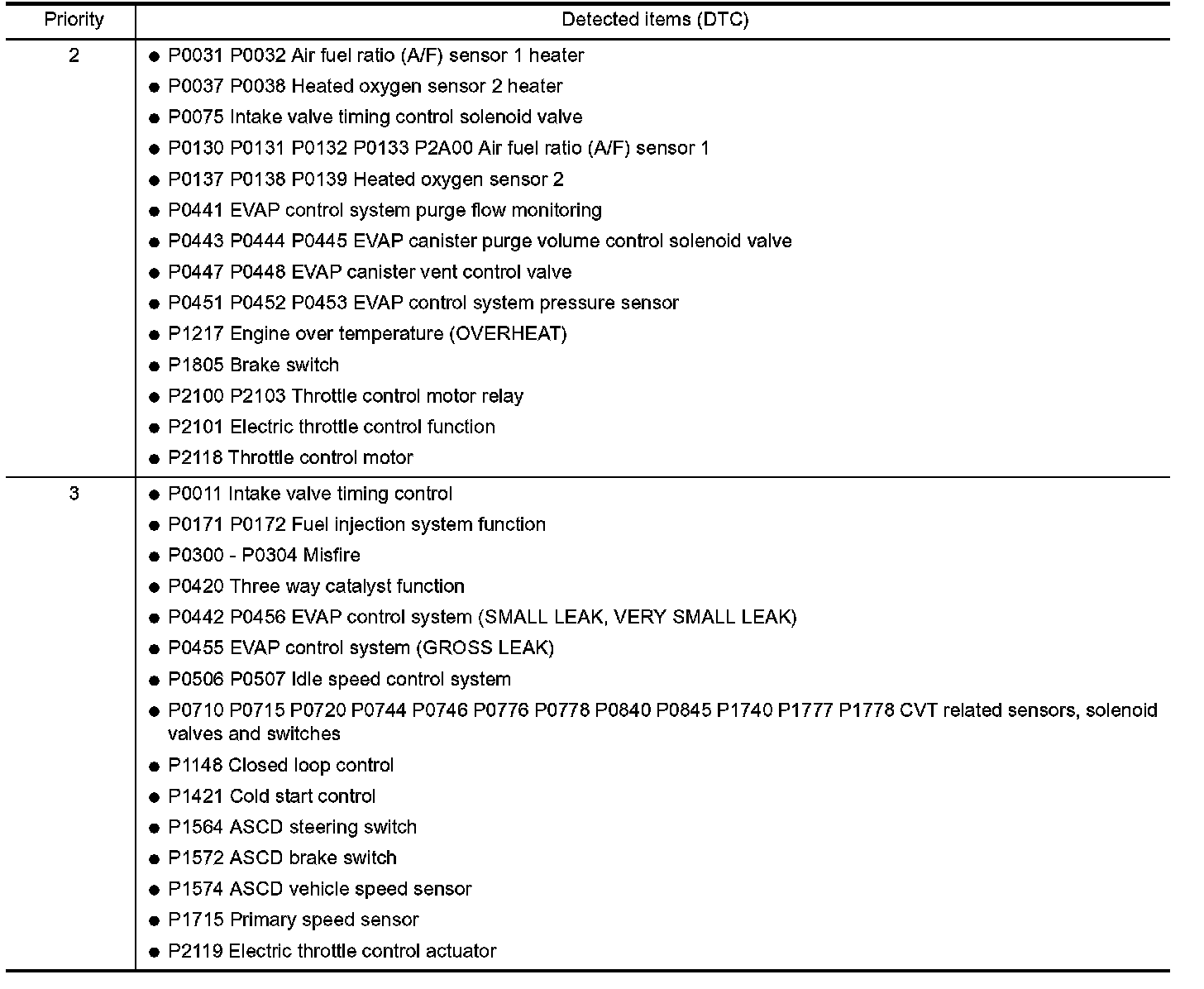

DTC Inspection Priority Chart (Part 2):
