Altima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
BCM (Body Control Module)
BCM (Body Control Module)

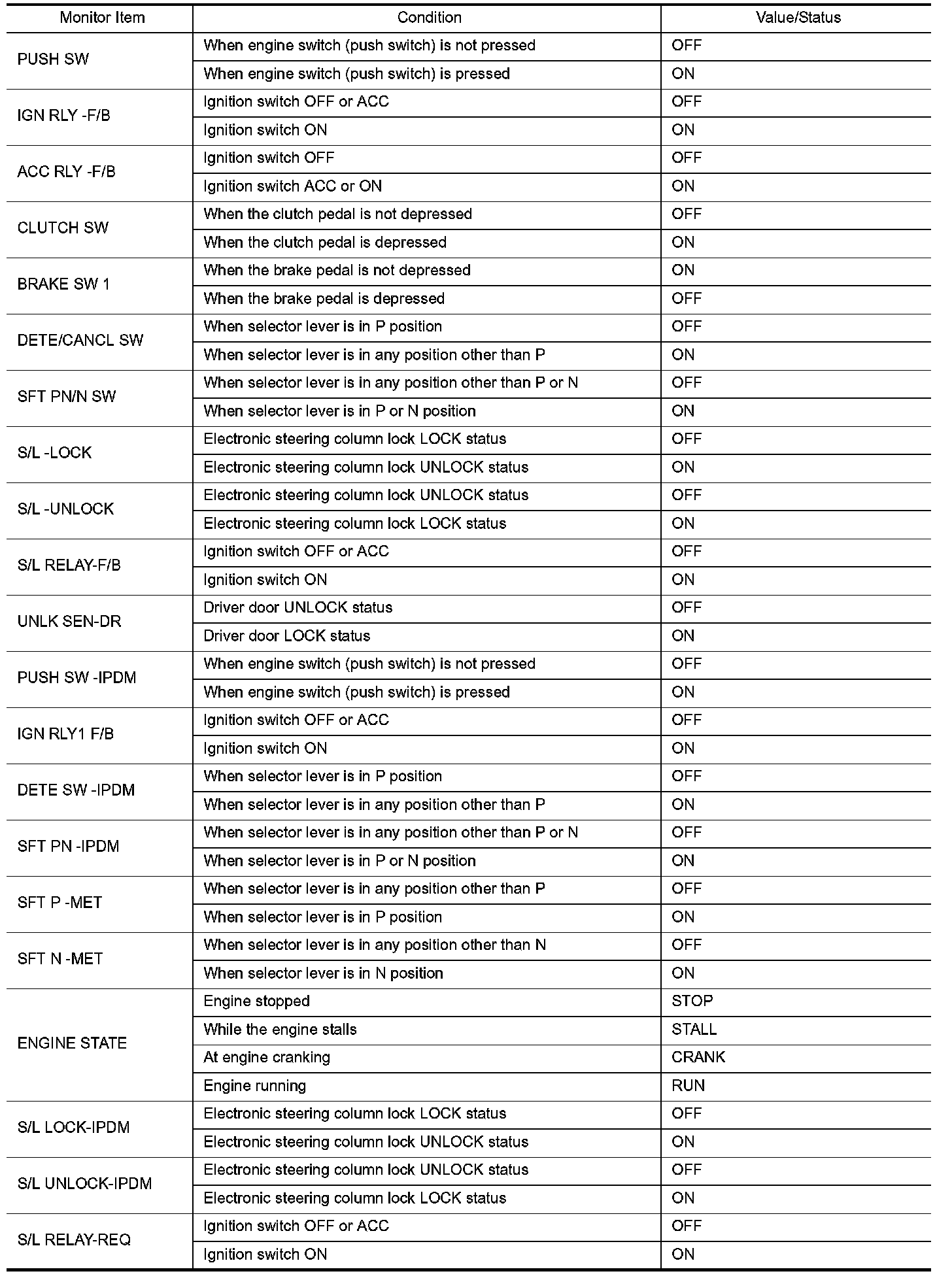

Terminals And Reference Values (Part 1):

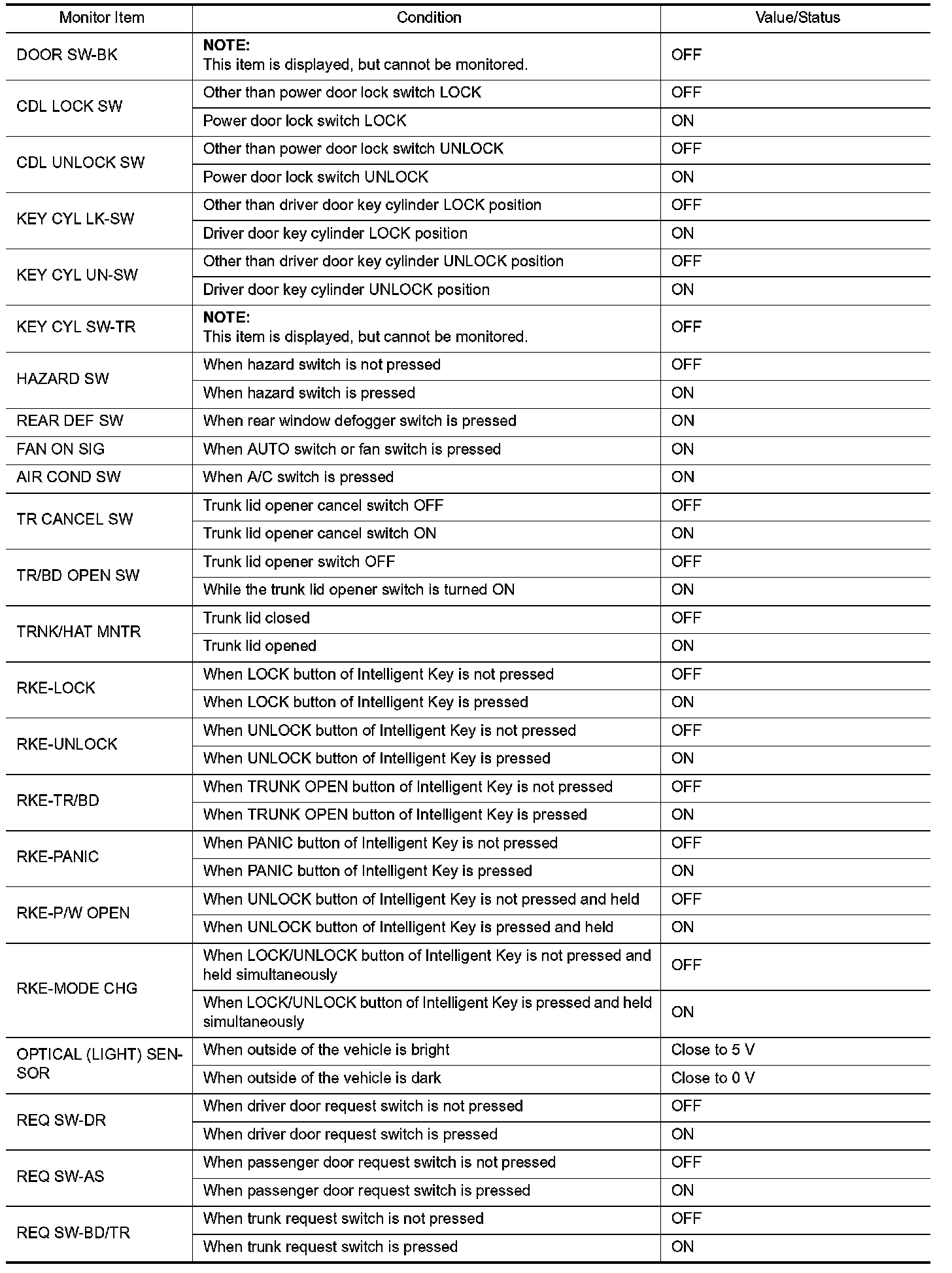

Terminals And Reference Values (Part 2):

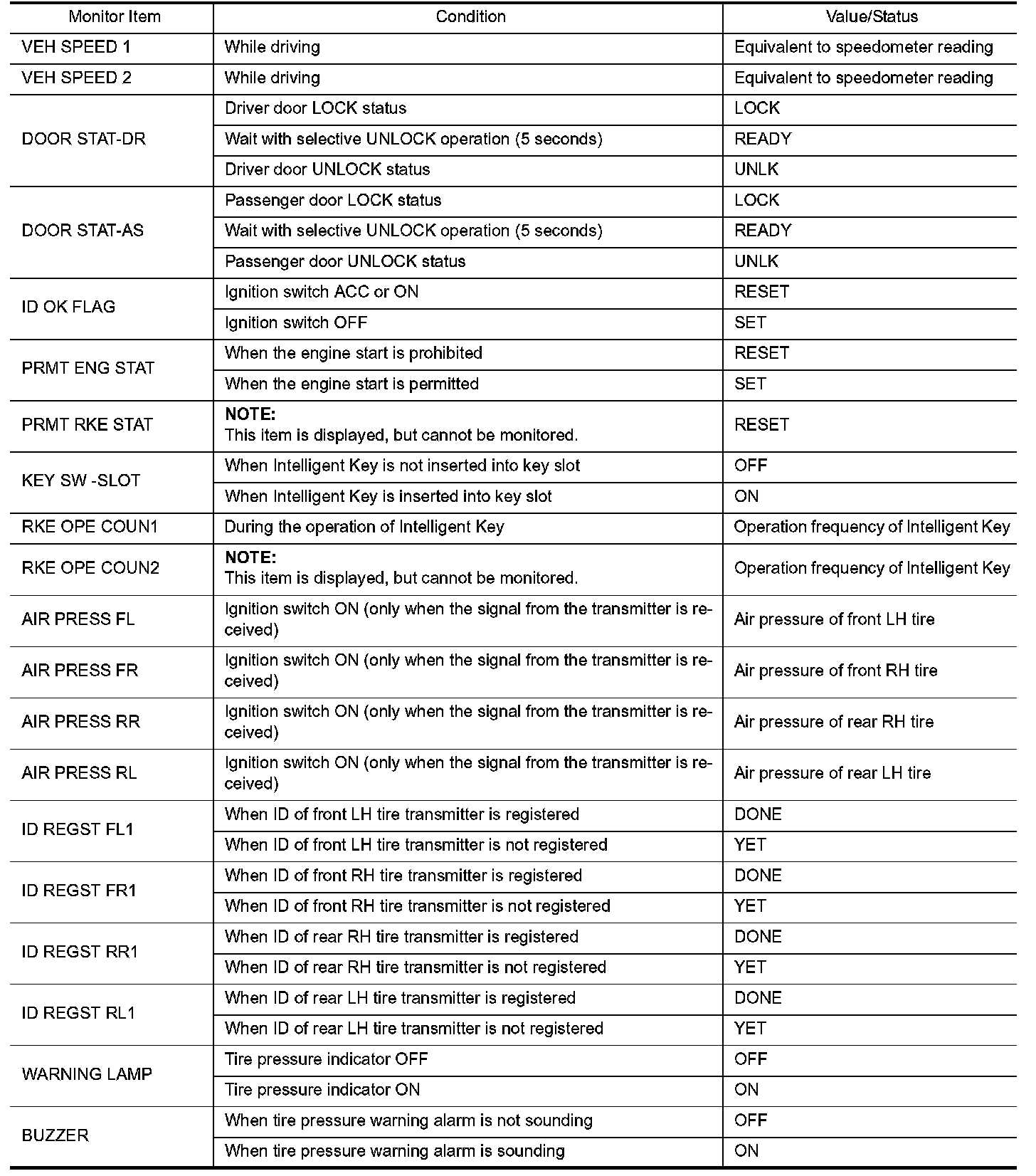

Terminals And Reference Values (Part 3):
Terminals And Reference Values (Part 4):
