Home >> Nissan-Datsun >> 2005 >> Altima L4-2.5L (QR25DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electric Load Sensor >> Testing and Inspection

Electric Load Sensor: Testing and Inspection

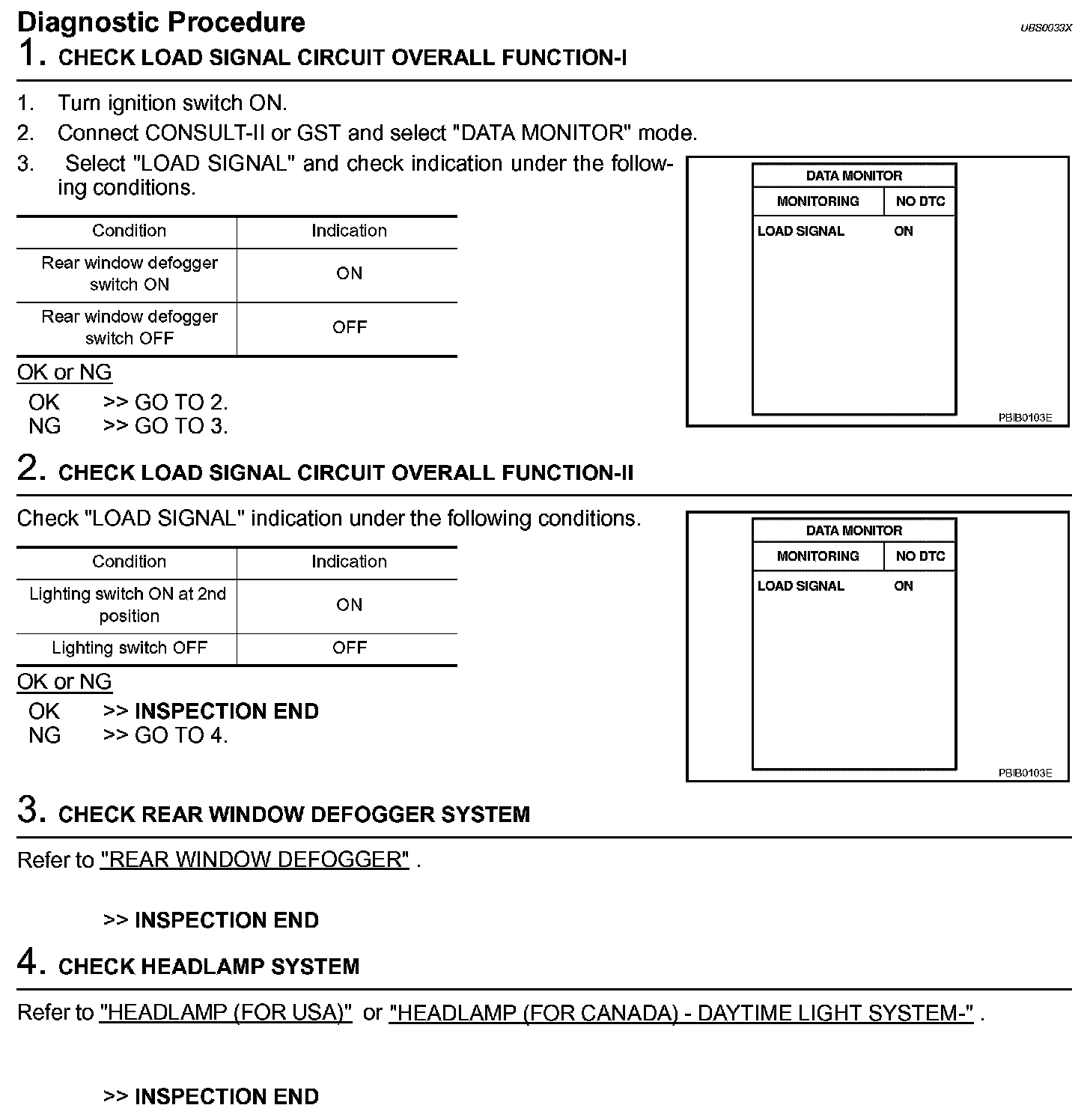

Diagnostic Procedure (Steps 1 - 4):
