Engine Cannot Be Started In "P" and "N" Position

2. Engine Cannot Be Started In "P" and "N" Position

SYMPTOM:
- Engine cannot be started with selector lever in "P" or "N" position.
- Engine can be started with selector lever in "D", "2", "1 " or "R" position.

1. CHECK PNP SWITCH CIRCUIT





With CONSULT-II
Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to PNP switch circuit?
Without CONSULT-II

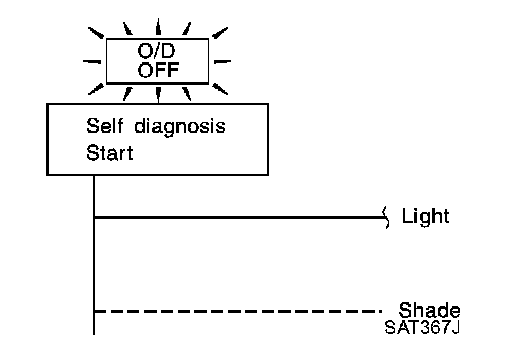

Does self-diagnosis show damage to PNP switch circuit?
Yes or No
Yes >> Check PNP switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH".
No >>GO TO 2.

2. CHECK PNP SWITCH INSPECTION

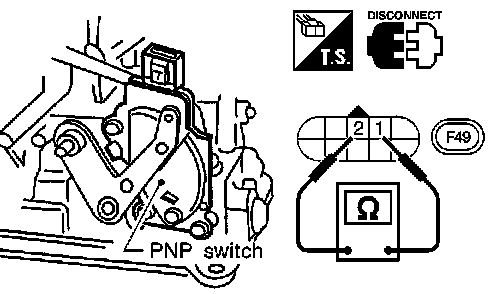

Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to "Diagnostic Procedure". P0705
OK or NG
OK >> GO TO 3. NG >> Repair or replace PNP switch.

3. CHECK STARTING SYSTEM
Check starting system. Testing and Inspection
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
