A/T Does Not Shift: D1->D2 or Does Not Kickdown: D4->D2

9. A/T Does Not Shift: D1 -> D2 Or Does Not Kickdown: D4 -> D2

SYMPTOM:
A/T does not shift from D1 to D2 at the specified speed.
A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed.

1. CHECK SYMPTOM
Are "7. Vehicle Does Not Creep Forward In D, 2 Or 1 Position" and "8. Vehicle Cannot Be Started From D1 " OK?
Yes or No
Yes >>GO TO 2.
No >> Go to "7. Vehicle Does Not creep Forward In "D", "2" Or "1" Position", "8. Vehicle Cannot Be Started From D1".

2. CHECK PNP SWITCH CIRCUIT
With CONSULT-II





Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to PNP switch circuit?
Without CONSULT-II

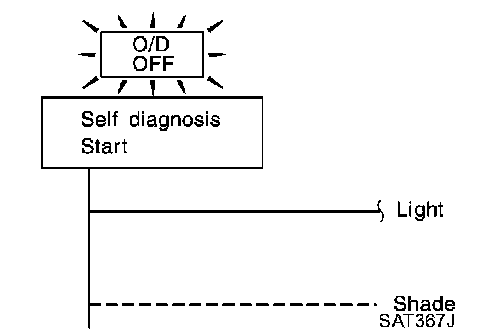

Does self-diagnosis show damage to PNP switch circuit?
Yes or No
Yes >> Check PNP switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH".
No >> GO TO 3.

3. CHECK VEHICLE SPEED SENSOR A/T AND CHECK VEHICLE SPEED SENSOR MTR CIRCUIT
Check vehicle speed sensor A/T (revolution sensor) and vehicle speed sensor MTR circuit. Refer to "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)", "DTC VHCL SPEED SEN MTR VEHICLE SPEED SENSOR MTR".
OK or NG
OK >>GO TO 4.
NG >> Repair or replace vehicle speed sensor A/T (revolution sensor) and vehicle speed sensor MTR circuits.

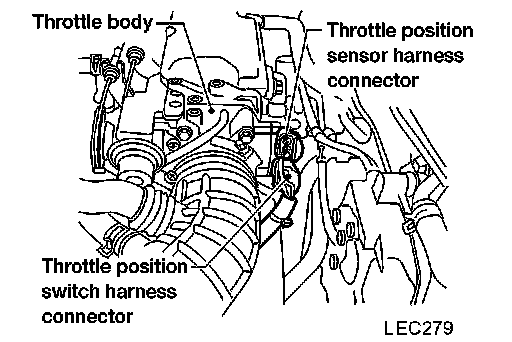

4. CHECK THROTTLE POSITION SENSOR





Check throttle position sensor.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace throttle position sensor.

5. CHECK A/T FLUID CONDITION





1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 6.
NG >>GO TO 8

6. DETECT MALFUNCTIONING ITEM
1. Remove control valve.
2. Check the following items:
- Shift valve A
- Shift solenoid valve A
- Pilot valve
- Pilot filter
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.

7. CHECK SYMPTOM
Check again.
OK or NG
OK >> INSPECTION END
NG >>
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

8. DETECT MALFUNCTIONING ITEM
1. Remove control valve.
2. Check the following items:
- Shift valve A
- Shift solenoid valve A
- Pilot valve
- Pilot filter
3. Disassemble A/T.
4. Check the following items:
- Servo piston assembly
- Brake band
- Oil pump assembly
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
