Shift Linkage: Service and Repair

STRIKING ROD OIL SEAL





1. Remove transaxle control rod from yoke.

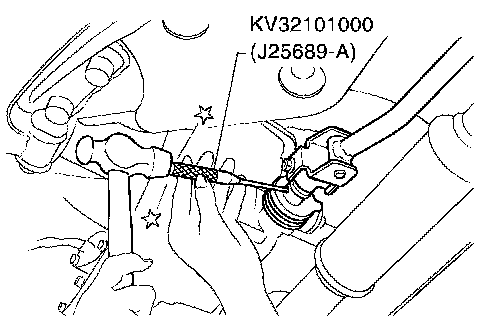

2. Remove retaining pin of yoke using Tool. Be careful not to damage boot.
3. Remove the boot.

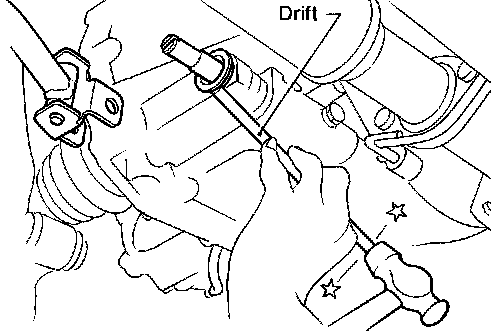

4. Remove striking rod oil seal with a suitable tool.

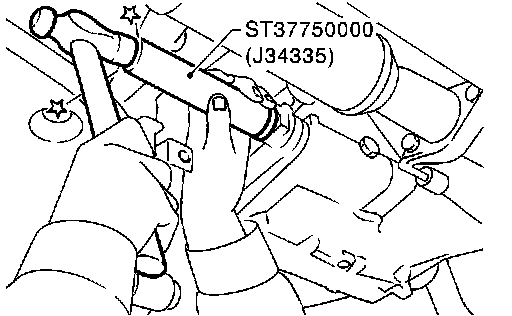

5. Install striking rod oil seal using Tool. Apply multi-purpose grease to seal lip of oil seal before installing.
6. Install the boot.
7. Install yoke and retaining pin.
8. Connect the transaxle control rod to the yoke.
