Shift Control

Inspection

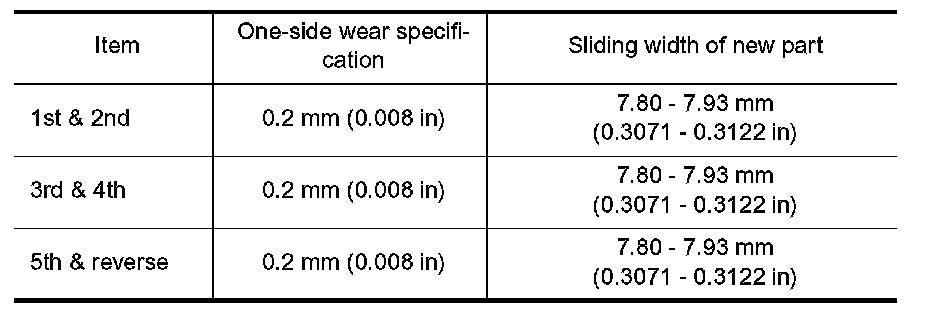

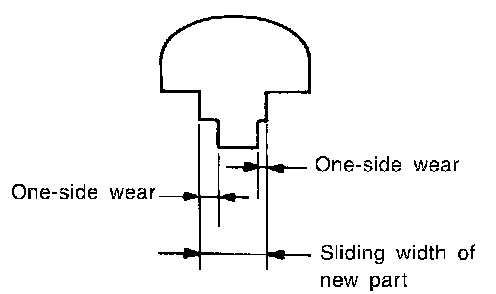

- Check if the width of shift fork hook (sliding area with coupling sleeve) is within allowable specification below.

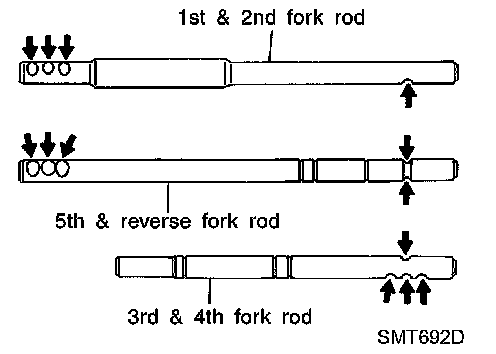

- Check if shift check groove of fork rod or 5th & reverse check groove is worn, or has any other abnormalities.
