Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Application and ID >> Available Adjusting Shims

Available Adjusting Shims

Available Adjusting Shims

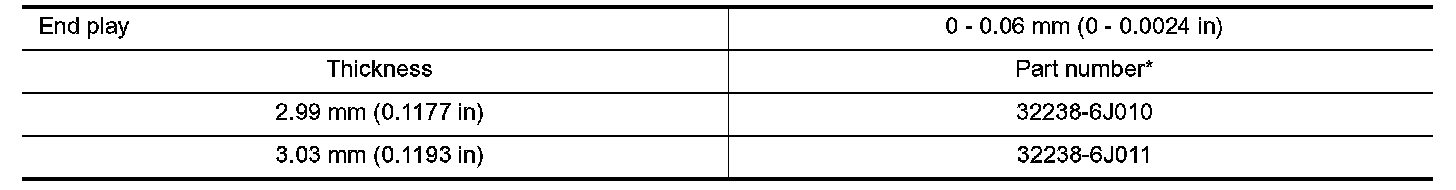

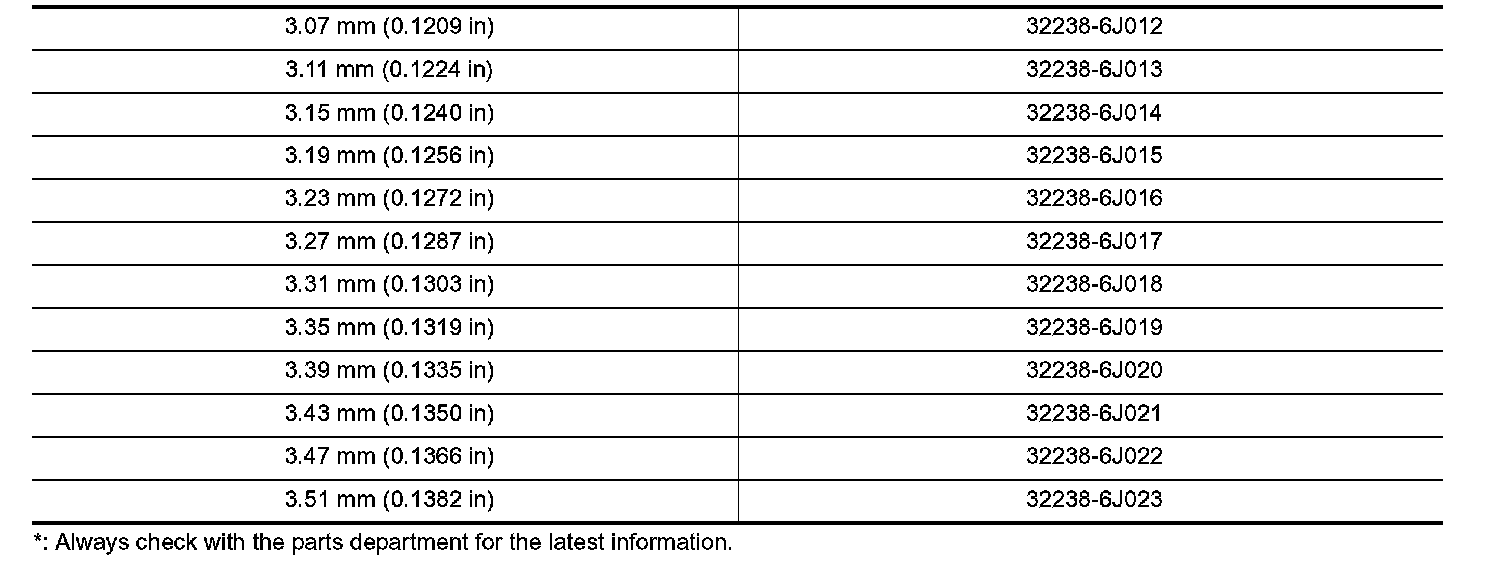

INPUT SHAFT REAR BEARING ADJUSTING SHIM

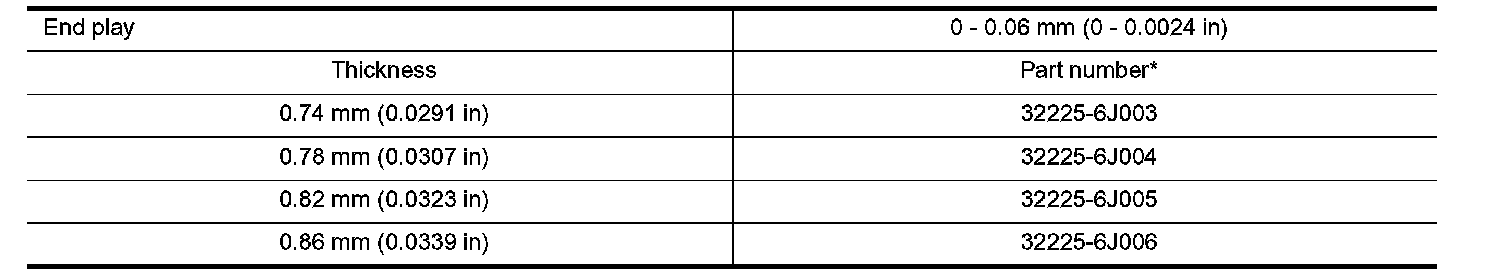

MAINSHAFT ADJUSTING SHIM

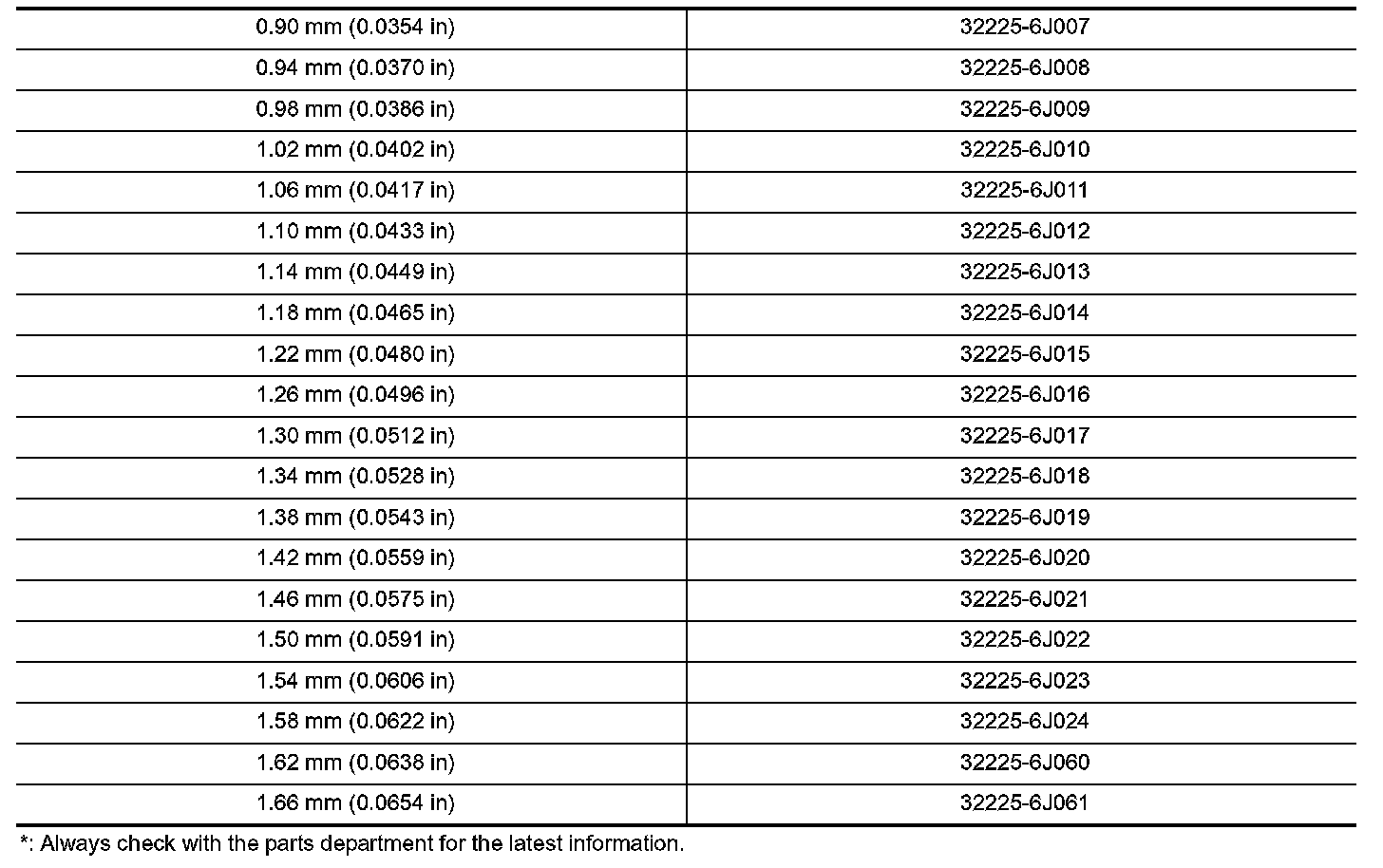

Part 1:




Part 2:





MAINSHAFT REAR BEARING ADJUSTING SHIM
