Grounding Point: Locations

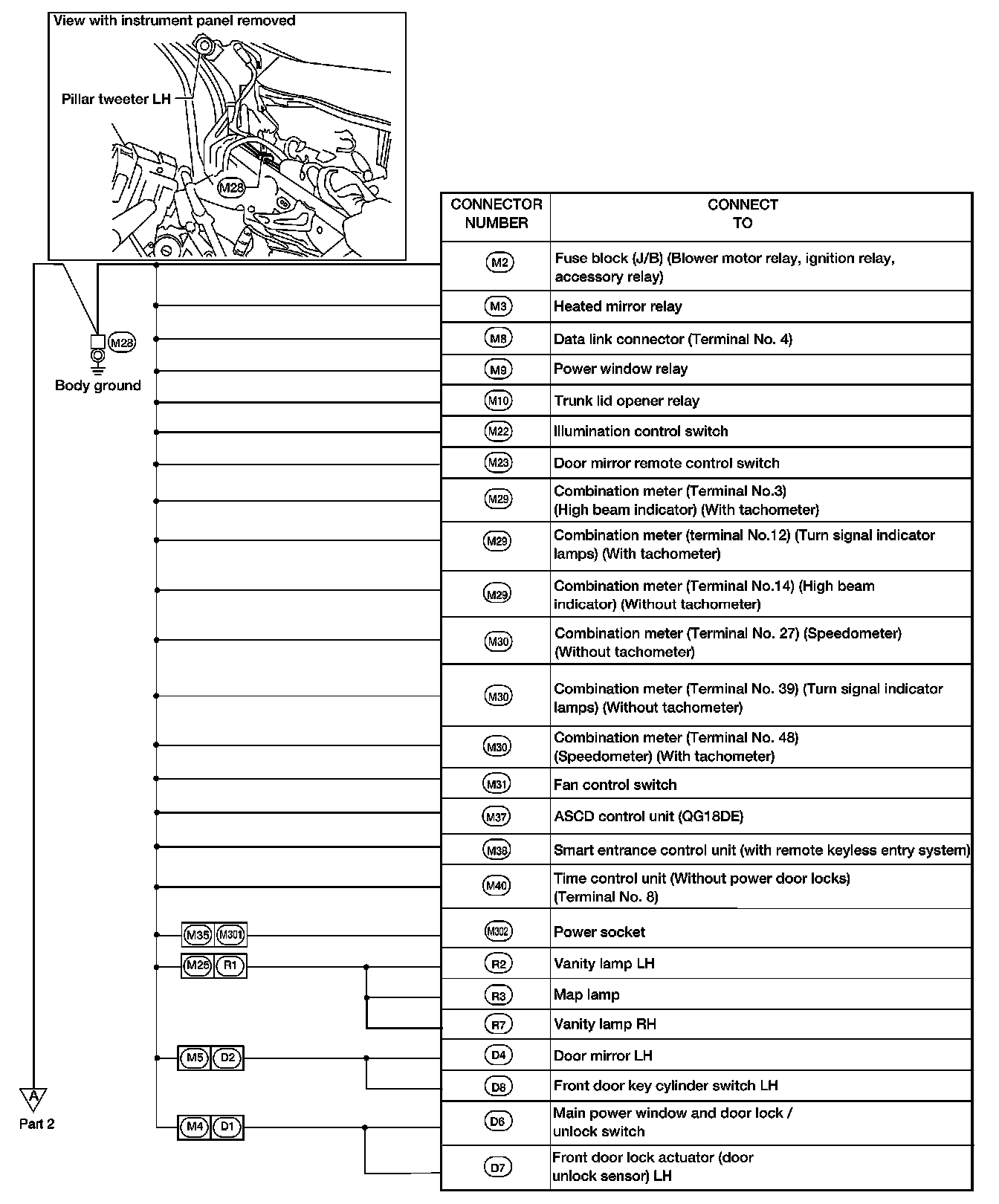

Main Harness Part 1:

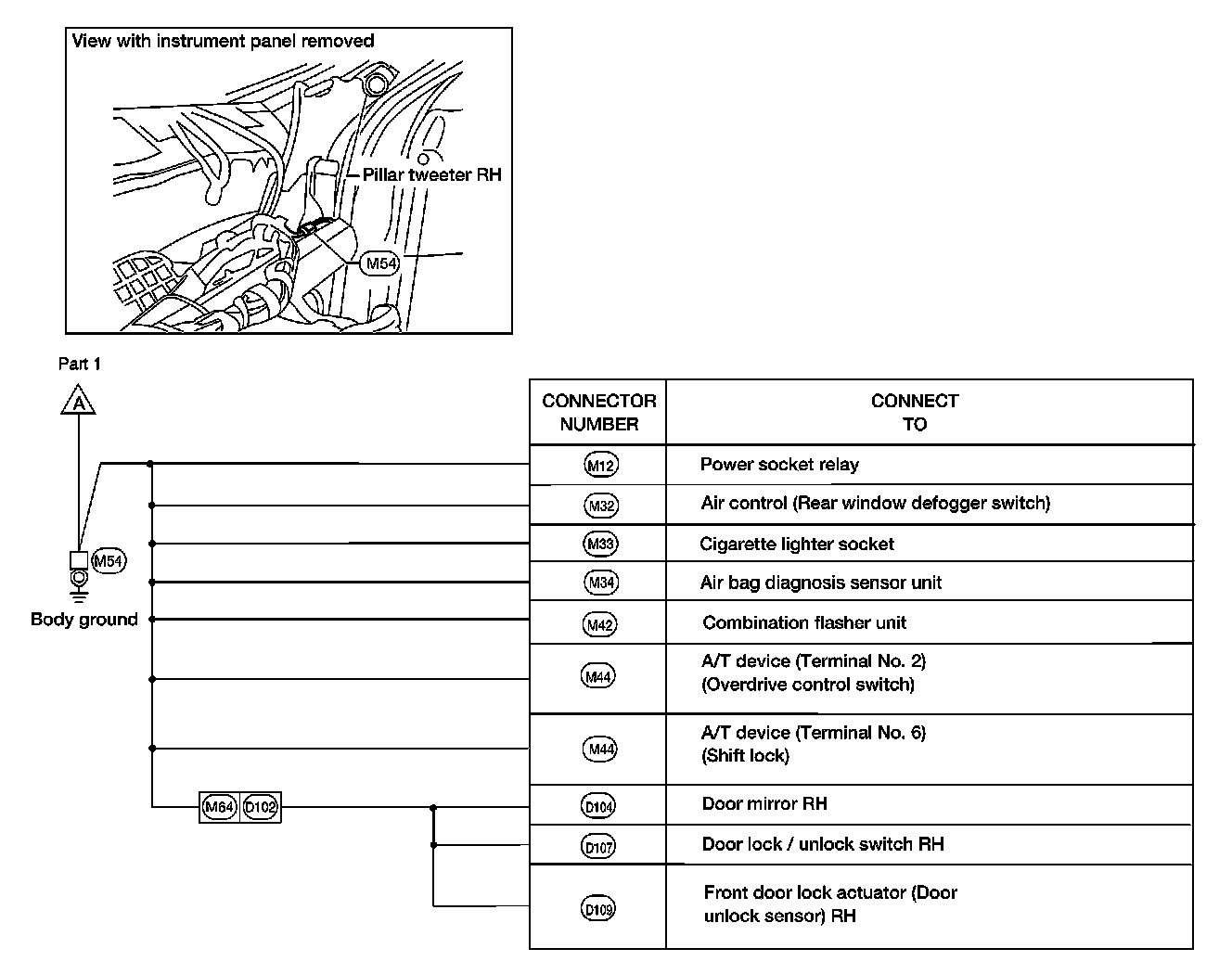

Main Harness Part 2:

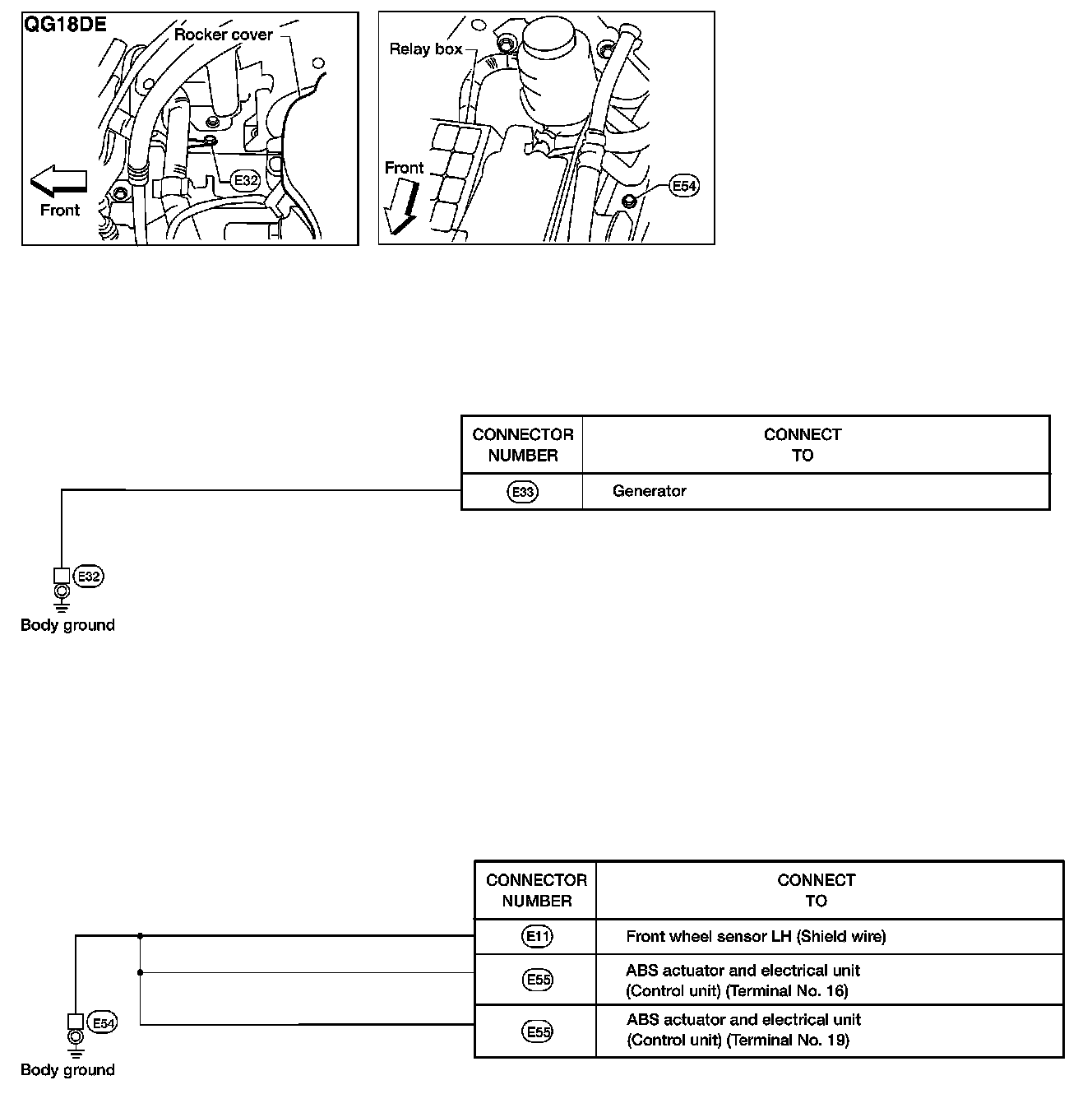

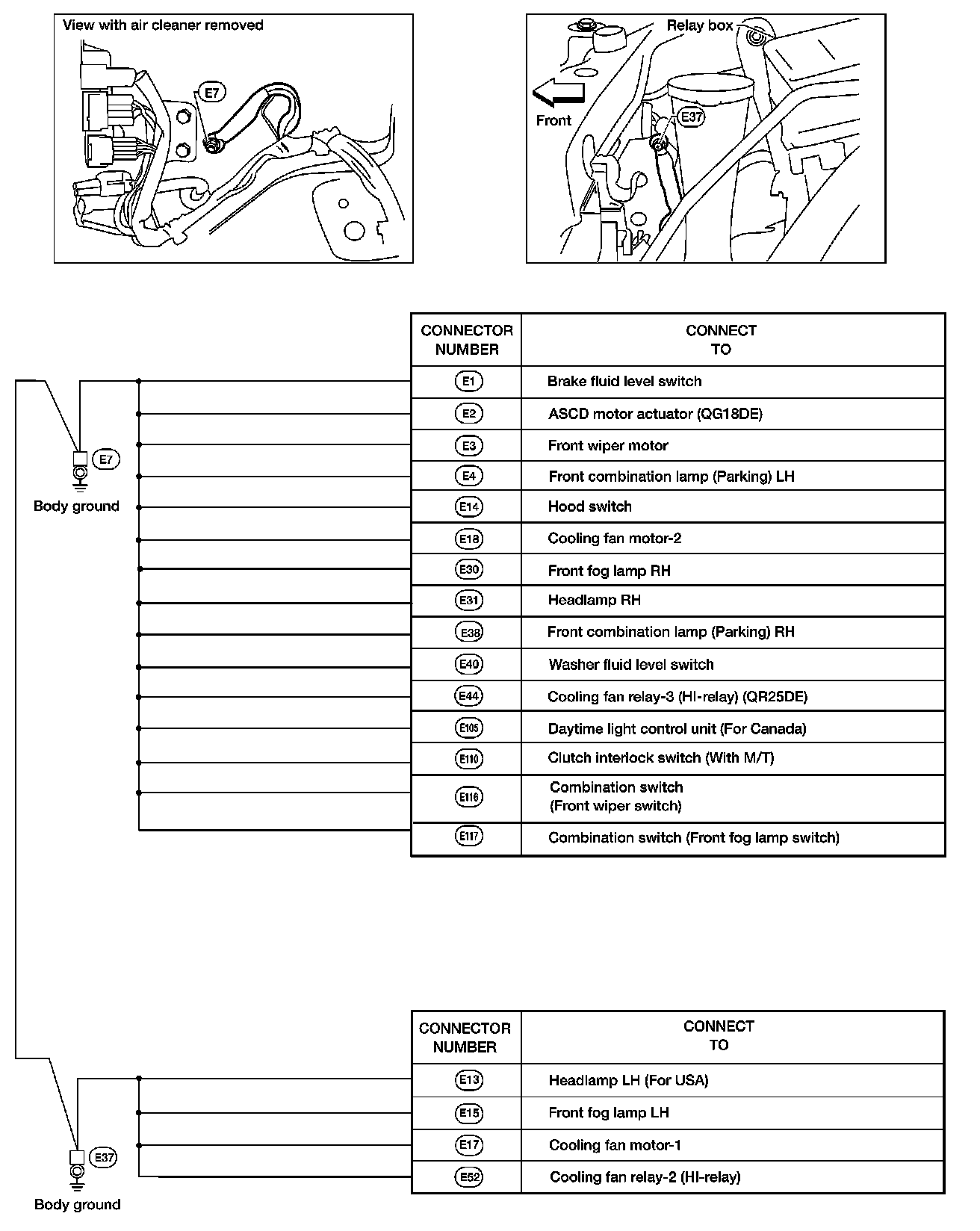

Engine Room Harness Part 1:

Engine Room Harness Part 2:

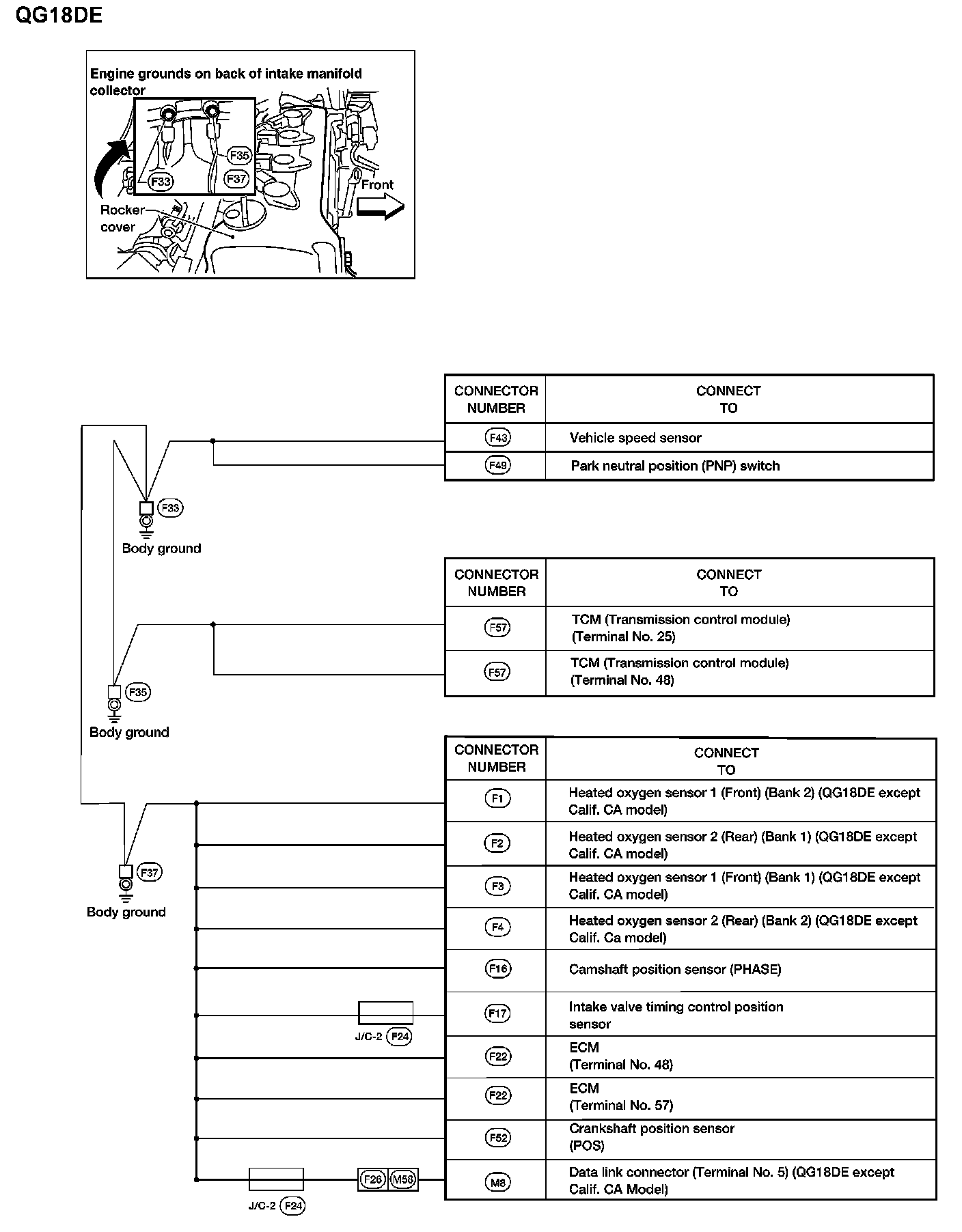

Engine Control Harness Part 1:

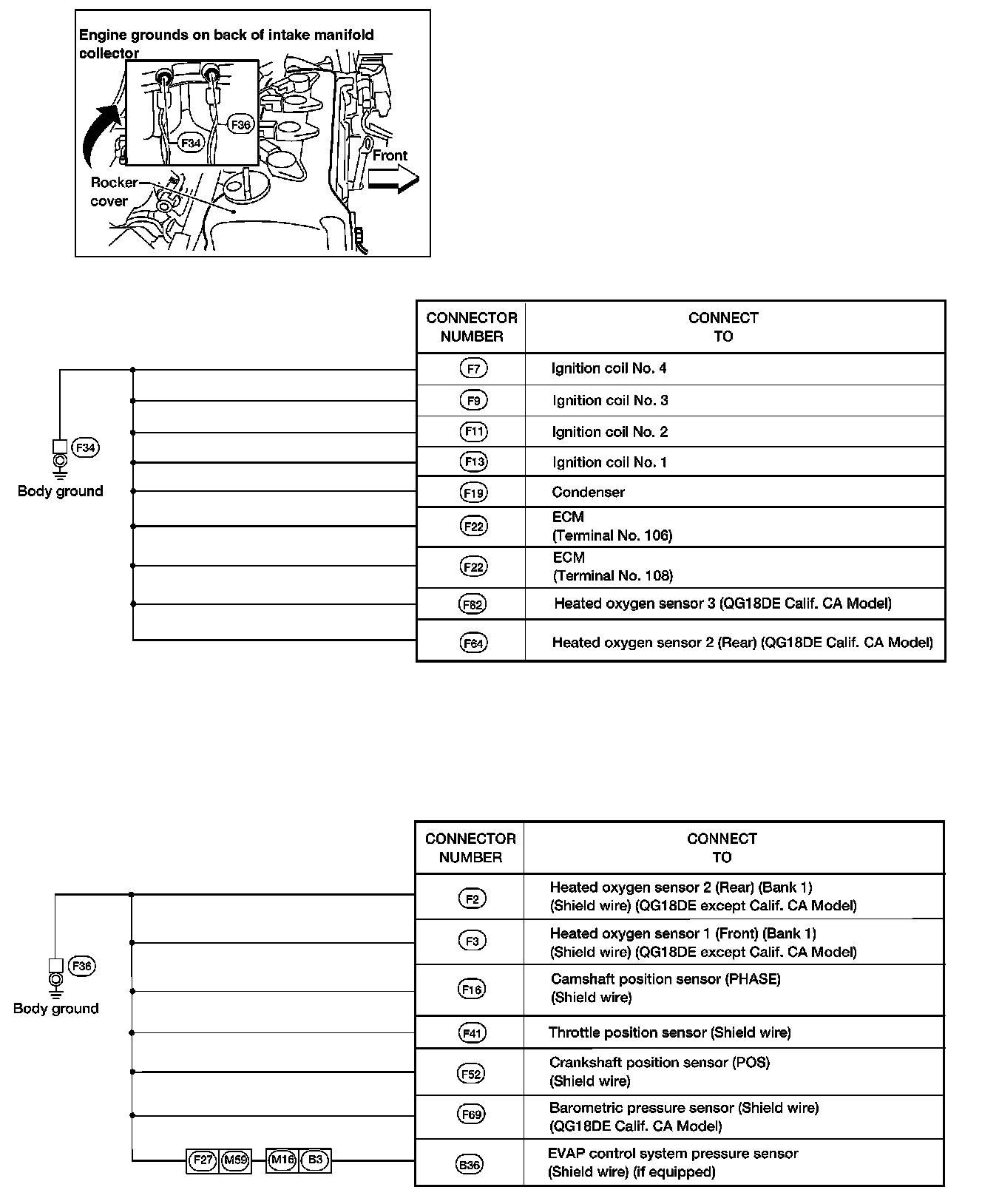

Engine Control Harness Part 2:

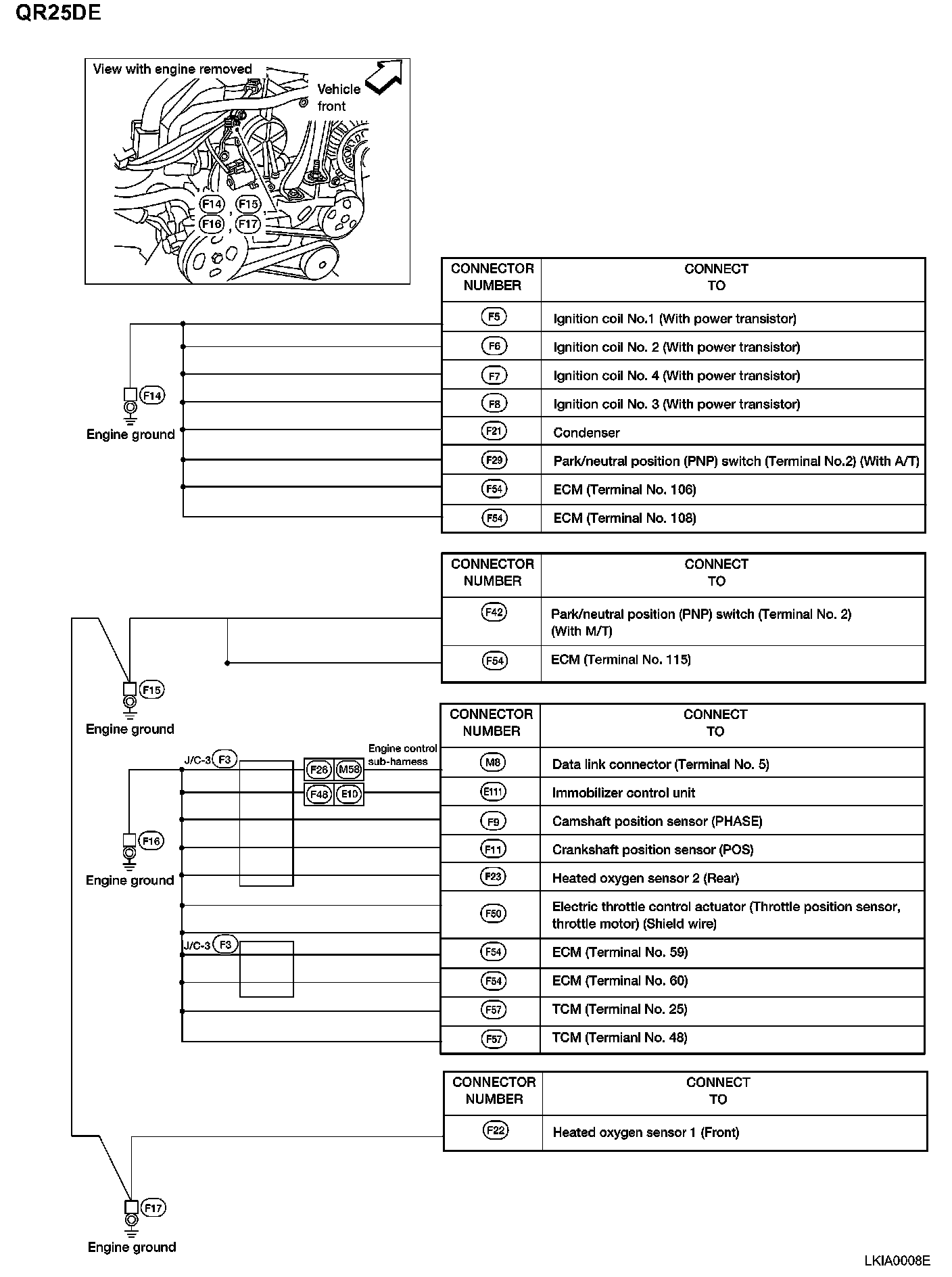

Engine Control Harness Part 3:

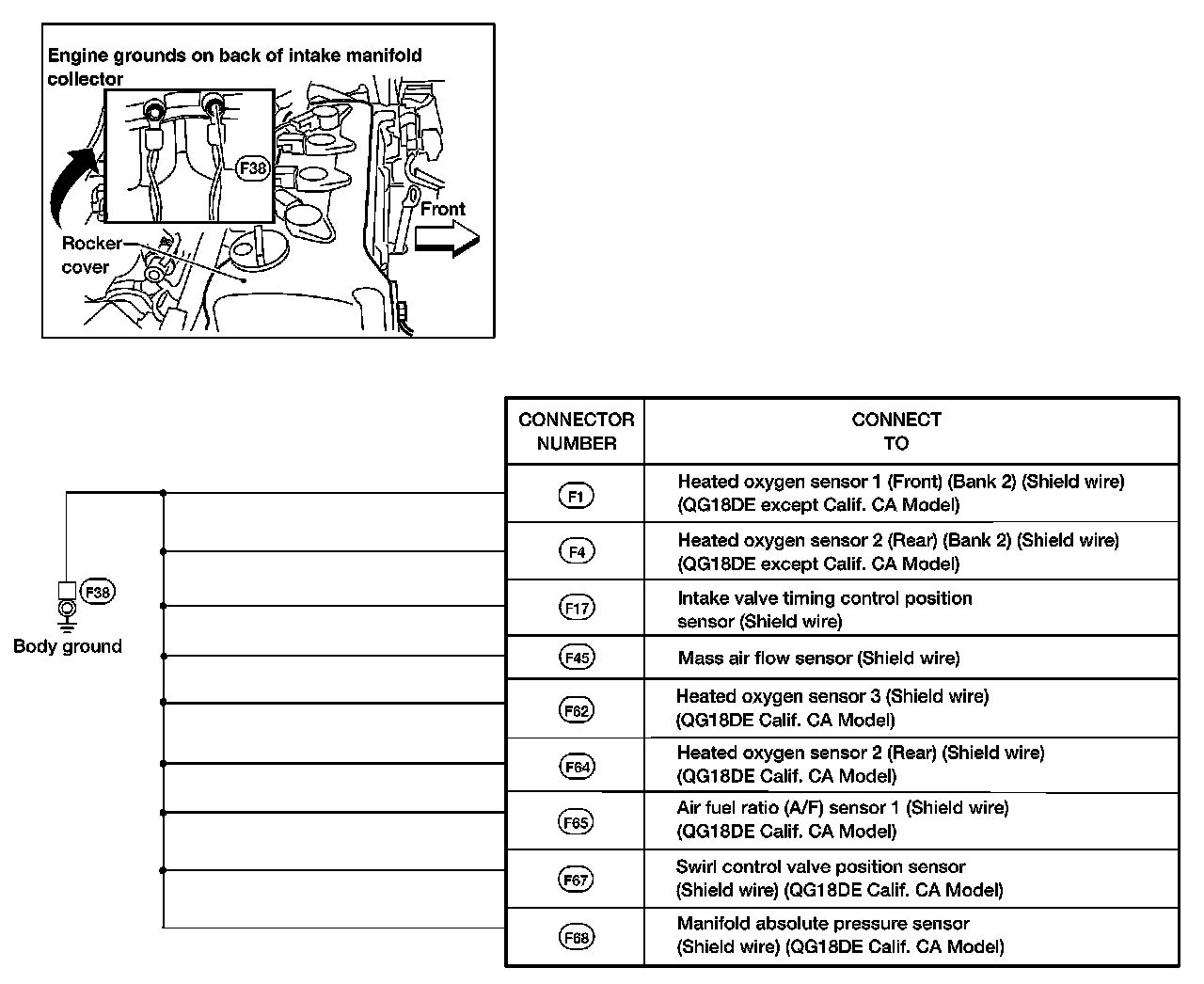

Engine Control Harness:

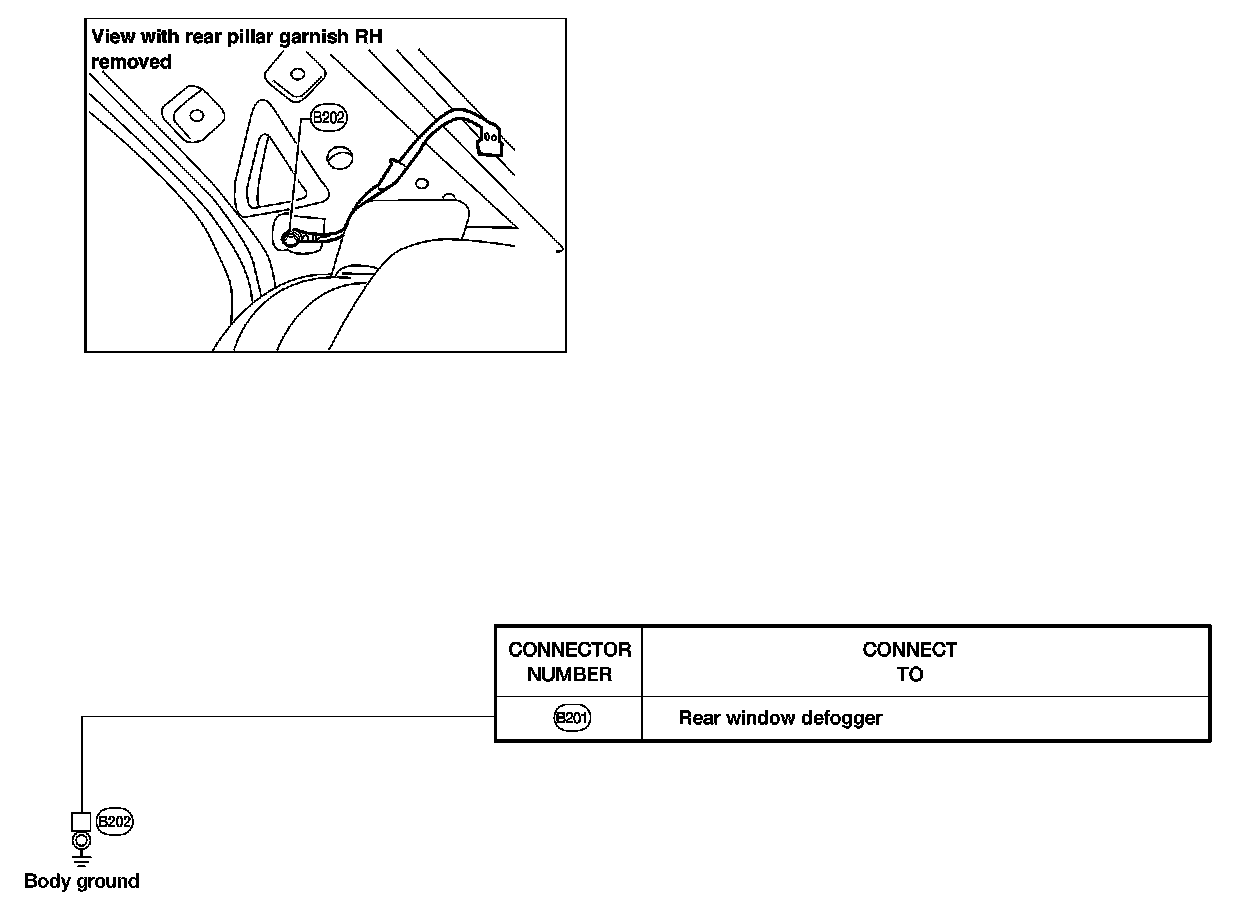

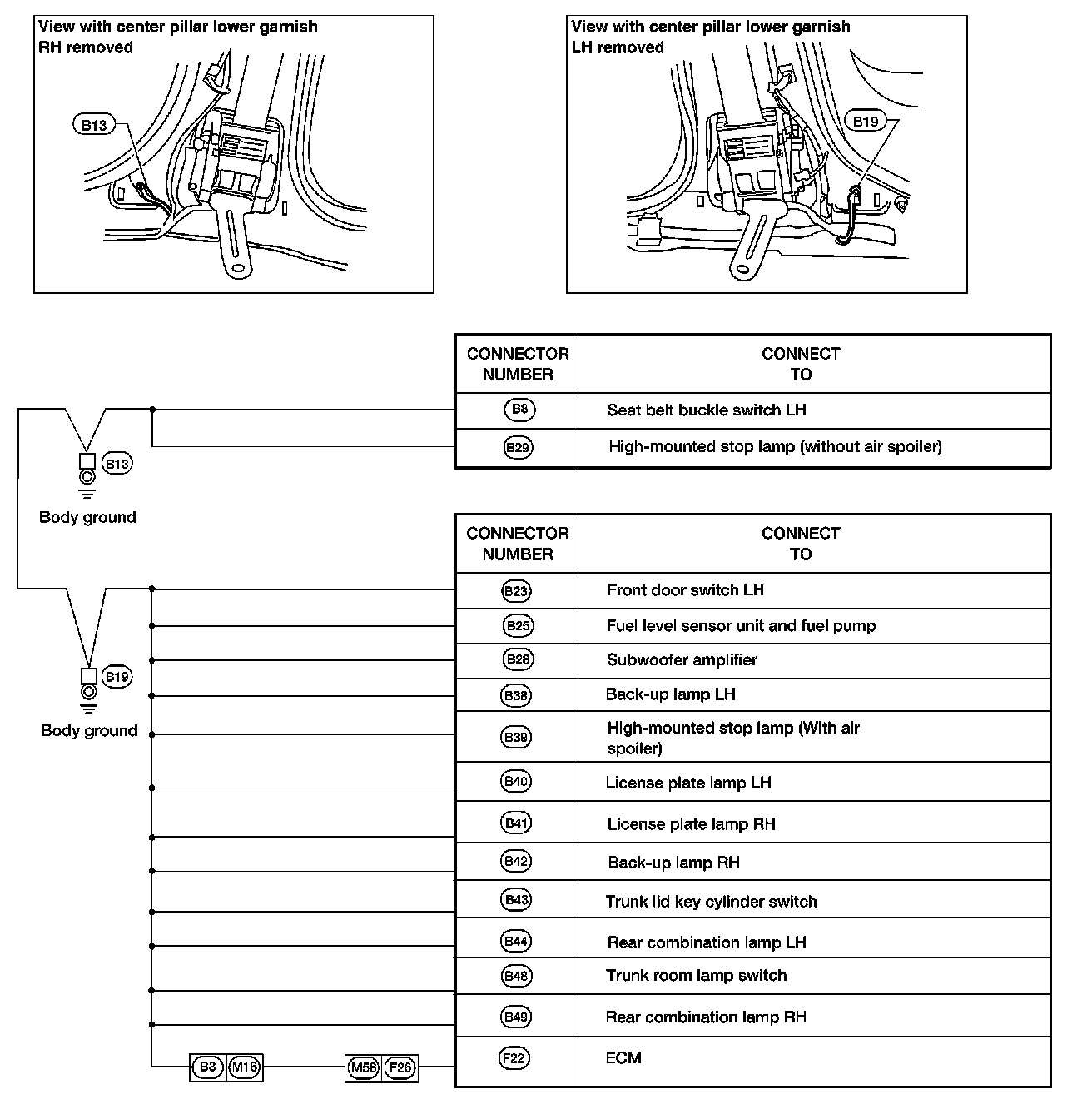

Body Harness:

Body No.2 Harness:

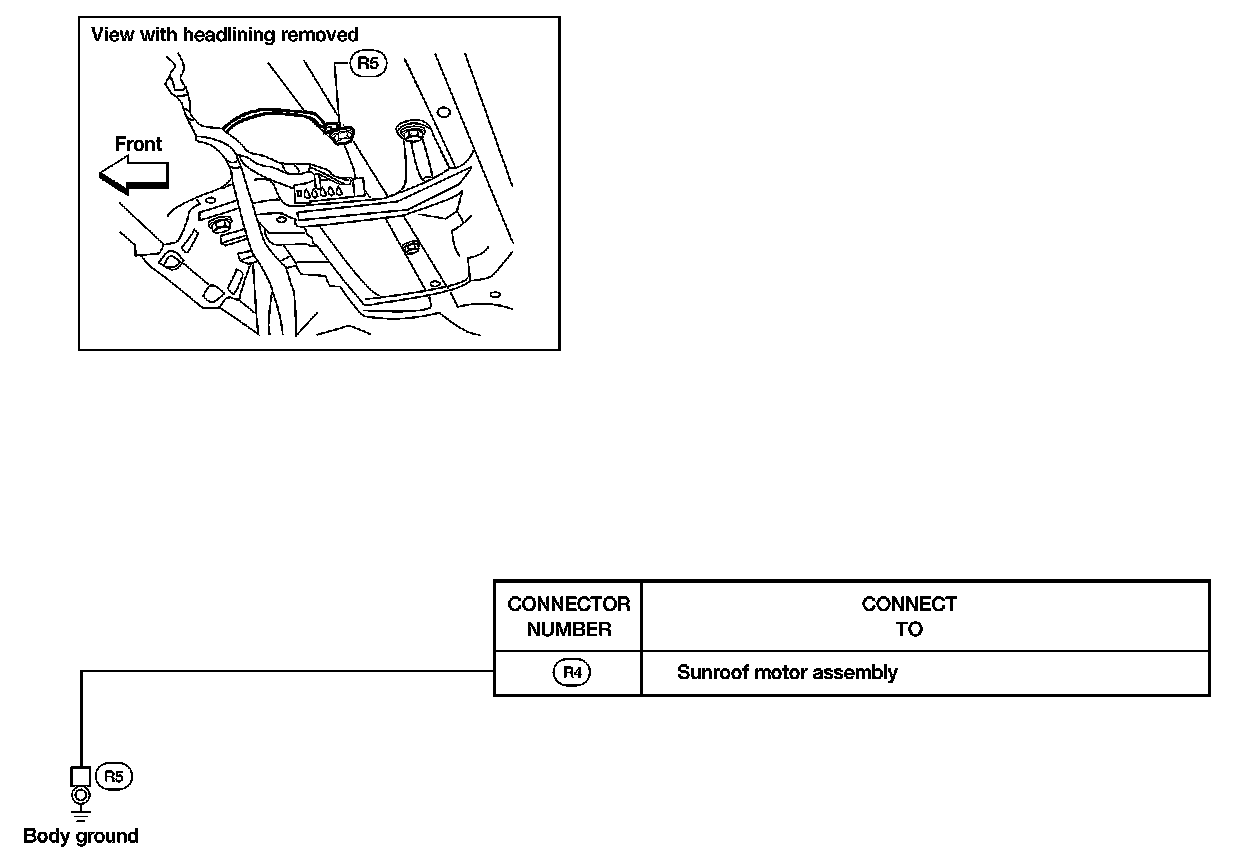

Room Harness:
