Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications >> Engine Assembly and Outer Components

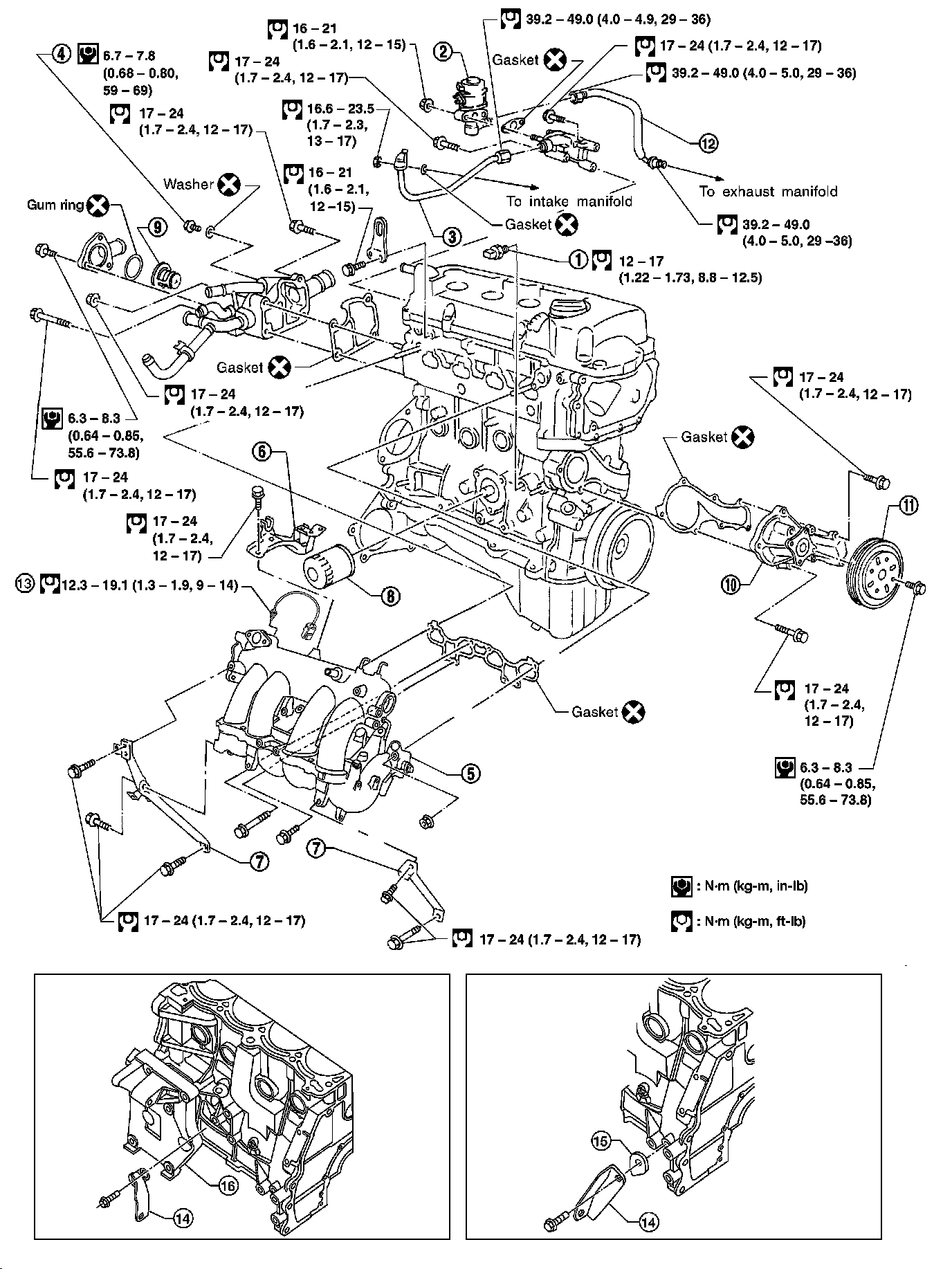

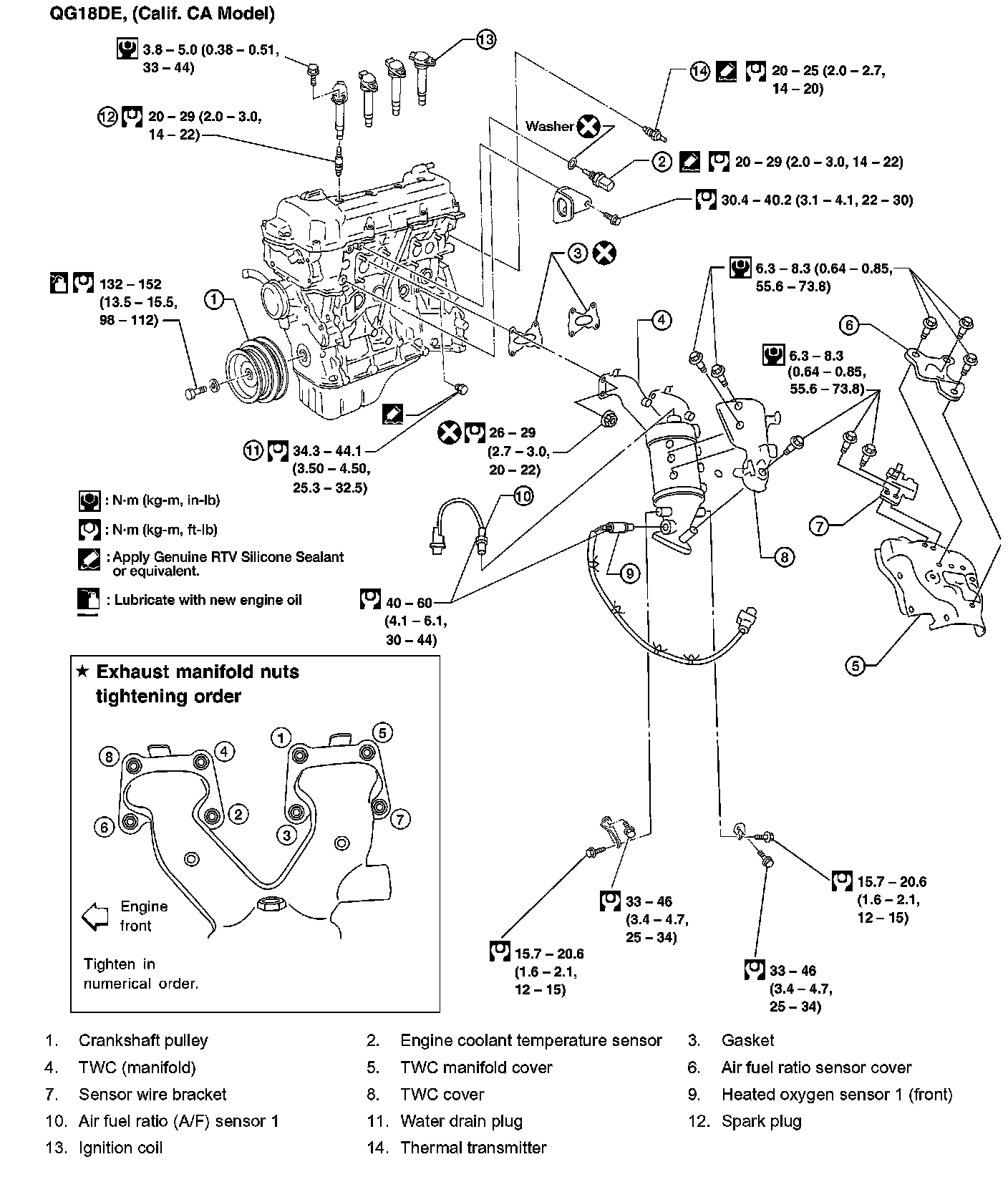

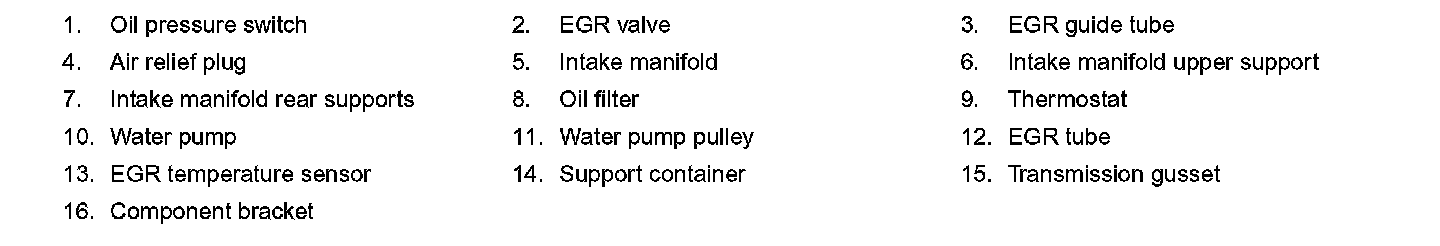

Engine Assembly and Outer Components





1 of 4





2 of 4





3 of 4





4 of 4
