Radiator Cooling Fan Motor Relay: Locations

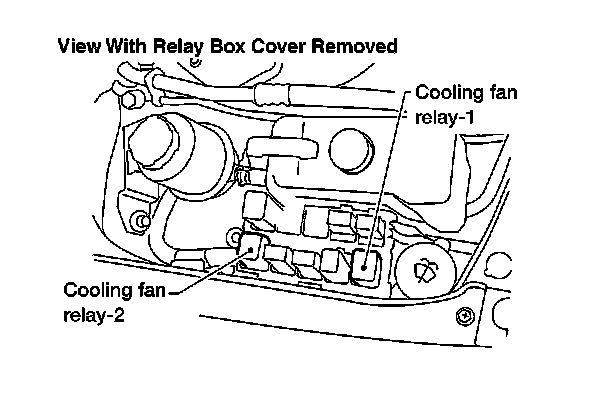

Cooling Fan Relay-1 / Cooling Fan Relay-2:



Engine Control Component Parts Location Part 1:



Engine Compartment Component Locations Overview:
