Large Shock. "N"->"R" Position

5. Large Shock. "N" -> "R" Position

SYMPTOM: There is large shock when changing from "N" to "R" position.

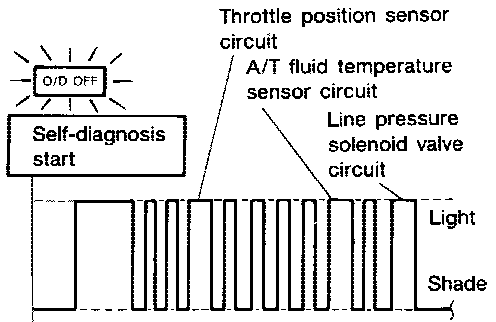

1. CHECK SELF-DIAGNOSTIC RESULTS





Does self-diagnosis show damage to A/T fluid temperature sensor, line pressure solenoid valve or throttle position sensor circuit?
Yes or No
Yes >> Check damaged circuit. Refer to "DTC P0710 A/T FLUID TEMPERATURE SENSOR CIRCUIT", "DTC P0745 LINE PRESSURE SOLENOID VALVE" or "DTC P1705 THROTTLE POSITION SENSOR"
No >>GO TO 2.

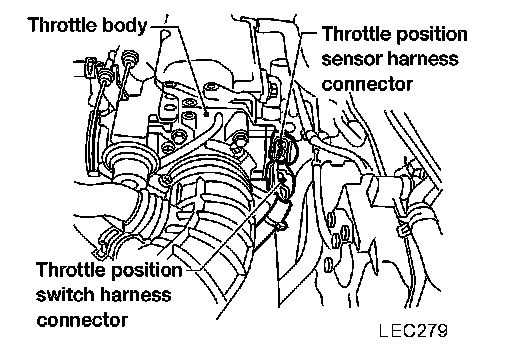

2. CHECK THROTTLE POSITION SENSOR





Check throttle position sensor.
OK or NG
OK >> GO TO 3.
NG >>
Repair or replace throttle position sensor.

3. CHECK LINE PRESSURE





Check line pressure at idle with selector lever in "D" position.
OK or NG
OK >>GO TO 4.
NG >>
1. Remove control valve assembly. Refer to "REMOVAL".
2. Check the following items:
- Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
- Line pressure solenoid valve

4. CHECK SYMPTOM
Check again.
OK or NG
OK >> INSPECTION END
NG >>
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
