A/T Does Not Shift: 2-1, When Selector Lever 2-1 Position

19. A/T Does Not Shift: 2(2) - 1(1), When Selector Lever "2" -> "1" Position

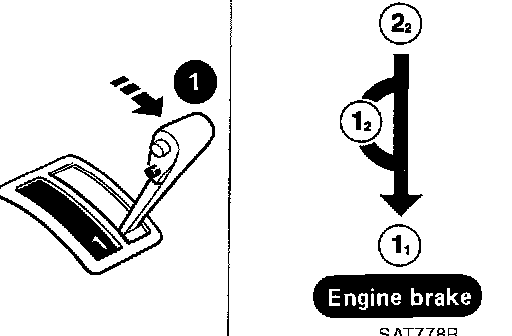

SYMPTOM: A/T does not shift from 2(2) to 1(1) when changing selector lever from "2" to "1" position.

1. CHECK PNP SWITCH CIRCUIT





With CONSULT-II
Does "TCM INPUT SIGNALS" in "DATA MONITOR" show damage to PNP switch circuit?

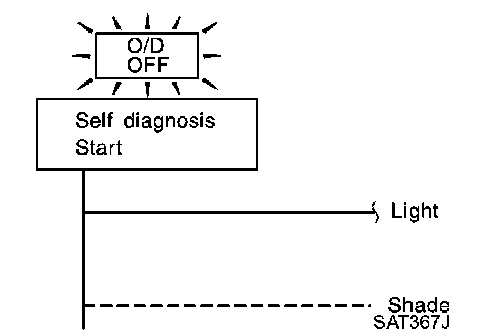

Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Yes or No
Yes >> Check PNP switch circuit. Refer to "DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH".
No >>GO TO 2.

2. CHECK SYMPTOM





Check again.
OK or NG
OK >> INSPECTION END
NG >>
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
