Shift Schedules and Pressures


Shift Schedule

VEHICLE SPEED WHEN SHIFTING GEARS

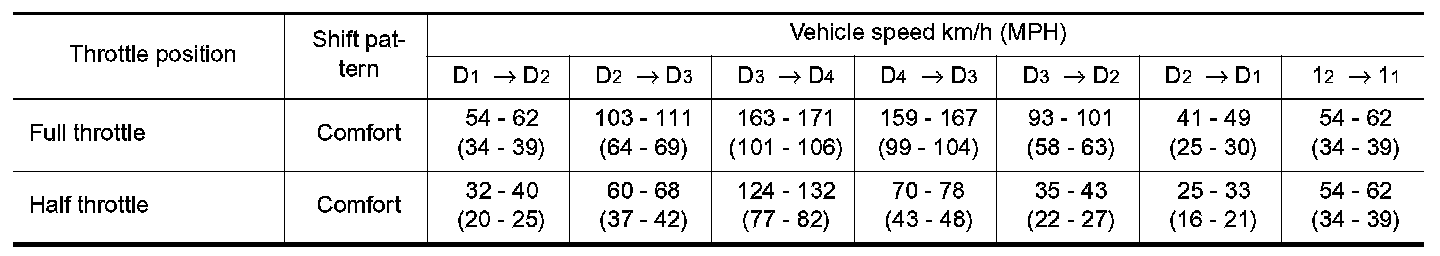

QG18DE (Calif. CA Model)

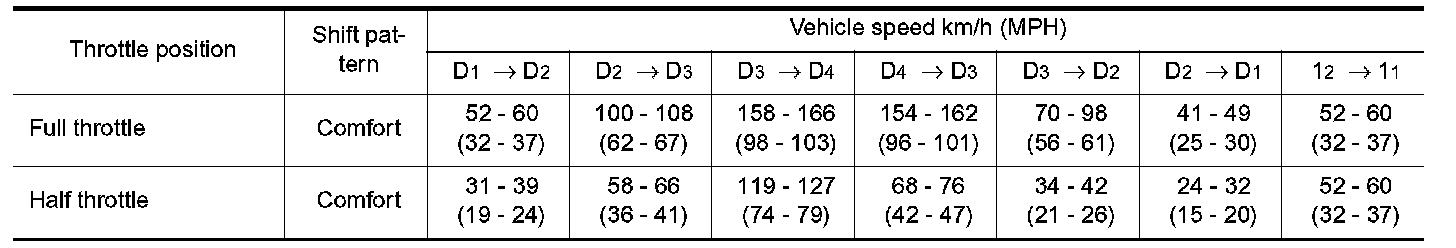

QG18DE (Except Calif. CA Model)

VEHICLE SPEED WHEN PERFORMING LOCK-UP

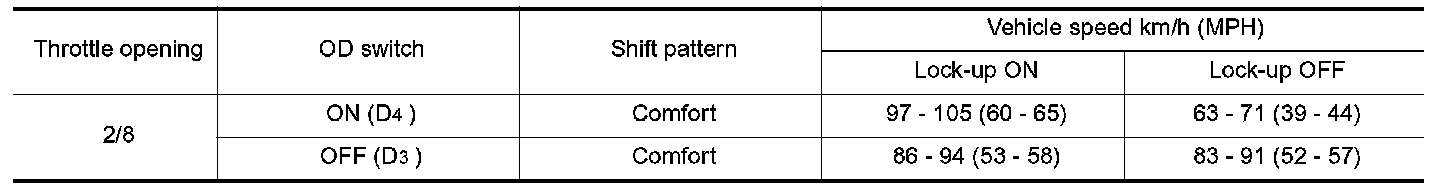

QG18DE (Calif. CA Model)





QG18DE (Except Calif. CA Model)

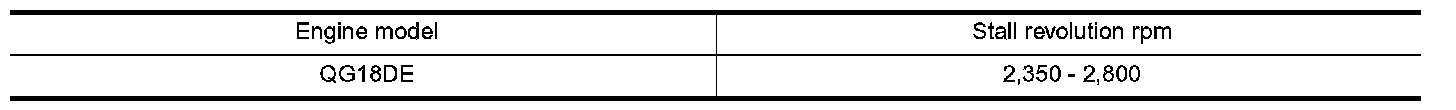

Stall Revolution

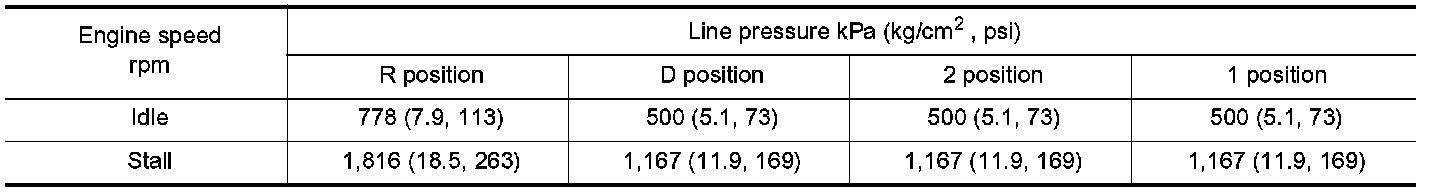

Line Pressure
