Nissan-Datsun
>>
2002
>>
Sentra CA (Clean Air) L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Emission Control Systems
>>
Evaporative Vapor Pressure Sensor
>>
Locations

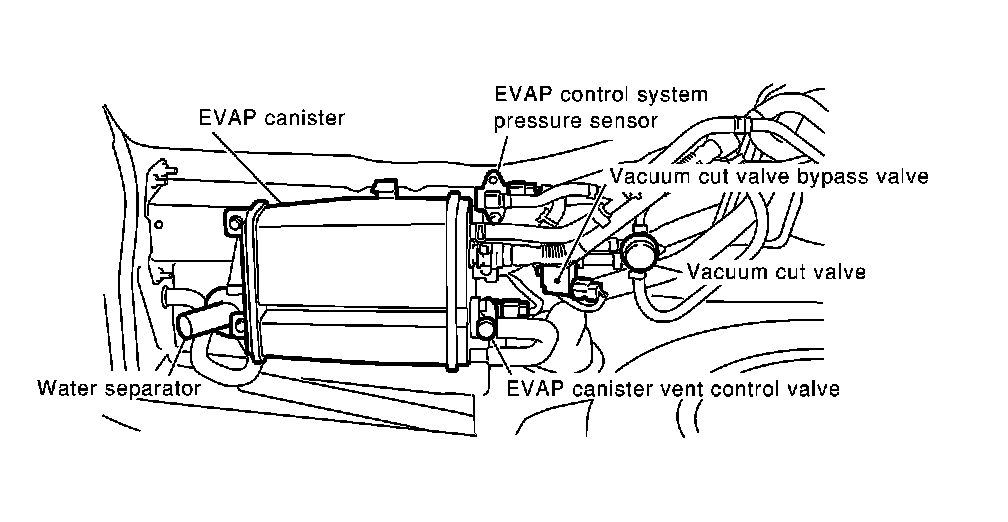

Evaporative Vapor Pressure Sensor: Locations
EVAP Canister / Water Separator / EVAP Control System Pressure Sensor / Vacuum Cut Valve Bypass Valve / Vacuum Cut Valve / EVAP Canister Vent Control Control Valve:
