Sensor Reference Graphs In Data Monitor Mode

Major Sensor Reference Graph in Data Monitor Mode
The following are the major sensor reference graphs in "DATA MONITOR" mode.

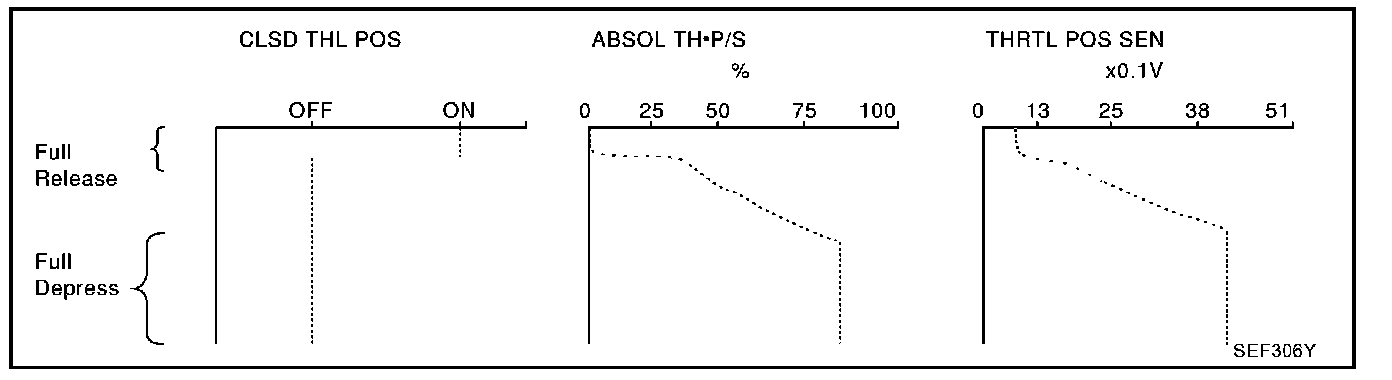

THRTL POS SEN, ABSOL TH-P/S, CLSD THL POS
Shown is the data for "THRTL POS SEN", "ABSOL TH-P/S" and "CLSD THL POS" when depressing the accelerator pedal with the ignition switch "ON".

The signal of "THRTL POS SEN" and "ABSOL TH-P/S" should rise gradually without any intermittent drop or rise after "CLSD THL POS" is changed from "ON" to "OFF".

Part 1:

Part 2:

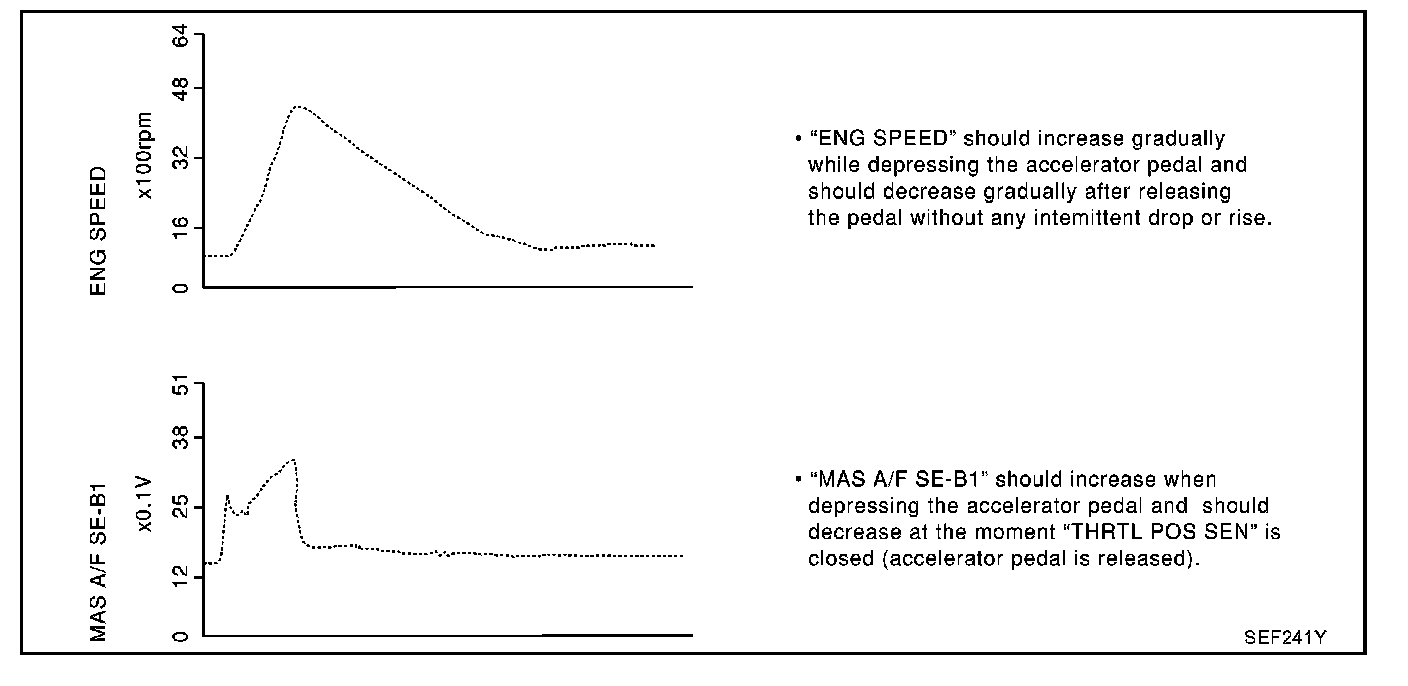

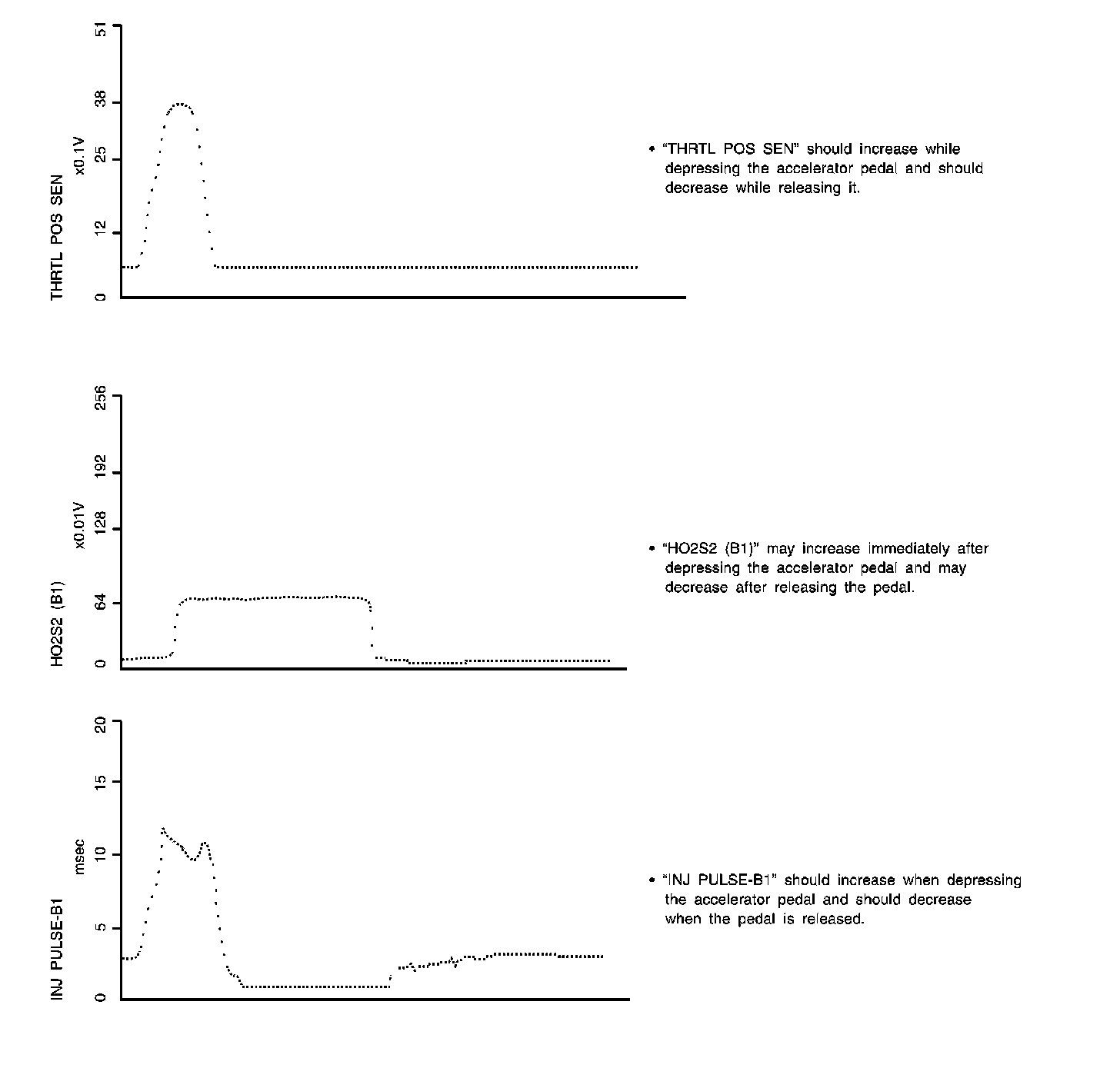

ENG SPEED, MAS A/F SE-B1, THRTL POS SEN, HO2S2 (B1), INJ PULSE-B1
Shown is the data for "ENG SPEED", "MAS A/F SE-B1", "THRTL POS SEN", "HO2S2 (B1/B2)" and "INJ F PULSE" when revving engine quickly up to 4,800 rpm under no load after warming up engine to normal operating temperature.

Each value is for reference, the exact value may vary.
