Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Power Steering Pressure Switch >> Testing and Inspection >> Symptom Related Diagnostic Procedures

Symptom Related Diagnostic Procedures

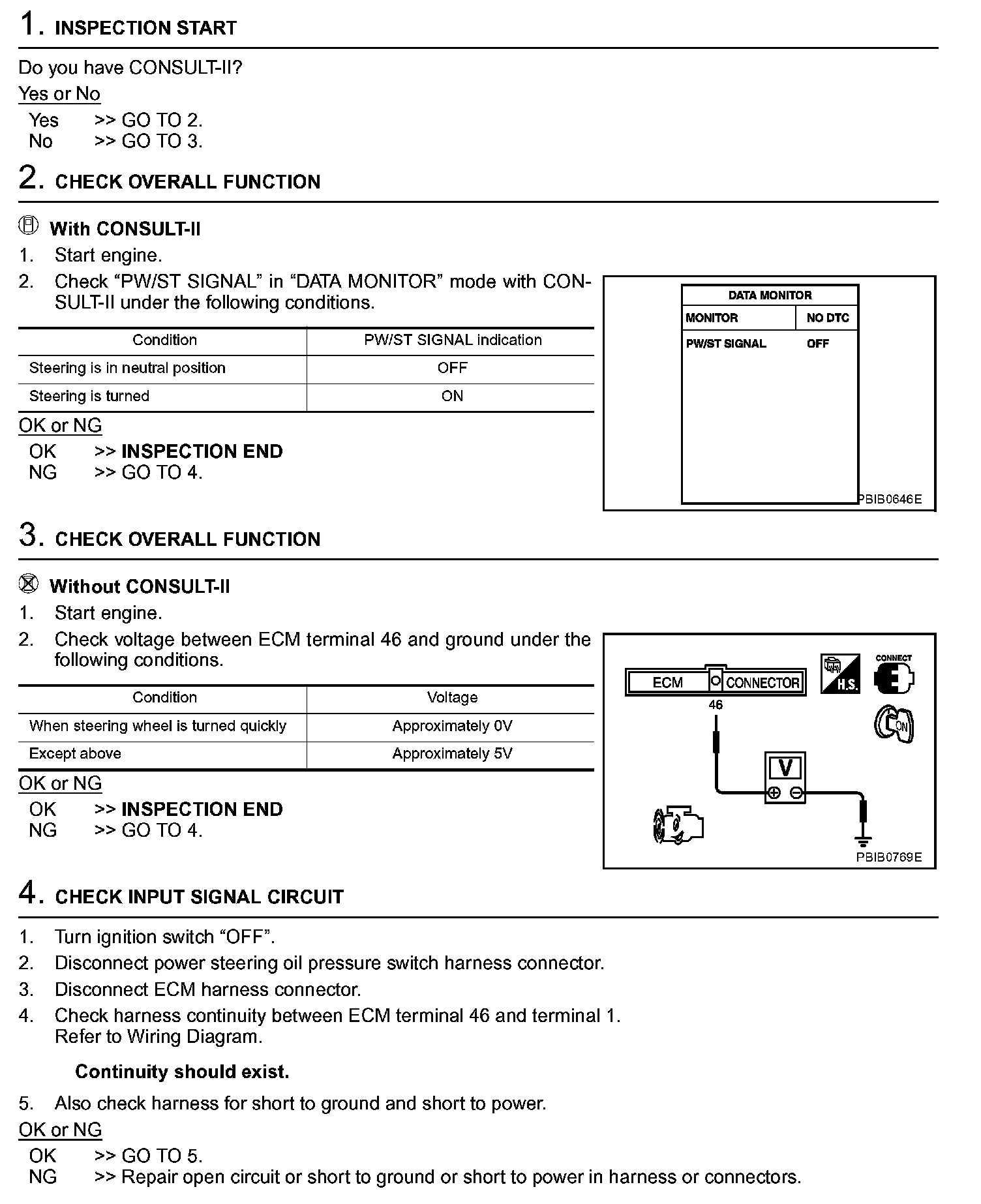

Diagnostic Procedure Step 1 - 4:

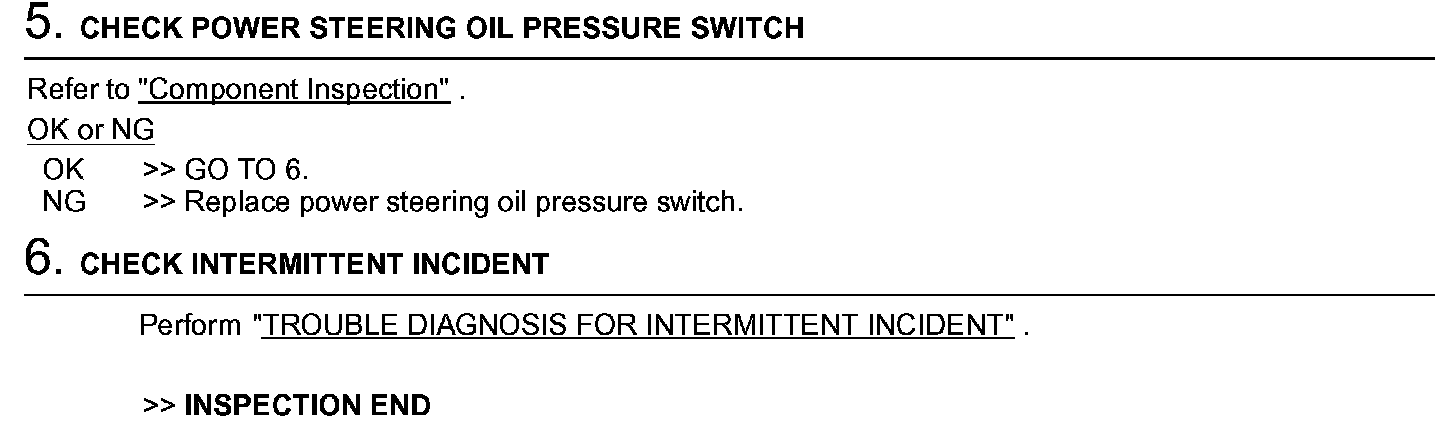

Diagnostic Procedure Step 5 - 6:
