Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Electrical Diagrams >> EC-HO2S3H-01

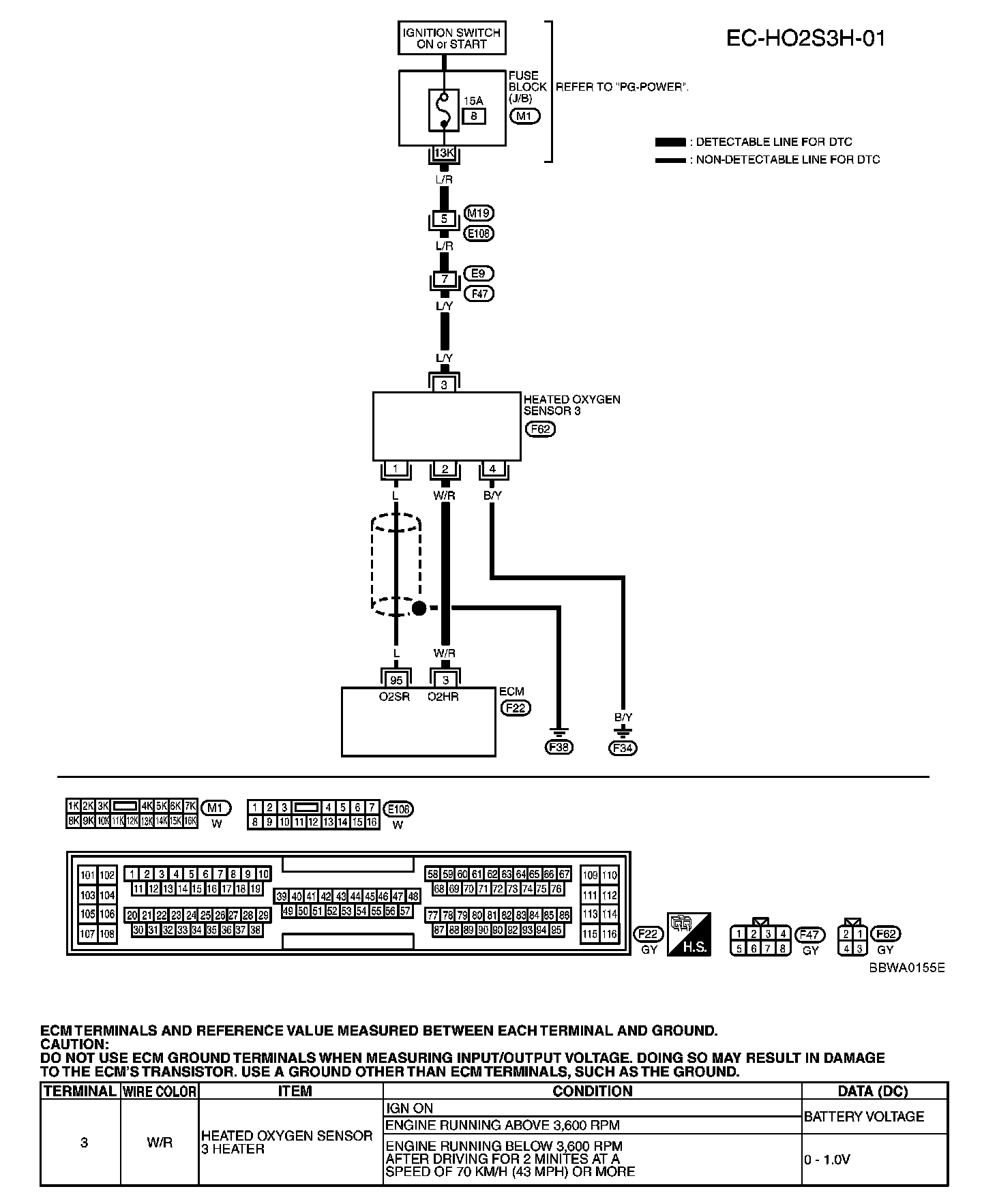

EC-HO2S3H-01

EC-HO2S3H-01:
