Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> For CANADA

For CANADA

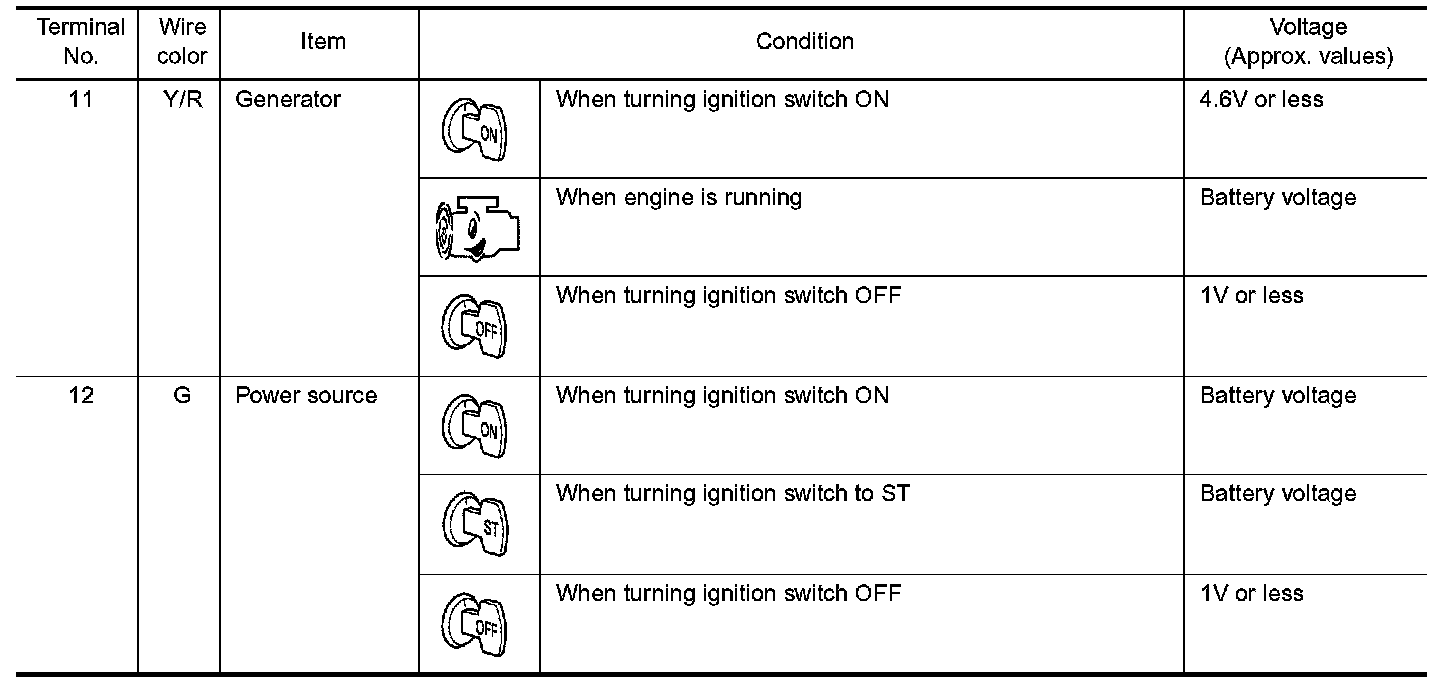

Daytime Light Control Unit Inspection Table Part 1:



Daytime Light Control Unit Inspection Table Part 2:
