Interior Lamp Timer (W/Power Locks & W/O Remote Keyless Entry)

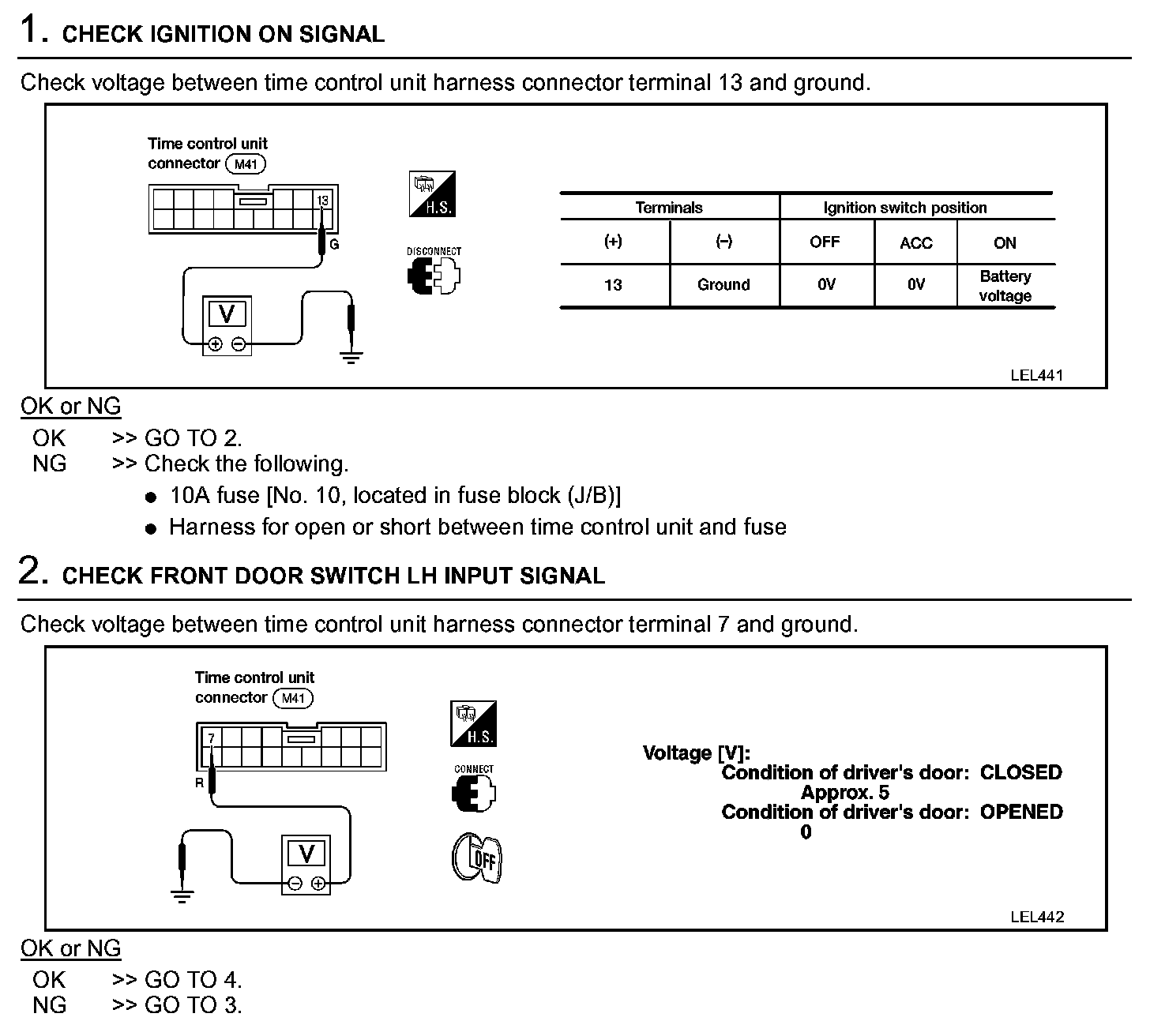

Trouble Diagnoses for Interior Lamp Timer (With Power Door Locks and Without Remote Keyless Entry System)Diagnostic Procedure 1 Step 1 - 2:

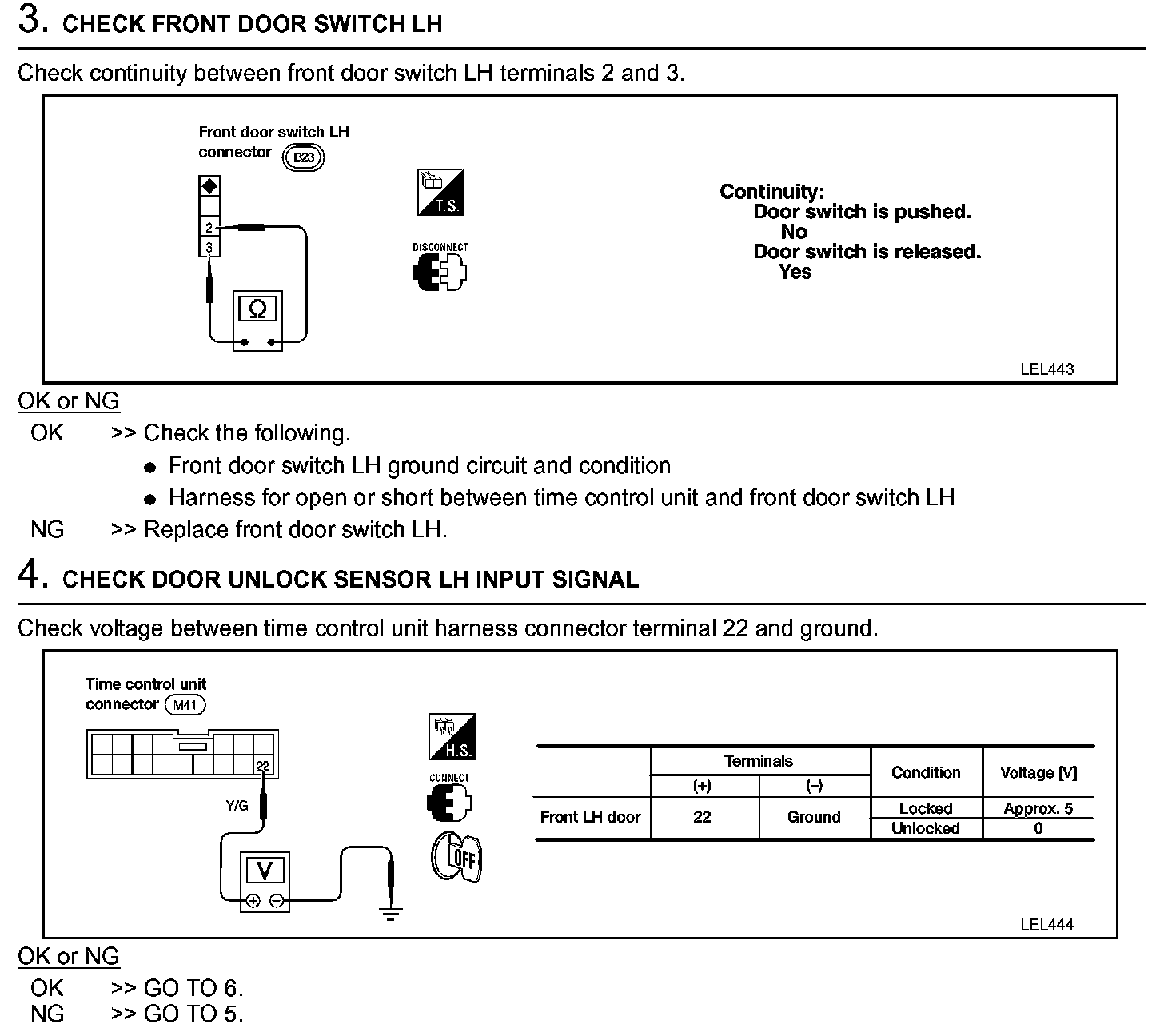

Diagnostic Procedure 1 Step 3 - 4:

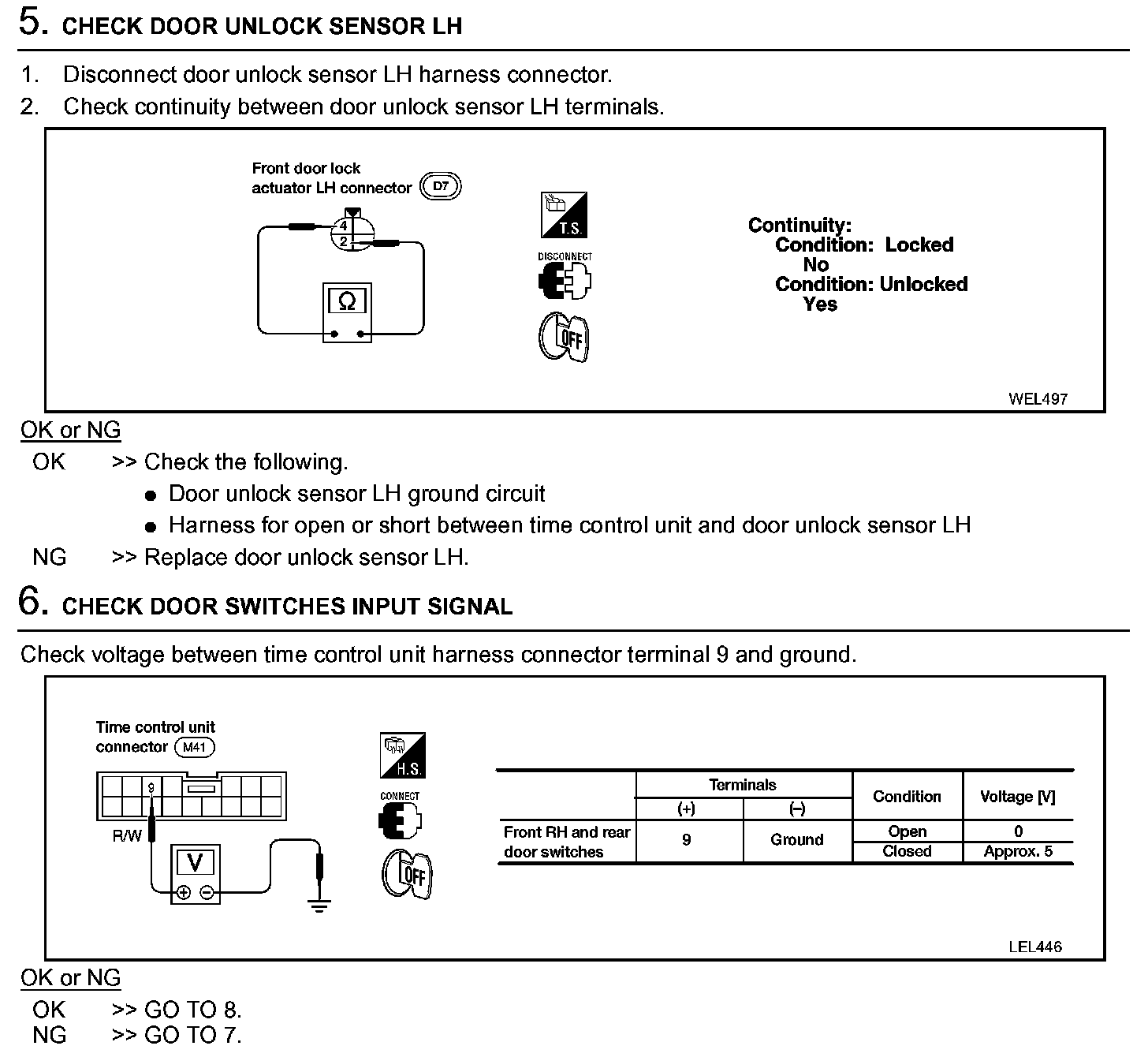

Diagnostic Procedure 1 Step 5 - 6:

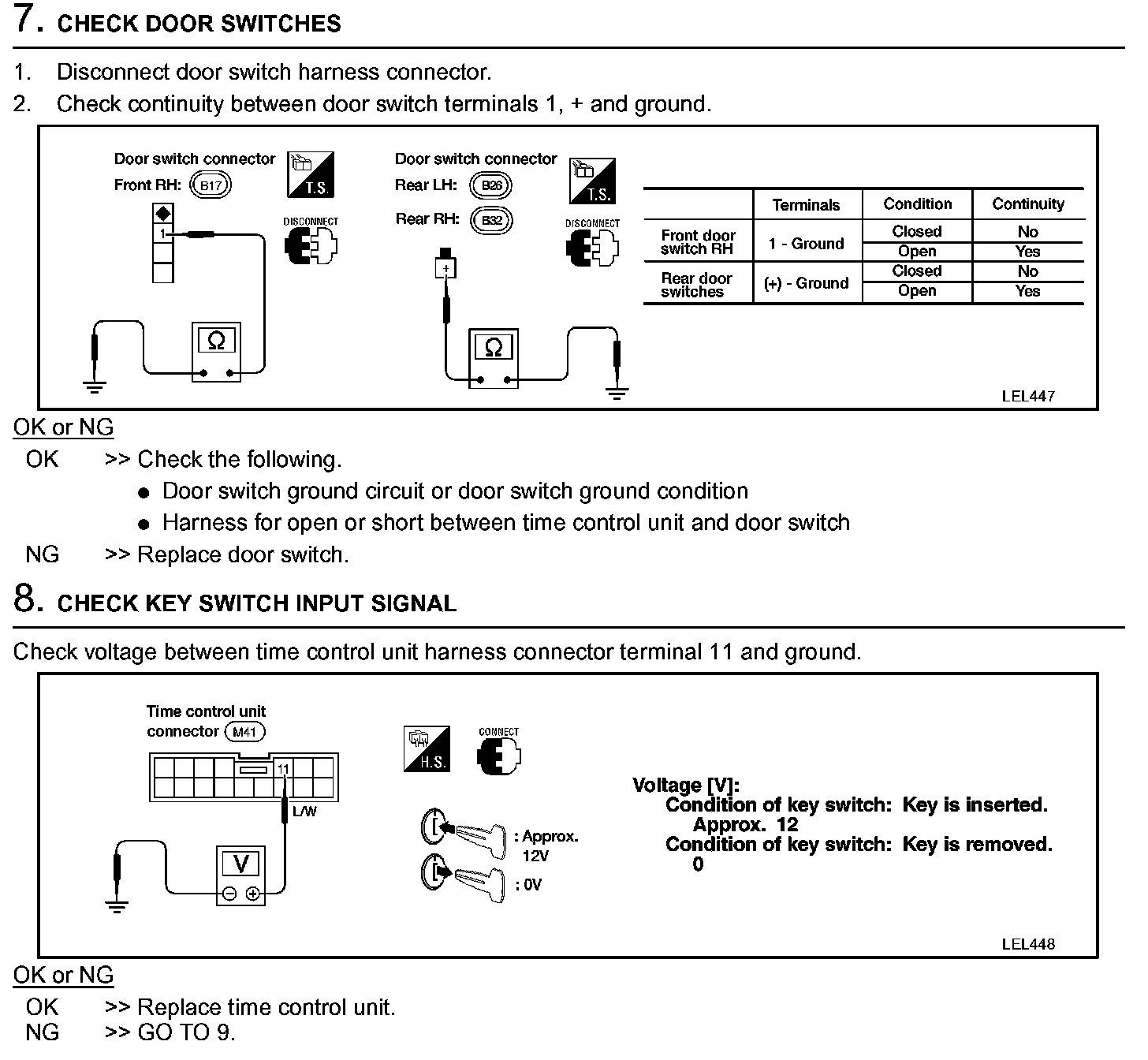

Diagnostic Procedure 1 Step 7 - 8:

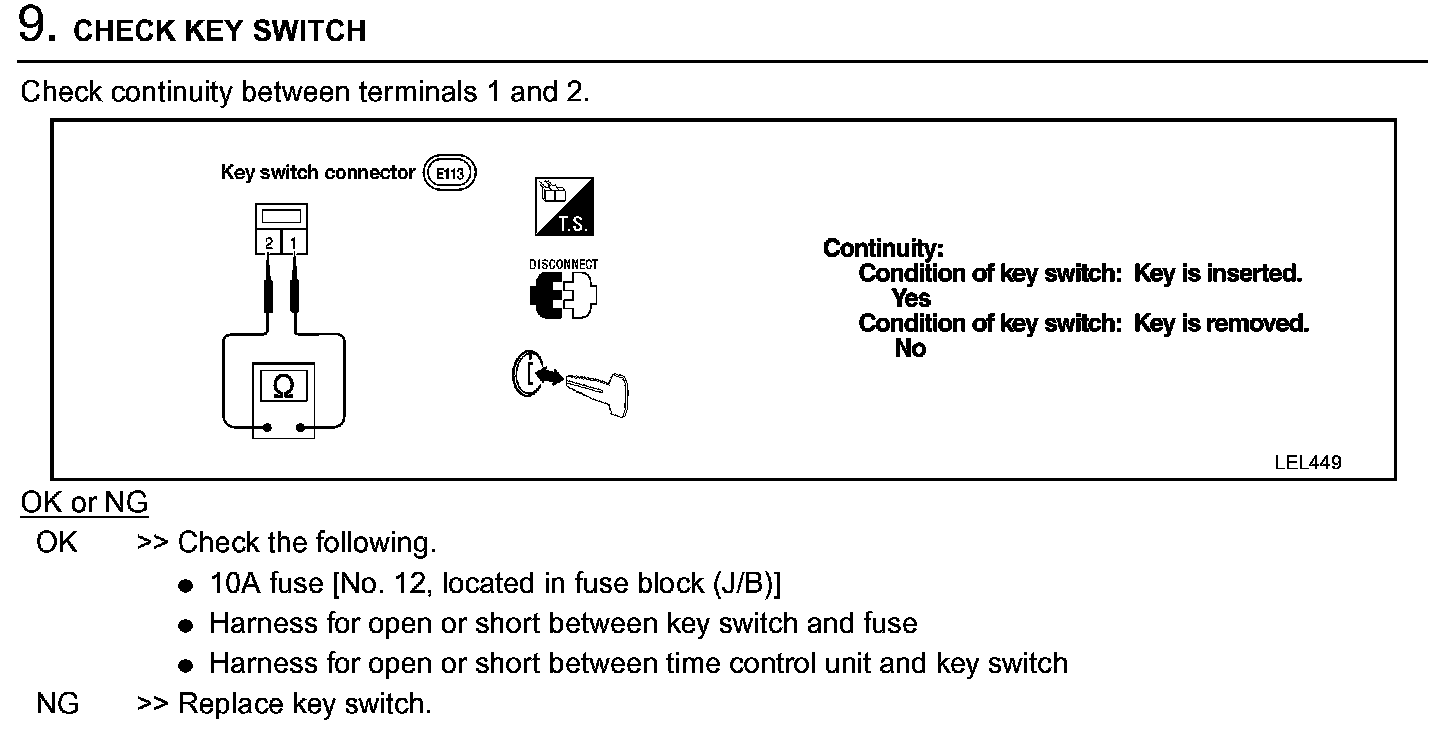

Diagnostic Procedure 1 Step 9:
DIAGNOSTIC PROCEDURE 1 (SYMPTOM: INTERIOR LAMP TIMER DOES NOT OPERATE PROPERLY.)
