Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Meters and Gauges >> Non-Trouble Code Procedures >> Thermal Transmitter

Thermal Transmitter

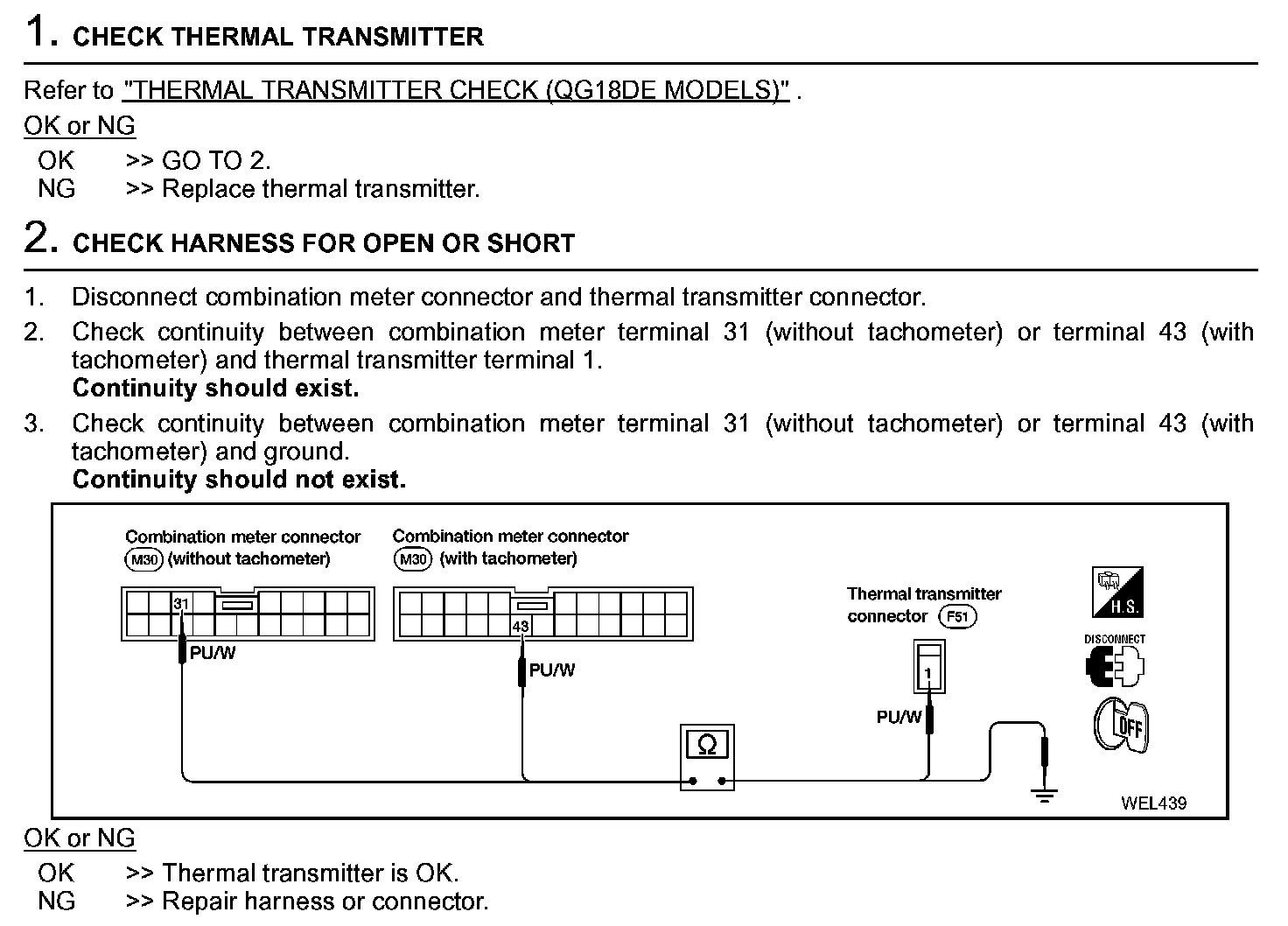

Inspection/Thermal Transmitter (QG18DE Models) Step 1 - 2:

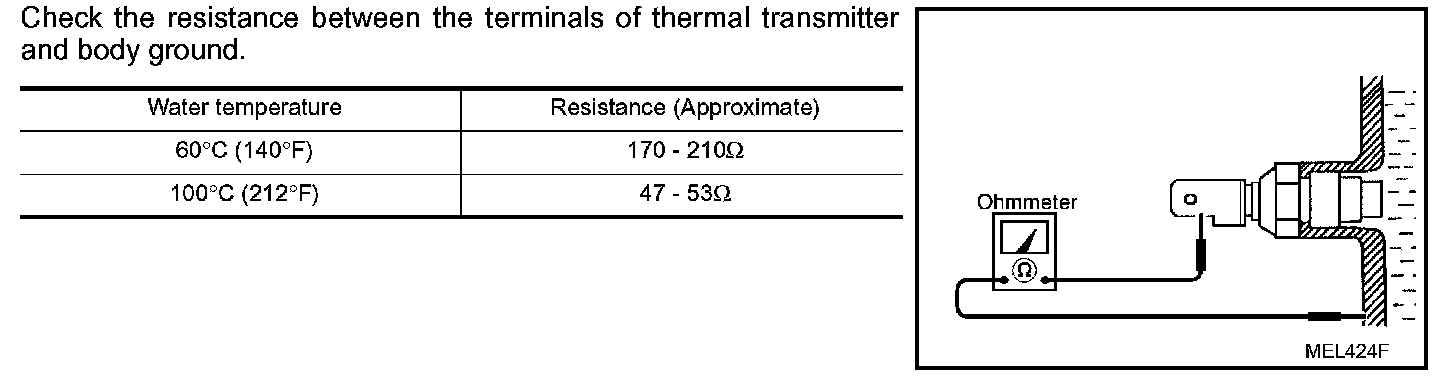

Thermal Transmitter Check:
