Vehicle Speed Sensor

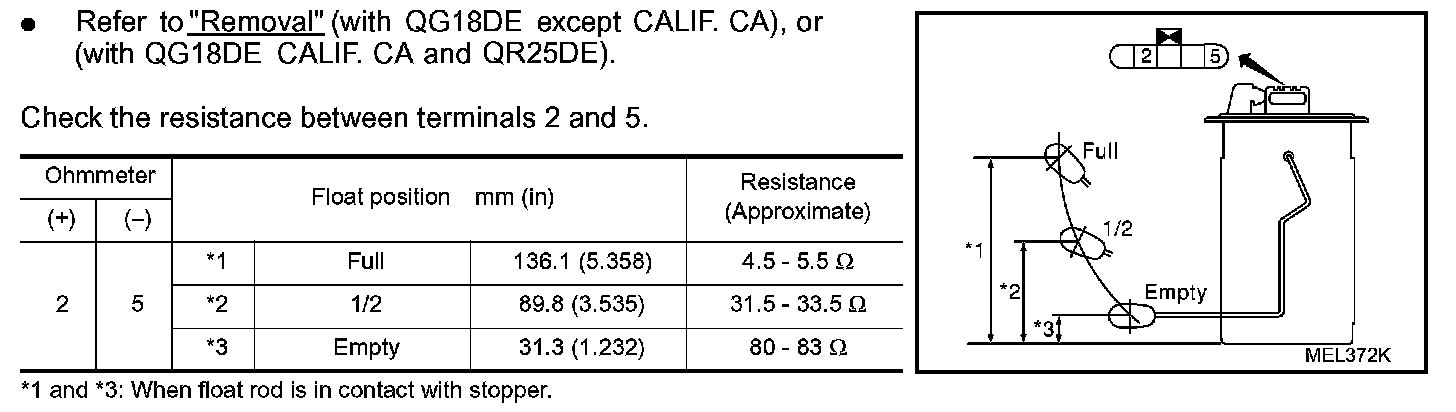

Fuel Level Sensor Unit Check:

Thermal Transmitter Check:

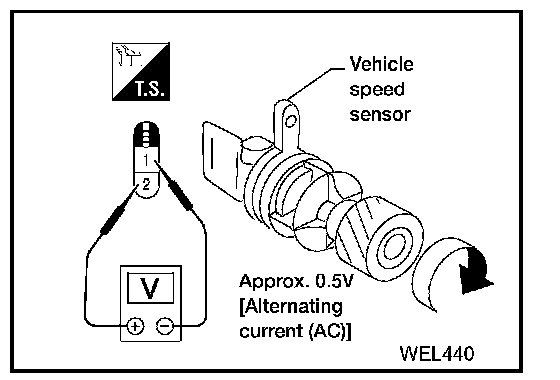

VEHICLE SPEED SENSOR SIGNAL CHECK
1. Remove vehicle speed sensor from transmission.
2. Turn vehicle speed sensor pinion quickly and measure voltage across terminals 1 and 2 (with QG18DE), or terminals + and - (with QR25DE).
