Main Power Supply and Ground Circuit Check

POWER SUPPLY CIRCUIT CHECK
Check power supply circuit for air conditioner system.

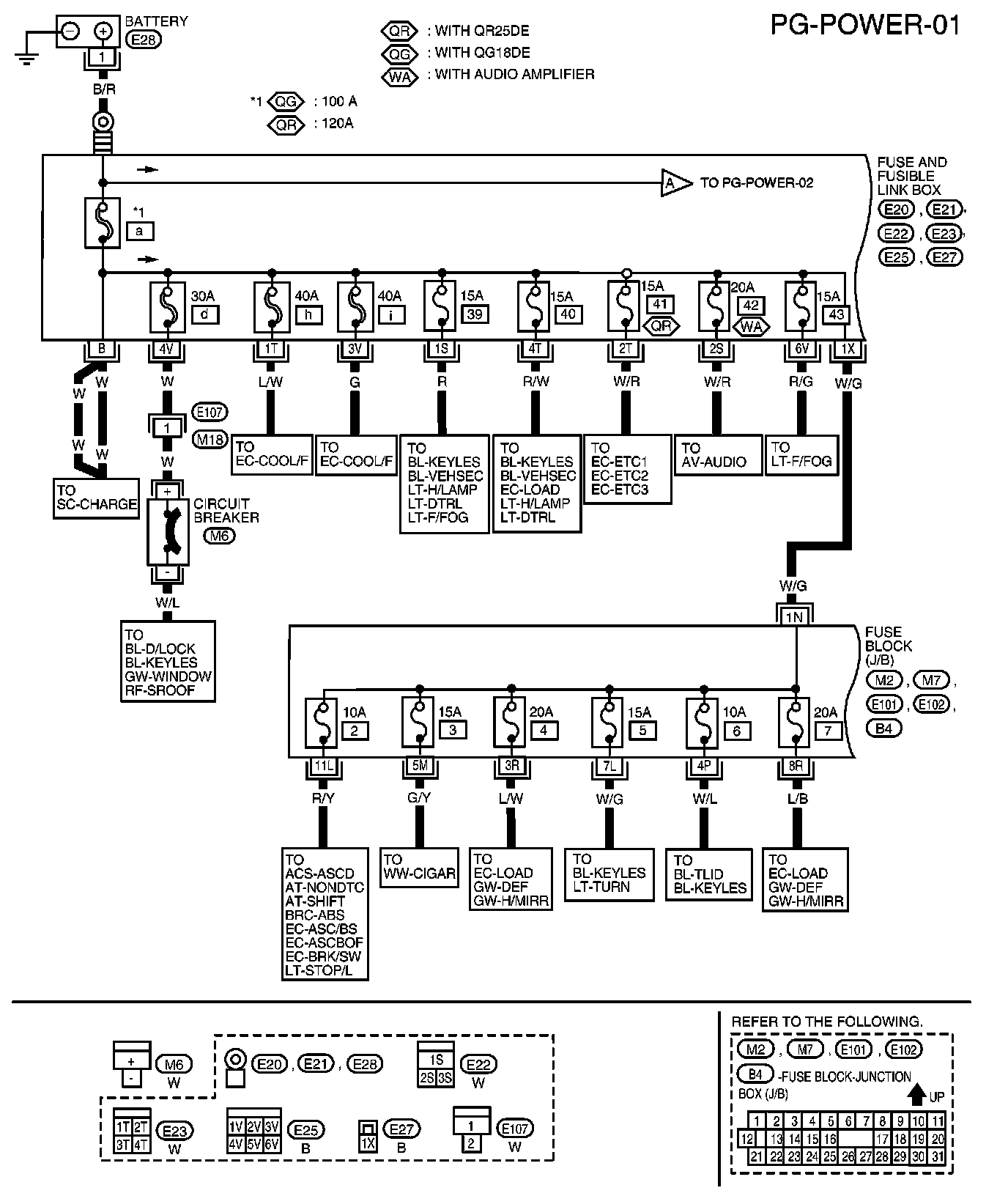

PG-POWER-01 (Battery Power Supply - Ignition SW. In Any Position):

Refer to Wiring Diagram.
