Air Conditioning System - Component Layout

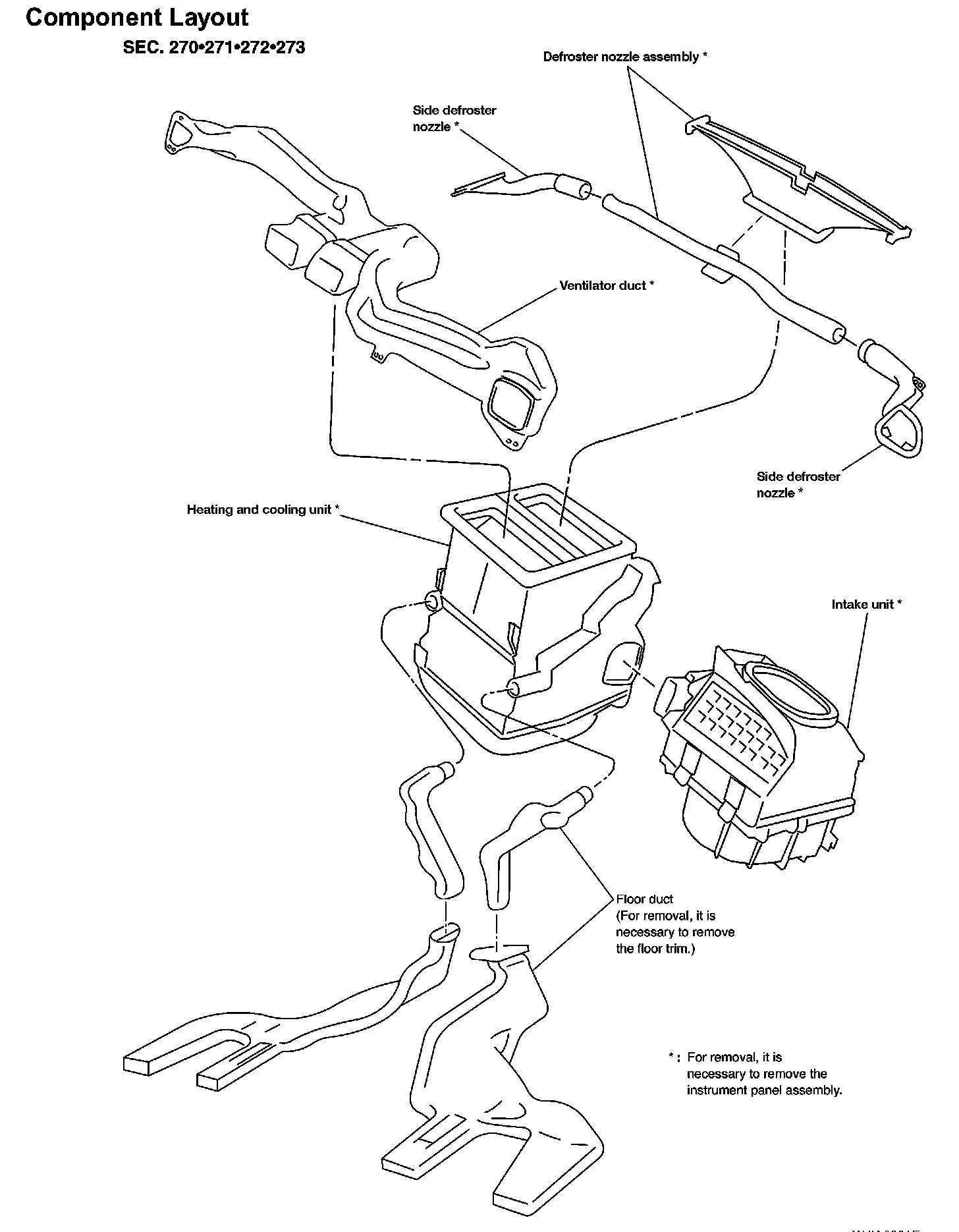

Component Layout:

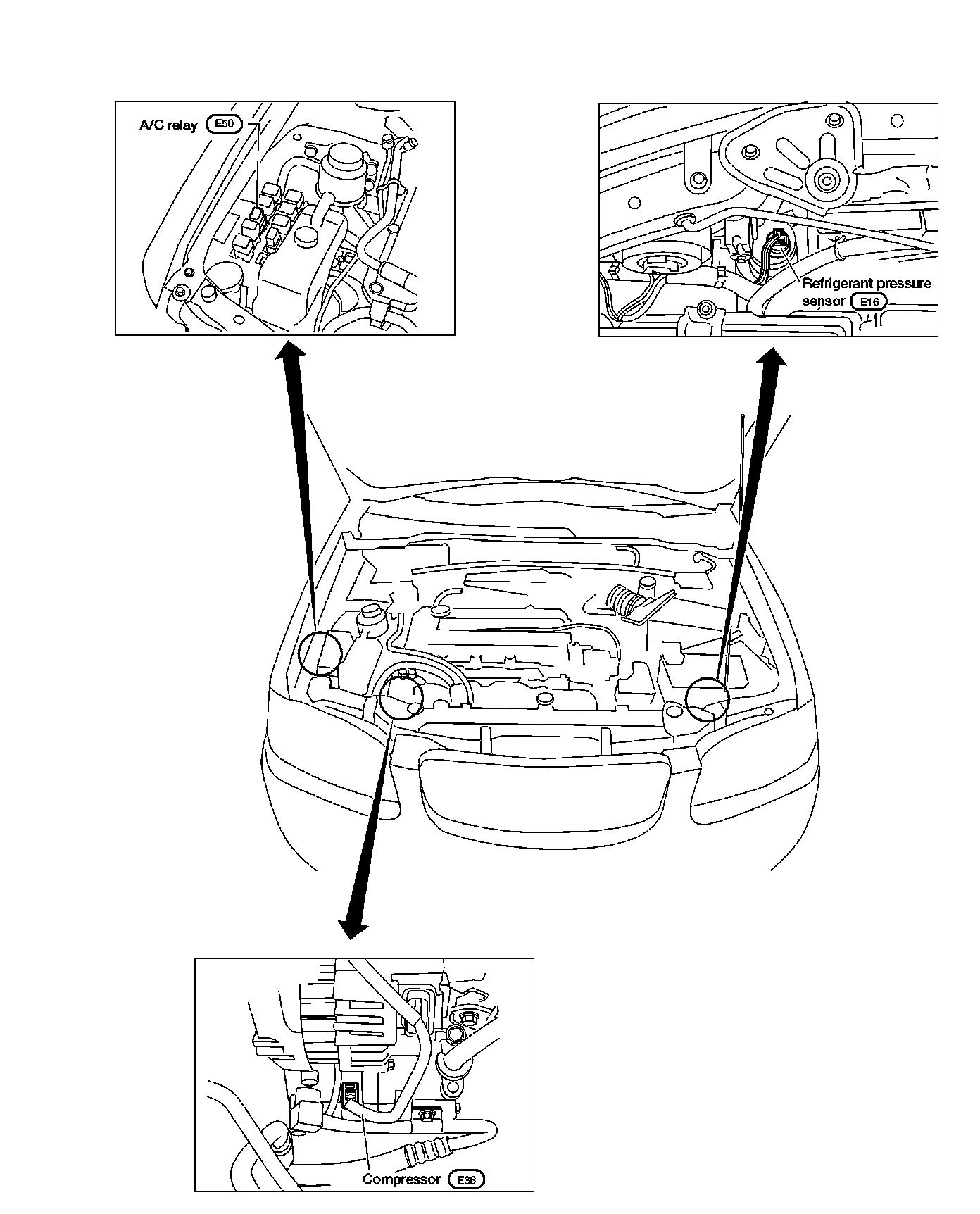

Engine Compartment:

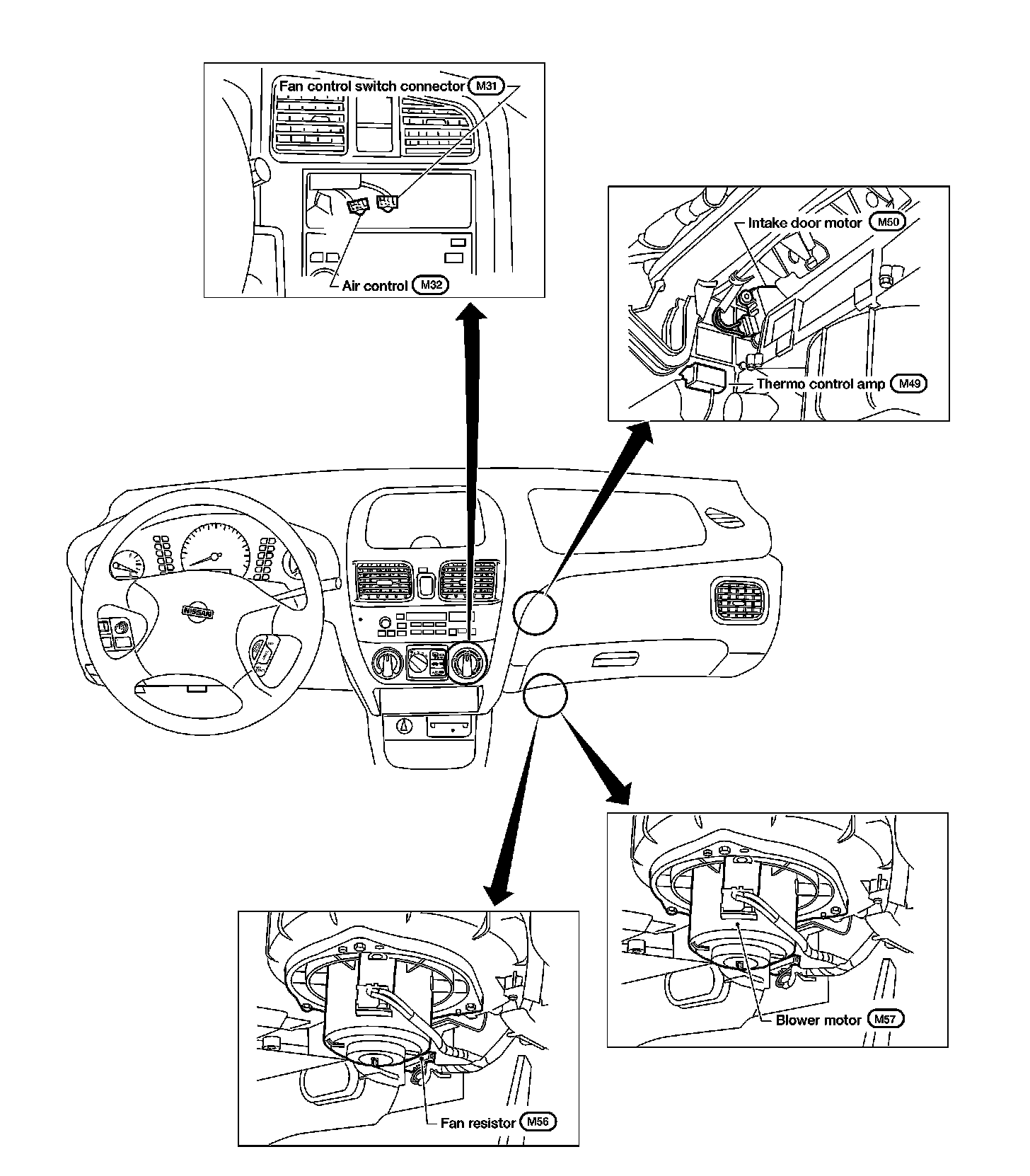

Passenger Compartment:
