Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Meters and Gauges >> Schematic

Schematic

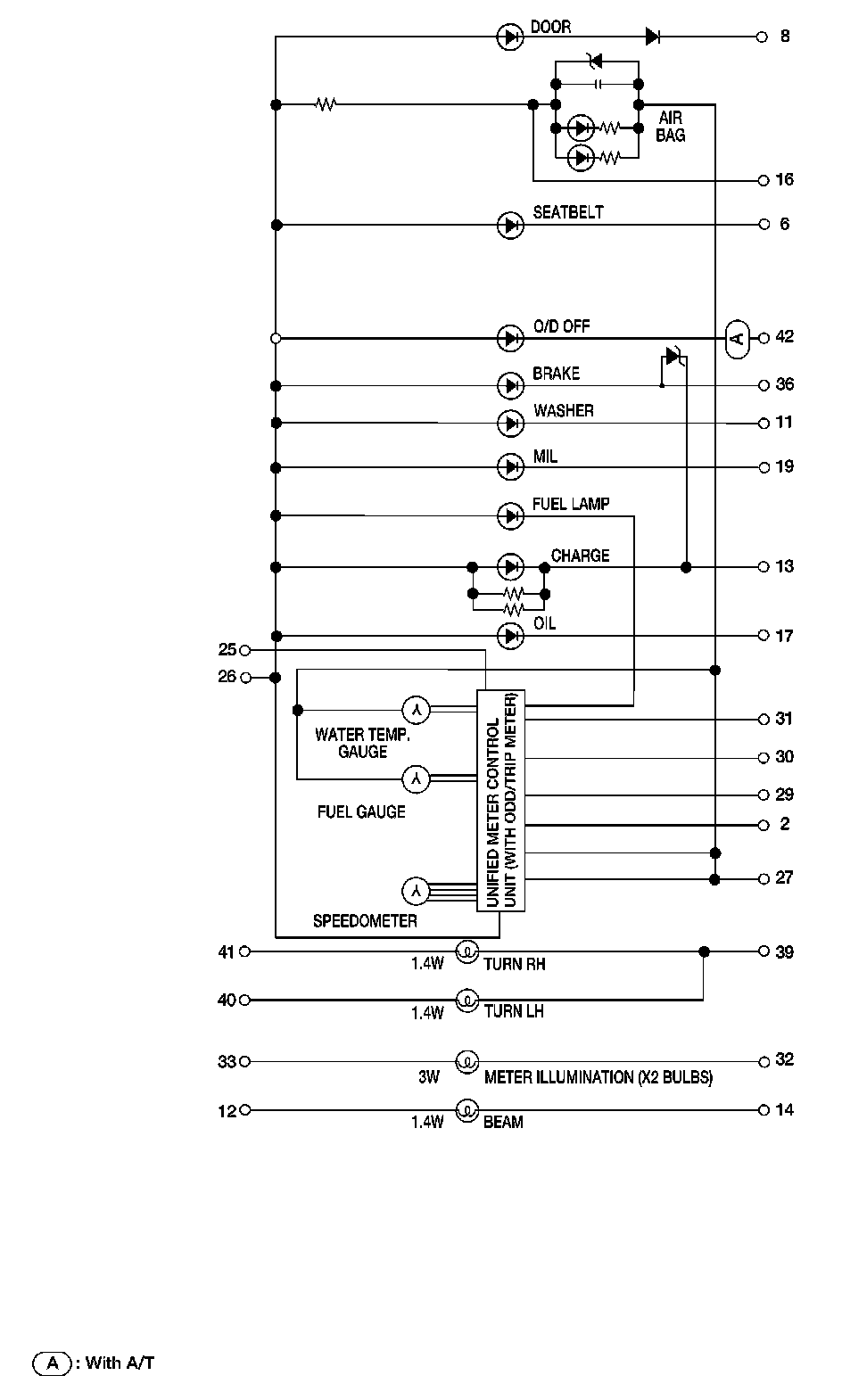

Meters And Gauges Schematic - Without Tachometer:

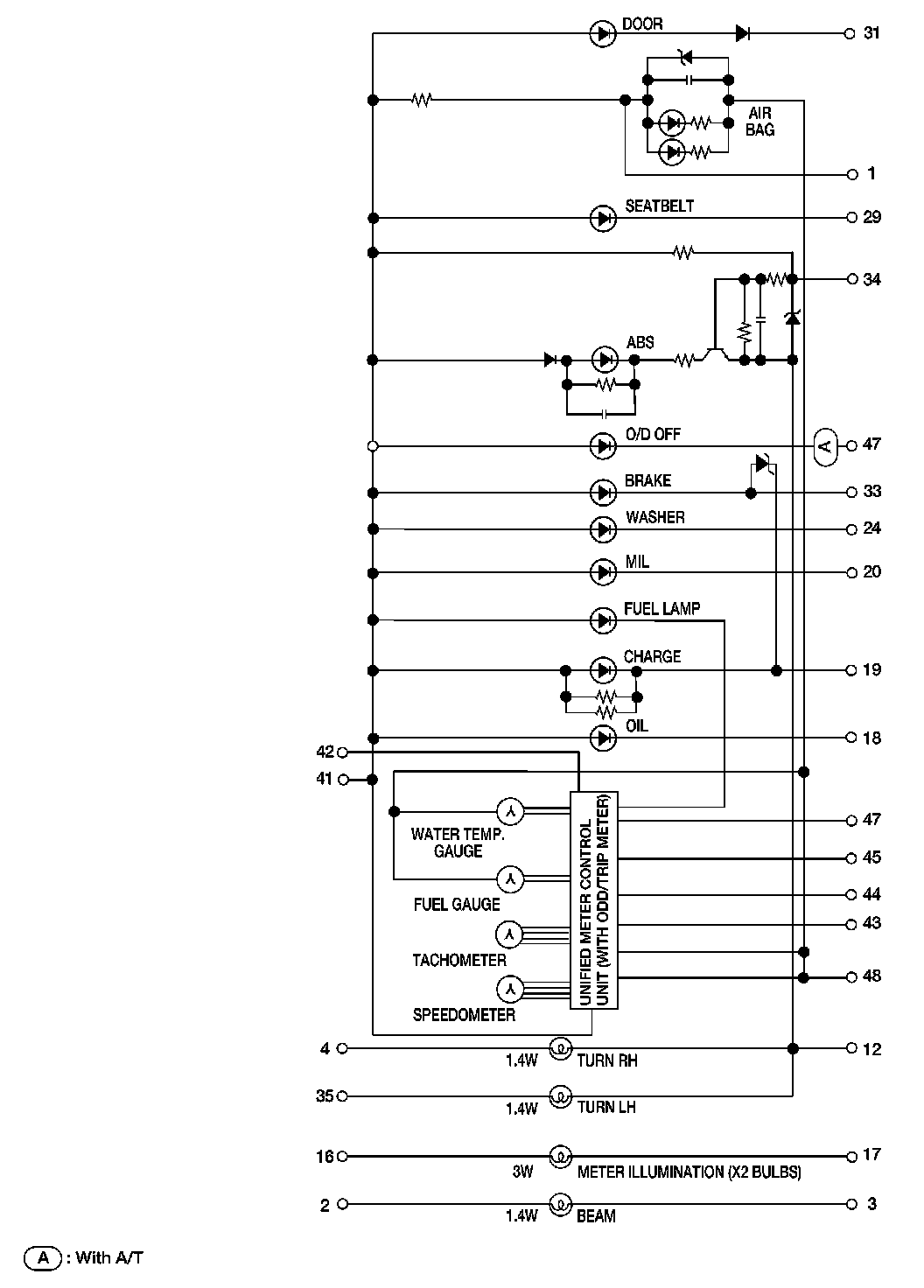

Meters And Gauges Schematic - With Tachometer:
