Nissan-Datsun
>>
2002
>>
Sentra CA (Clean Air) L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
>>
Data Link Connector, A/T
>>

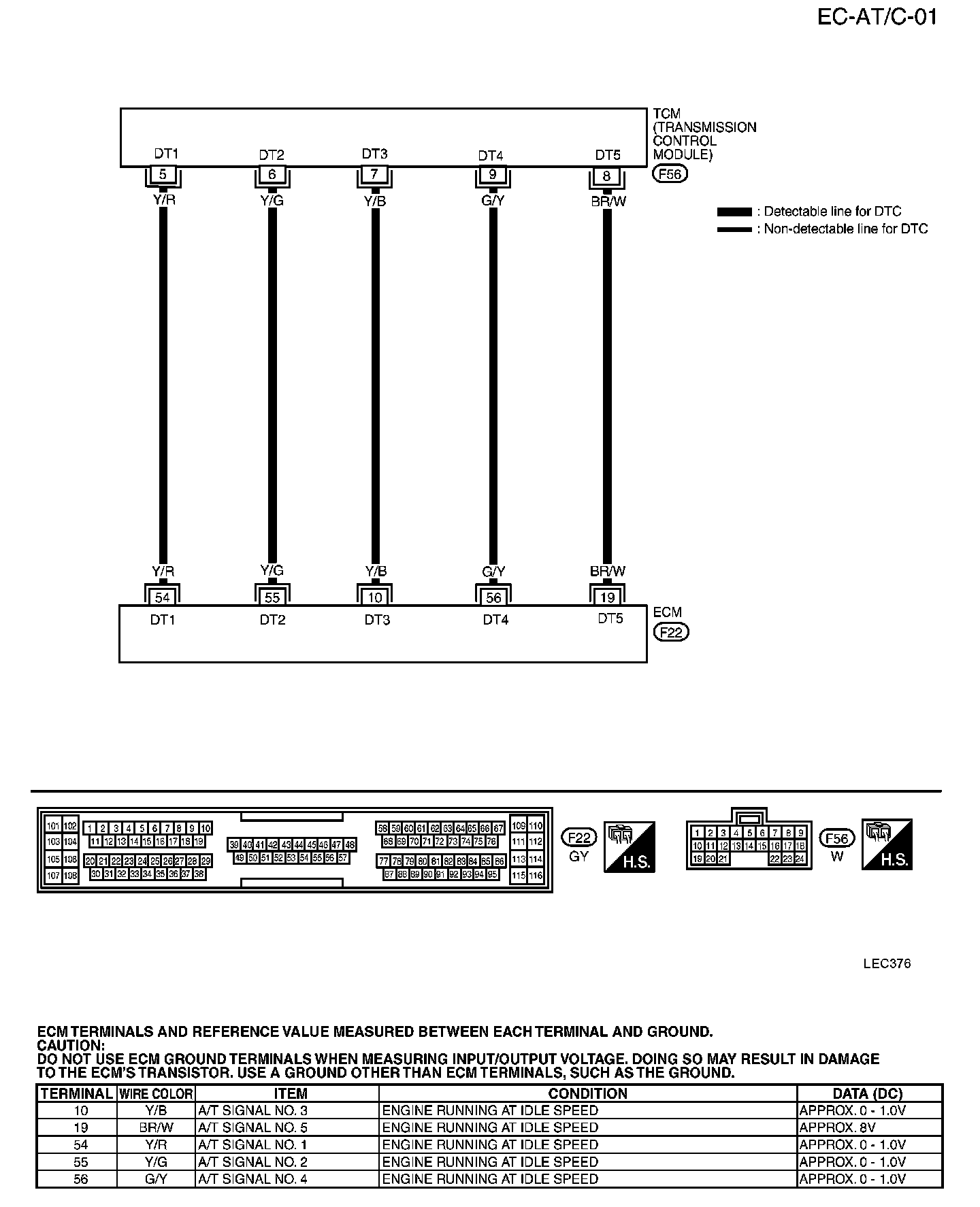

EC-AT/C
EC-AT/C
EC-AT/C-01:
