Engine Control Module

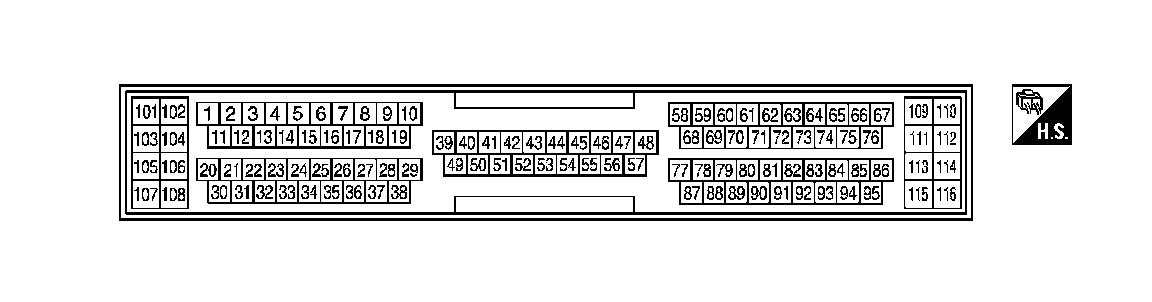

ECM Harness Connector Terminal Layout:

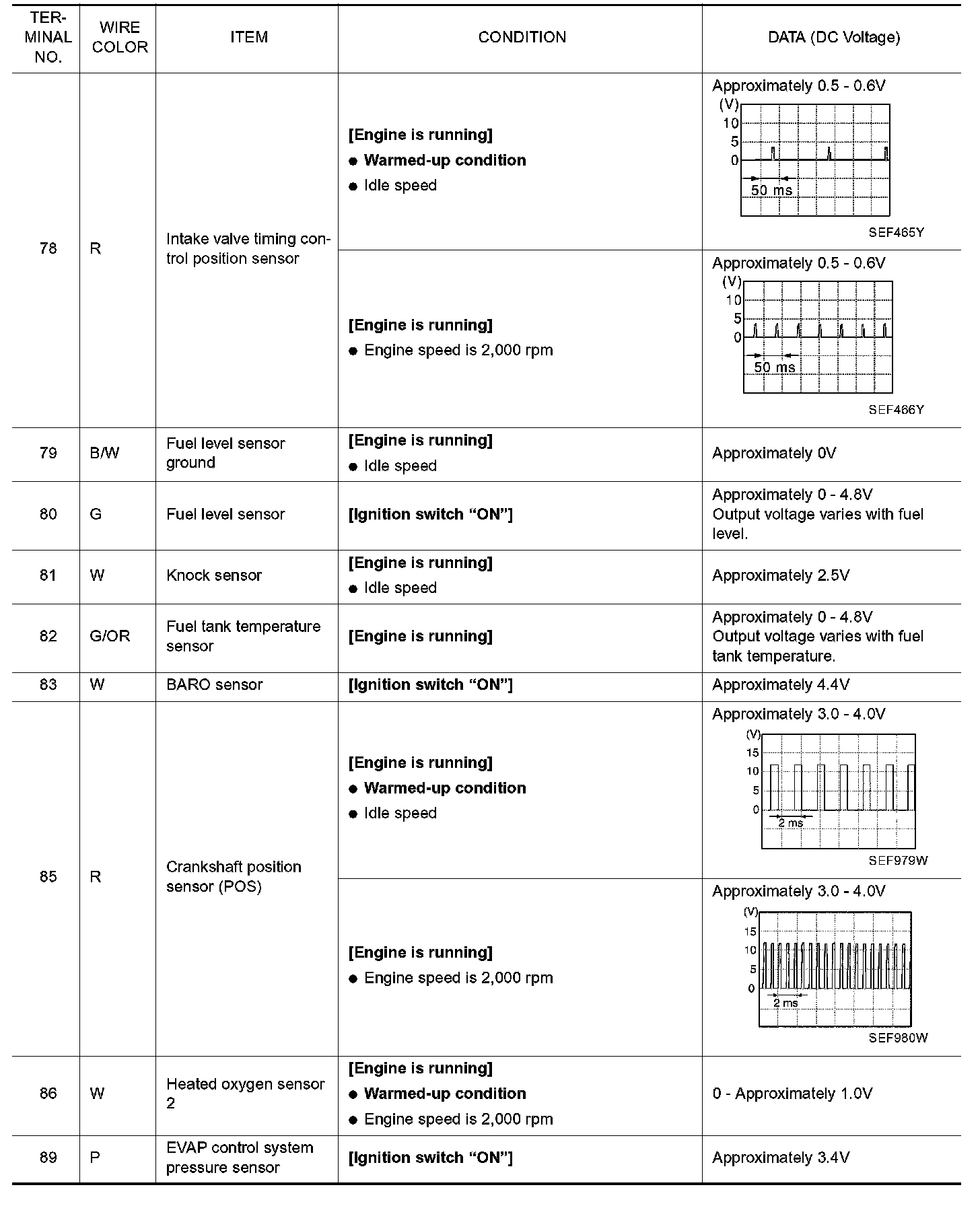

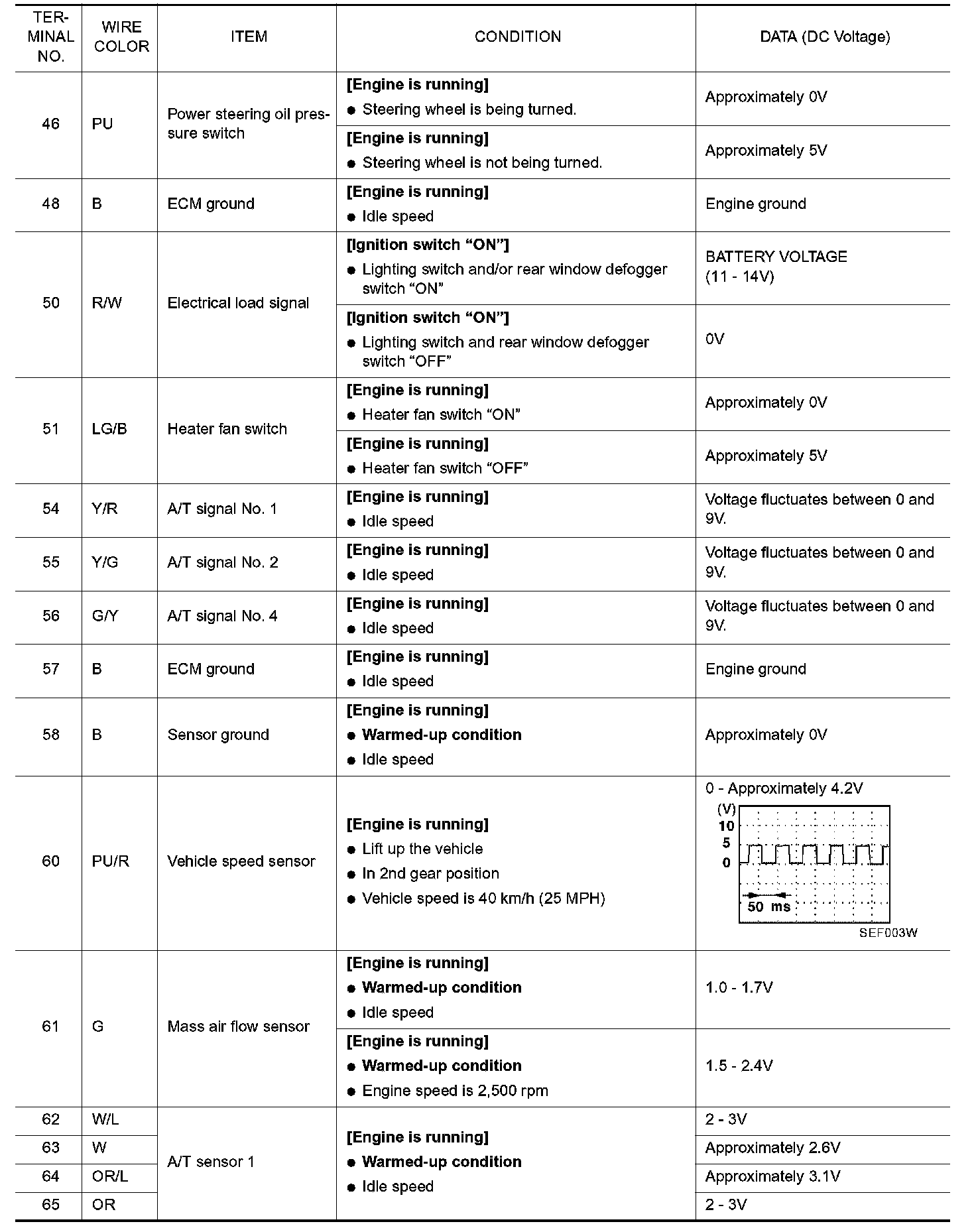

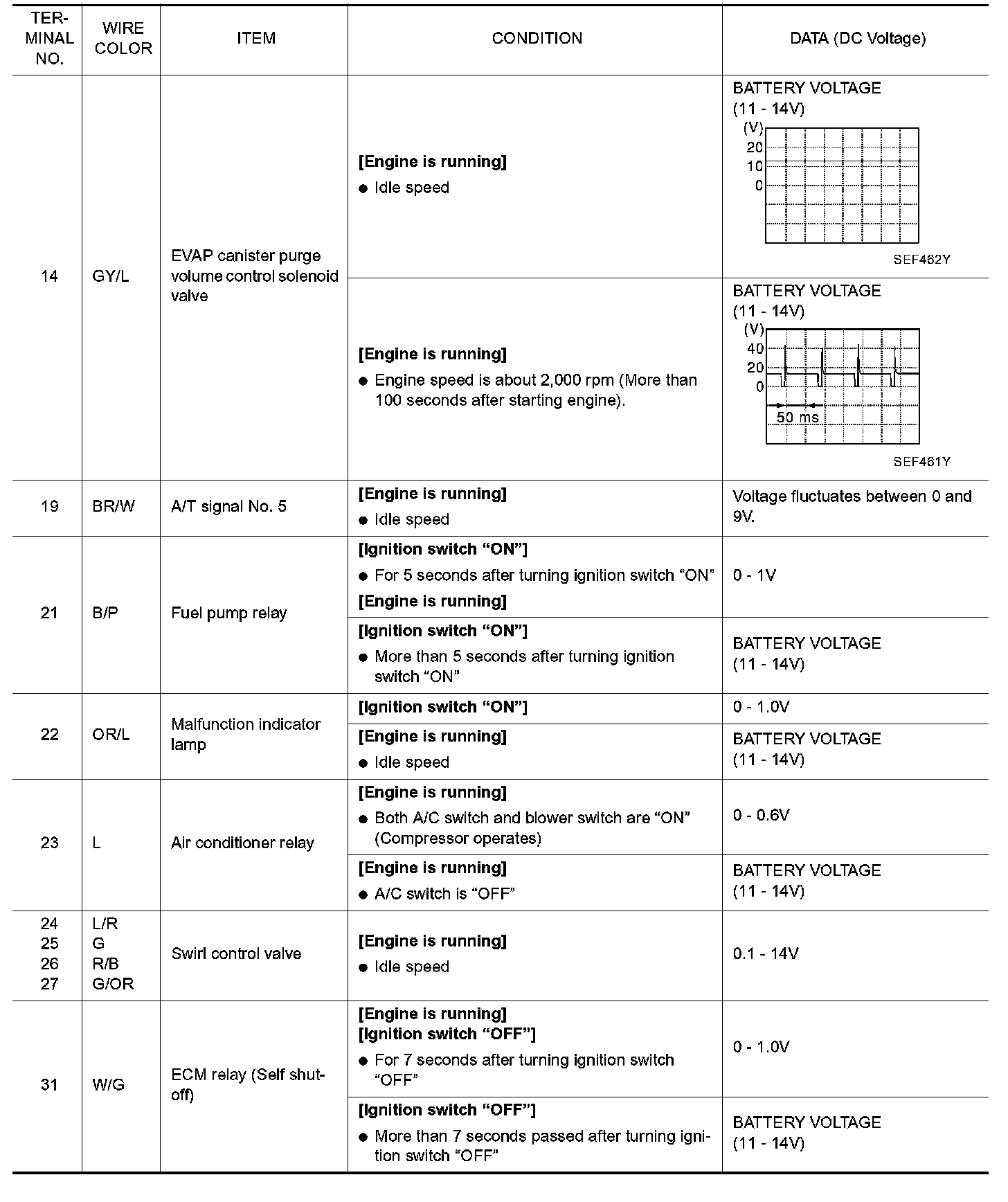

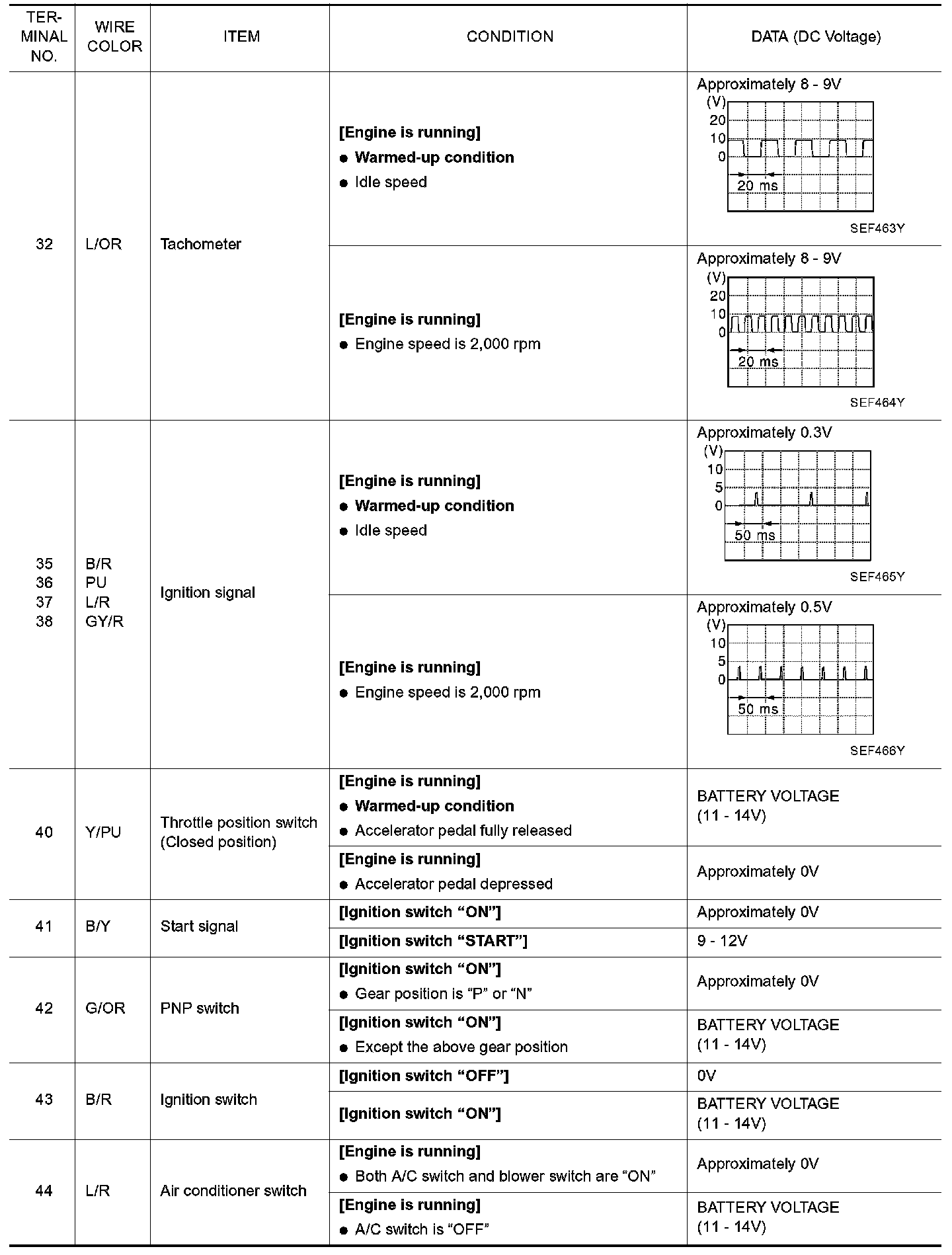

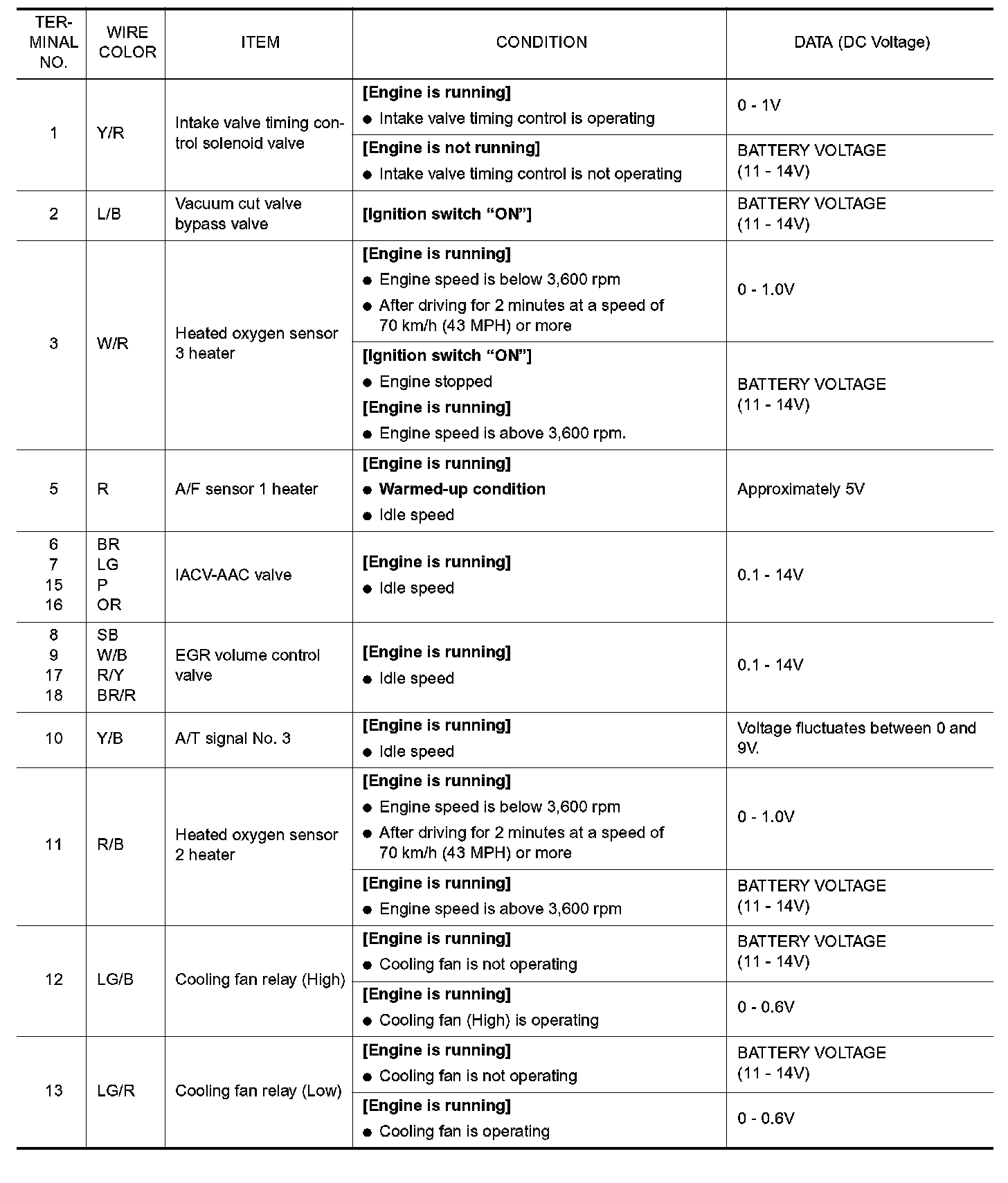

Part 1:





Part 2:





Part 3:





Part 4:





Part 5:





Part 6:





Part 7:
