Vehicle Security (Theft Warning) System

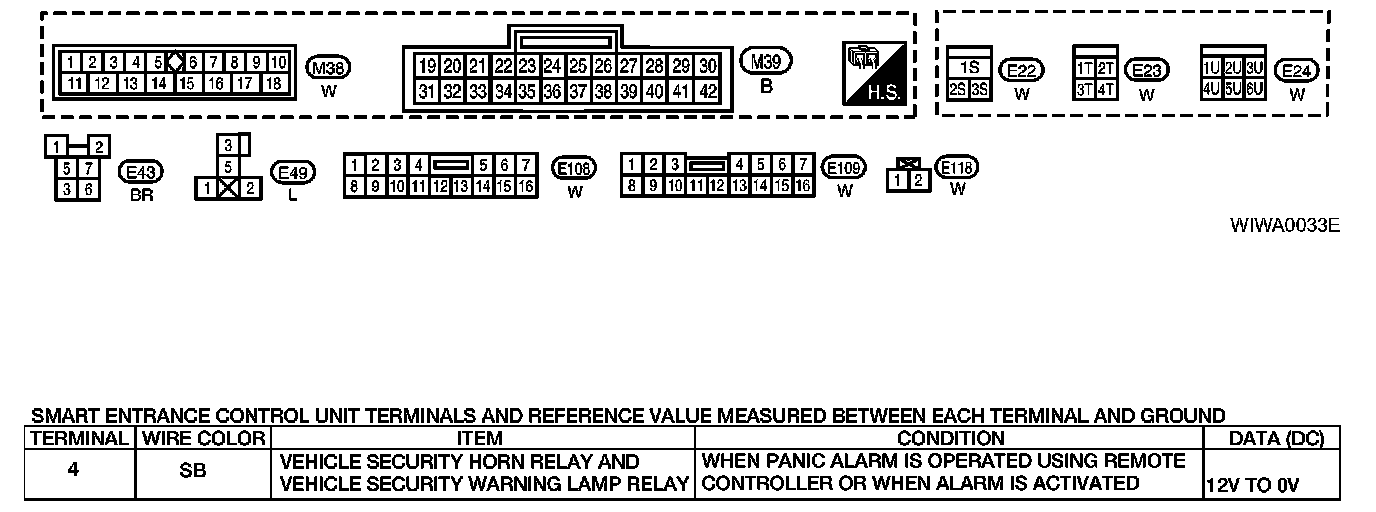

BL-VEHSEC-01 Connector Views:

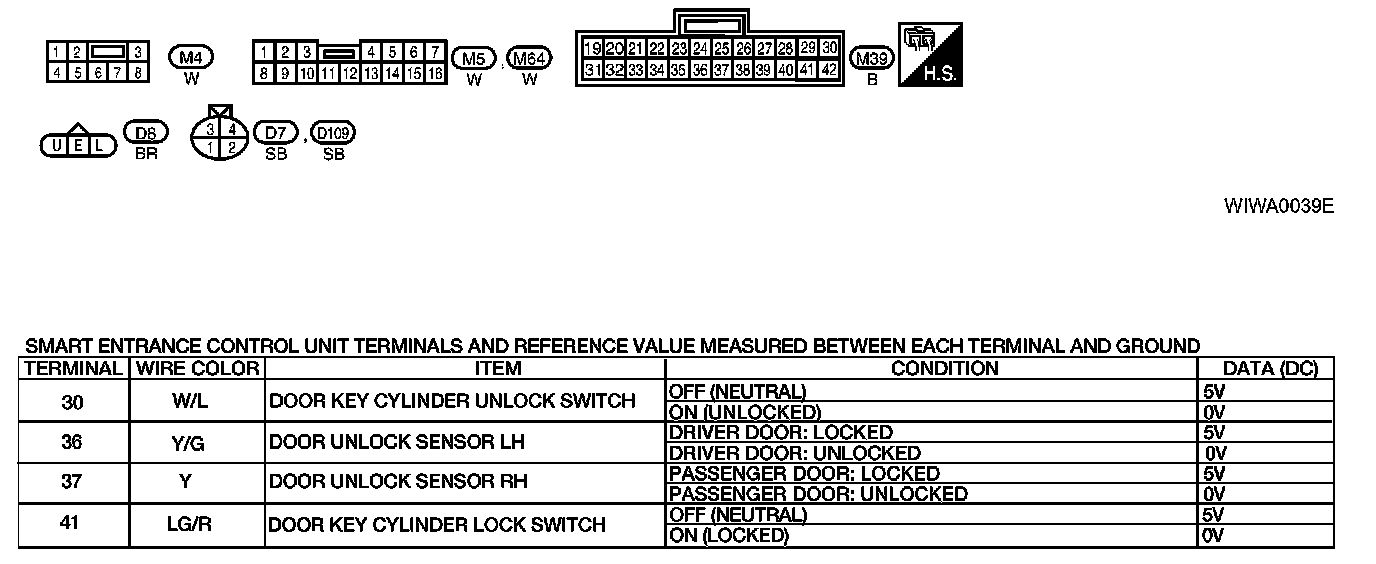

BL-VEHSEC-02 Connector Views:

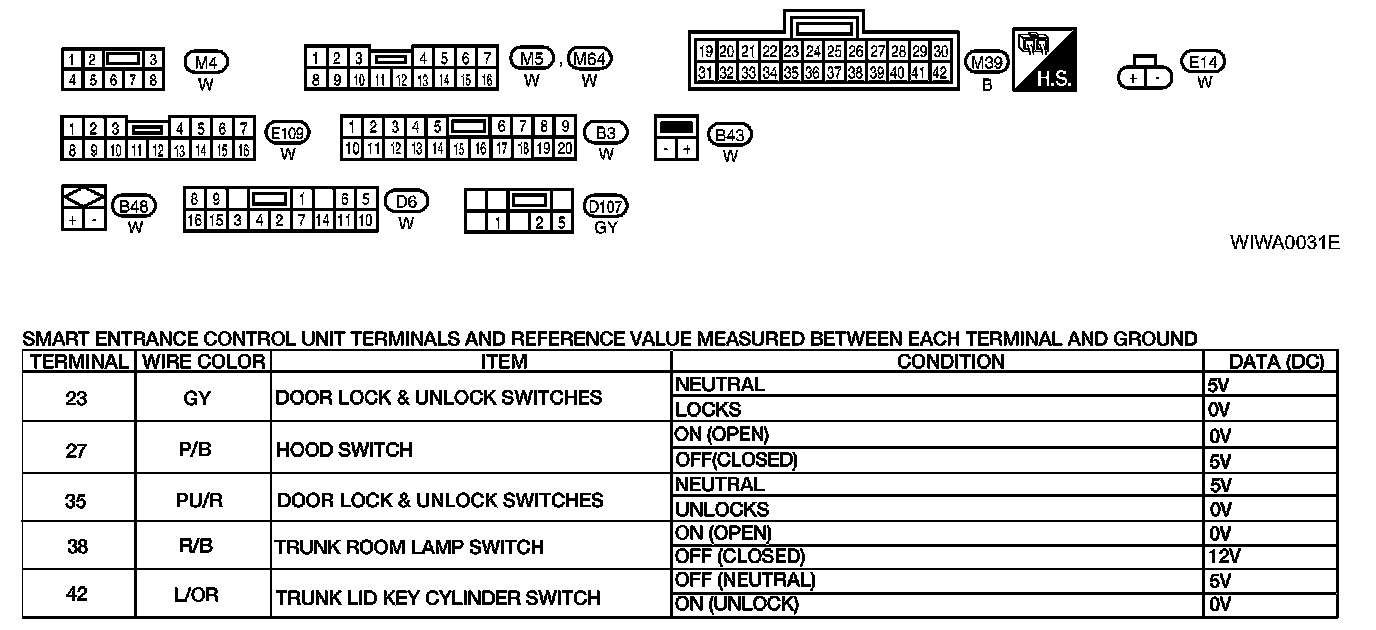

BL-VEHSEC-03 Connector Views:
BL-VEHSEC-04 Connector Views:
