Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics >> ASCD Component Inspections >> ASCD Motor Actuator Check

ASCD Motor Actuator Check

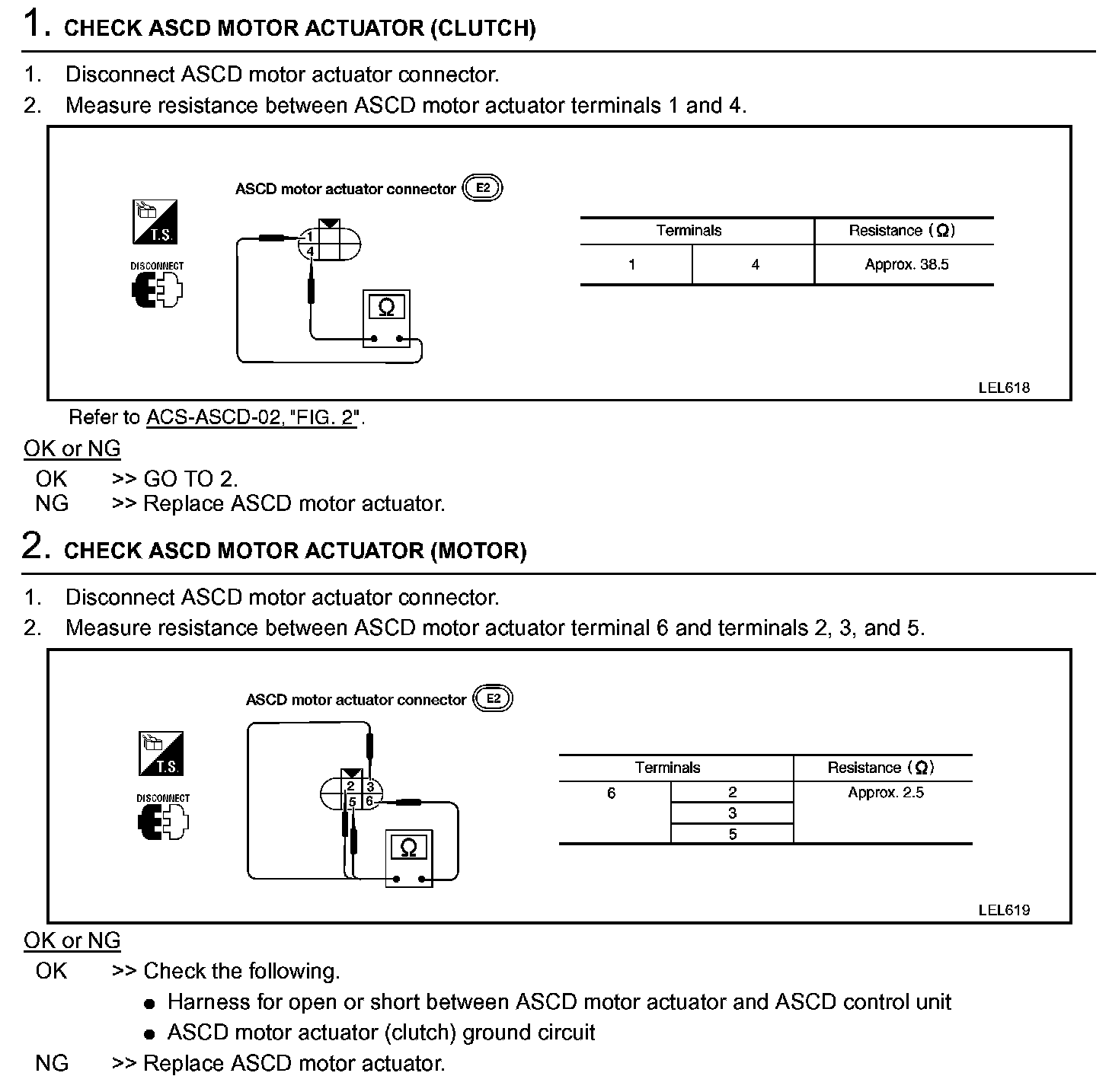

ASCD Motor Actuator Check:

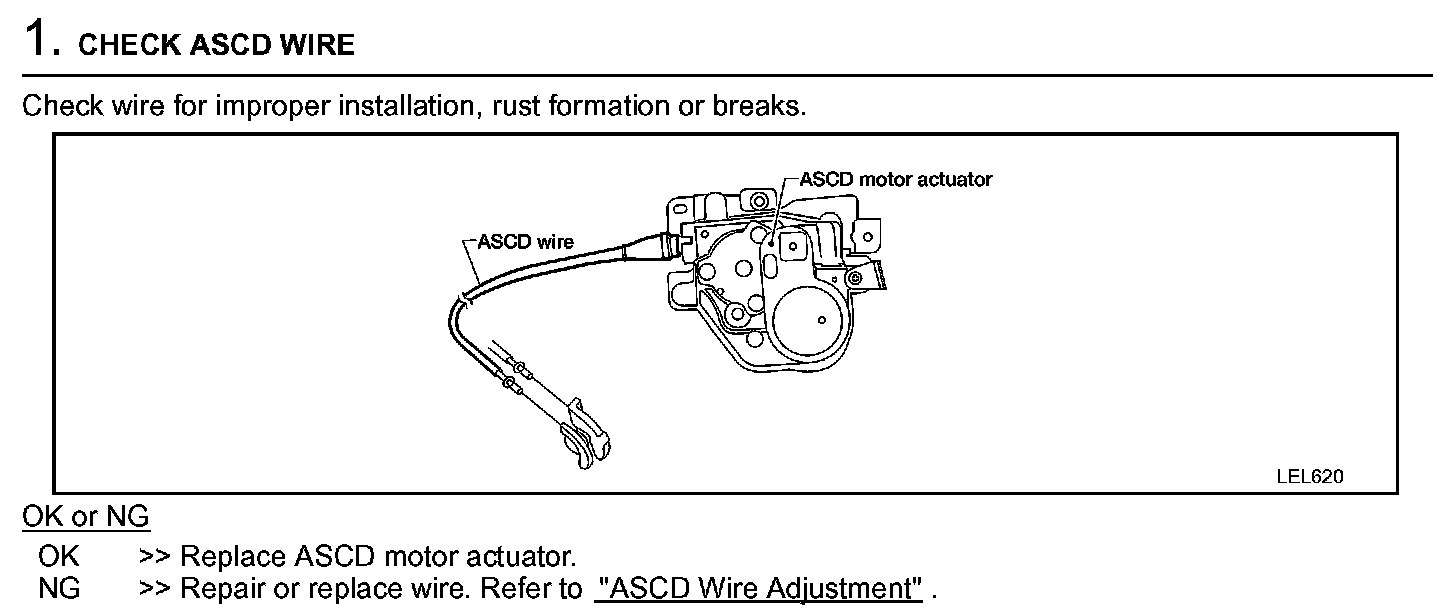

ASCD Motor Actuator Circuit Check Step 1 - 2:
