FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2002
>>
Sentra CA (Clean Air) L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
ASCD Circuit Inspections
>>
Power Supply and Ground Circuit Check
Power Supply and Ground Circuit Check

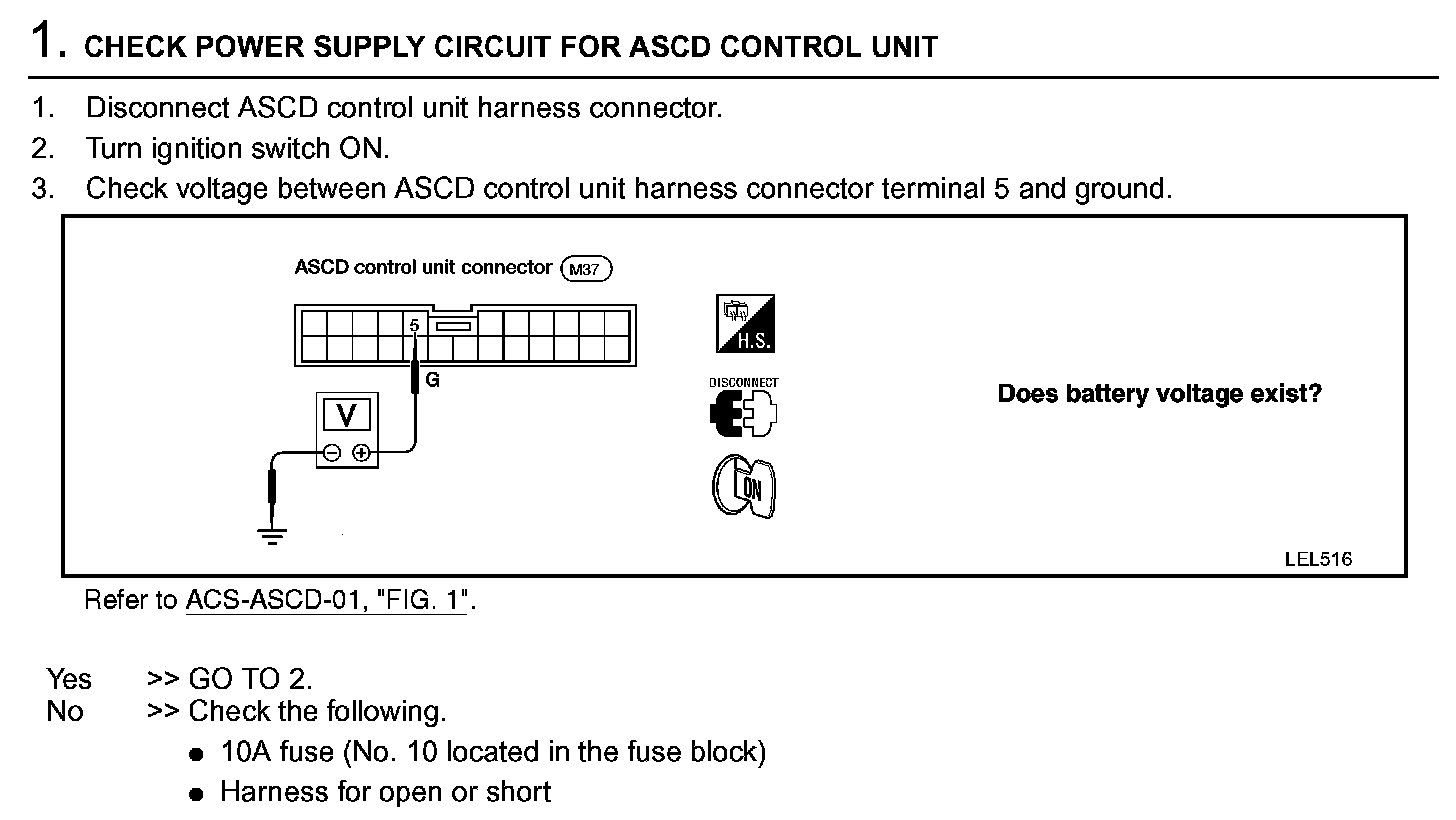

Power Supply And Ground Circuit Check Step 1:

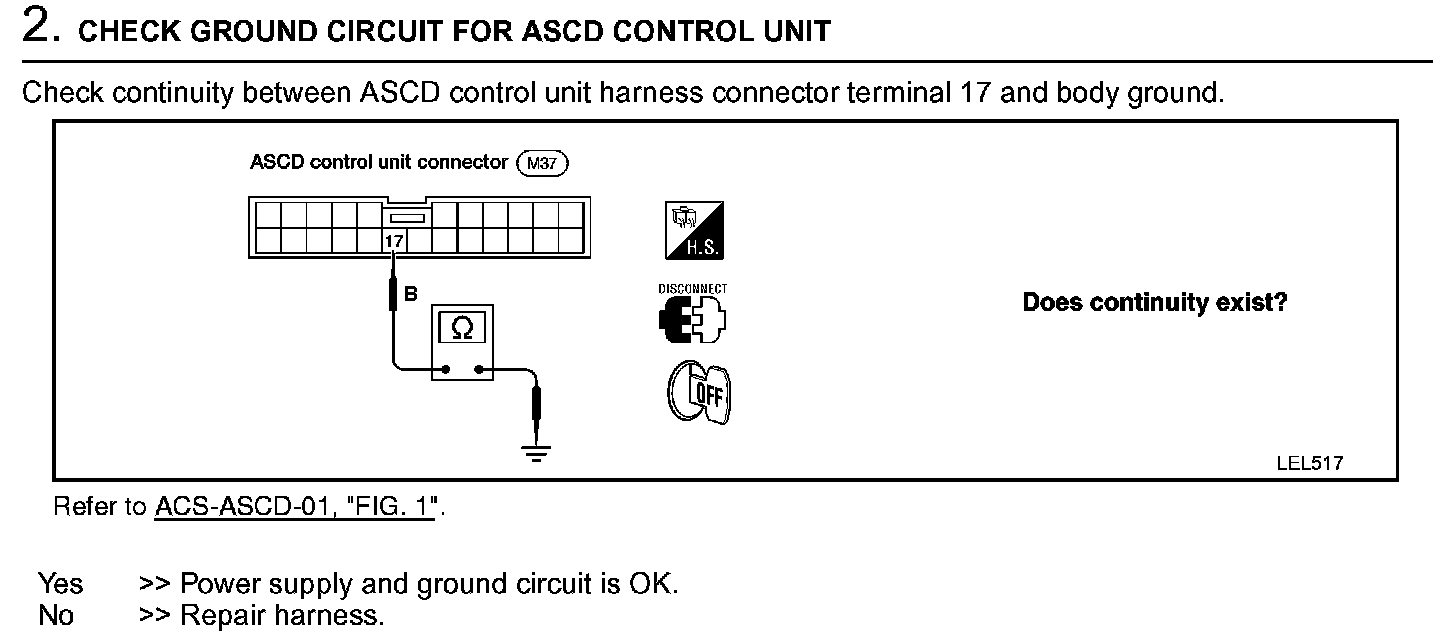

Power Supply And Ground Circuit Check Step 2:
