Power Supply and Ground Circuit Check

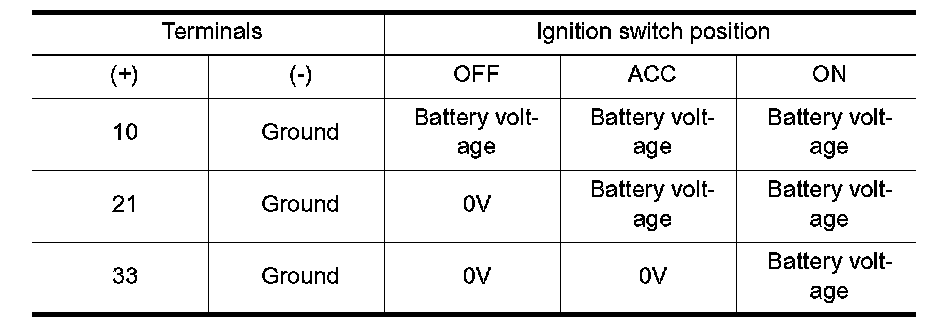

Power Supply Circuit Check:

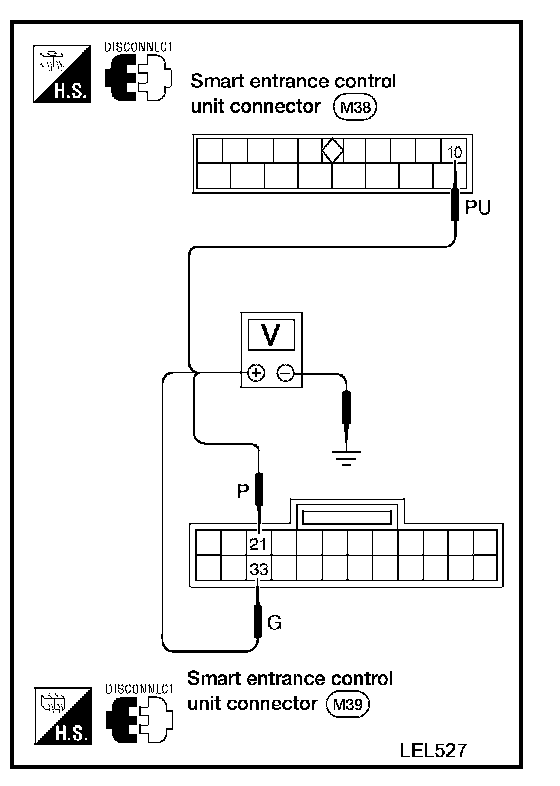

Power Supply Circuit Check:

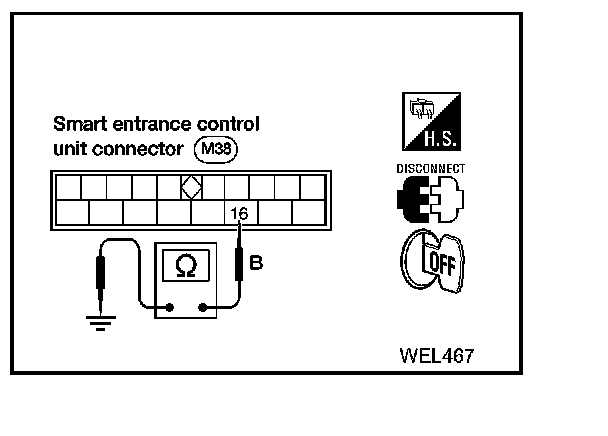

Ground Circuit Check:



Ground Circuit Check:
