Vehicle Security (Theft Warning) System
>>
Diagnosis By Symptom
>>
Symptom Chart
Symptom Chart

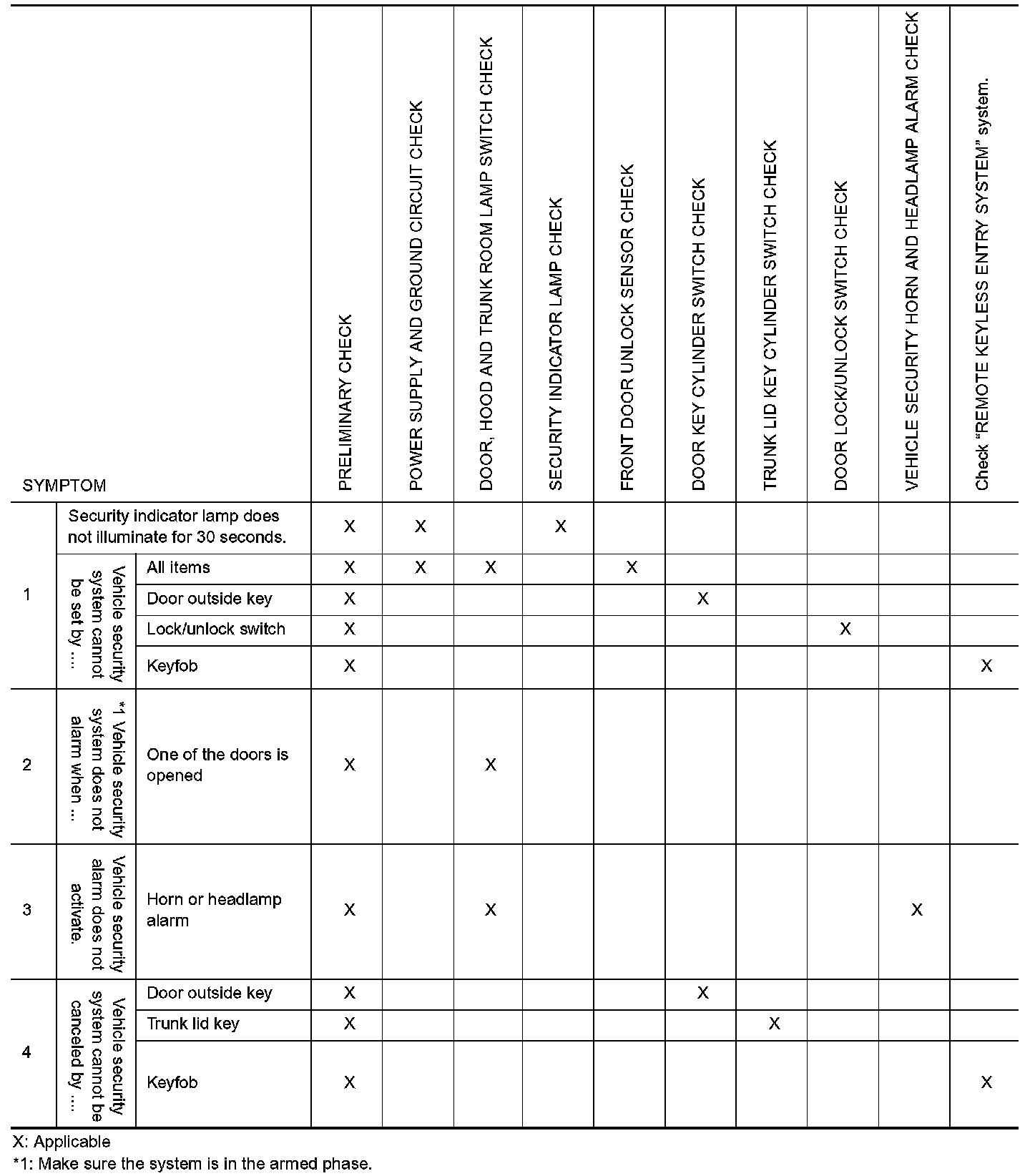

Symptom Chart:
Before starting trouble diagnosis above, perform "PRELIMINARY CHECK".
Initial Inspection
symptoms numbers in the symptom chart correspond with those of preliminary check.
