Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Vehicle Security (Theft Warning) System >> Component Tests >> Door, Hood and Trunk Room Lamp Switch Check

Door, Hood and Trunk Room Lamp Switch Check

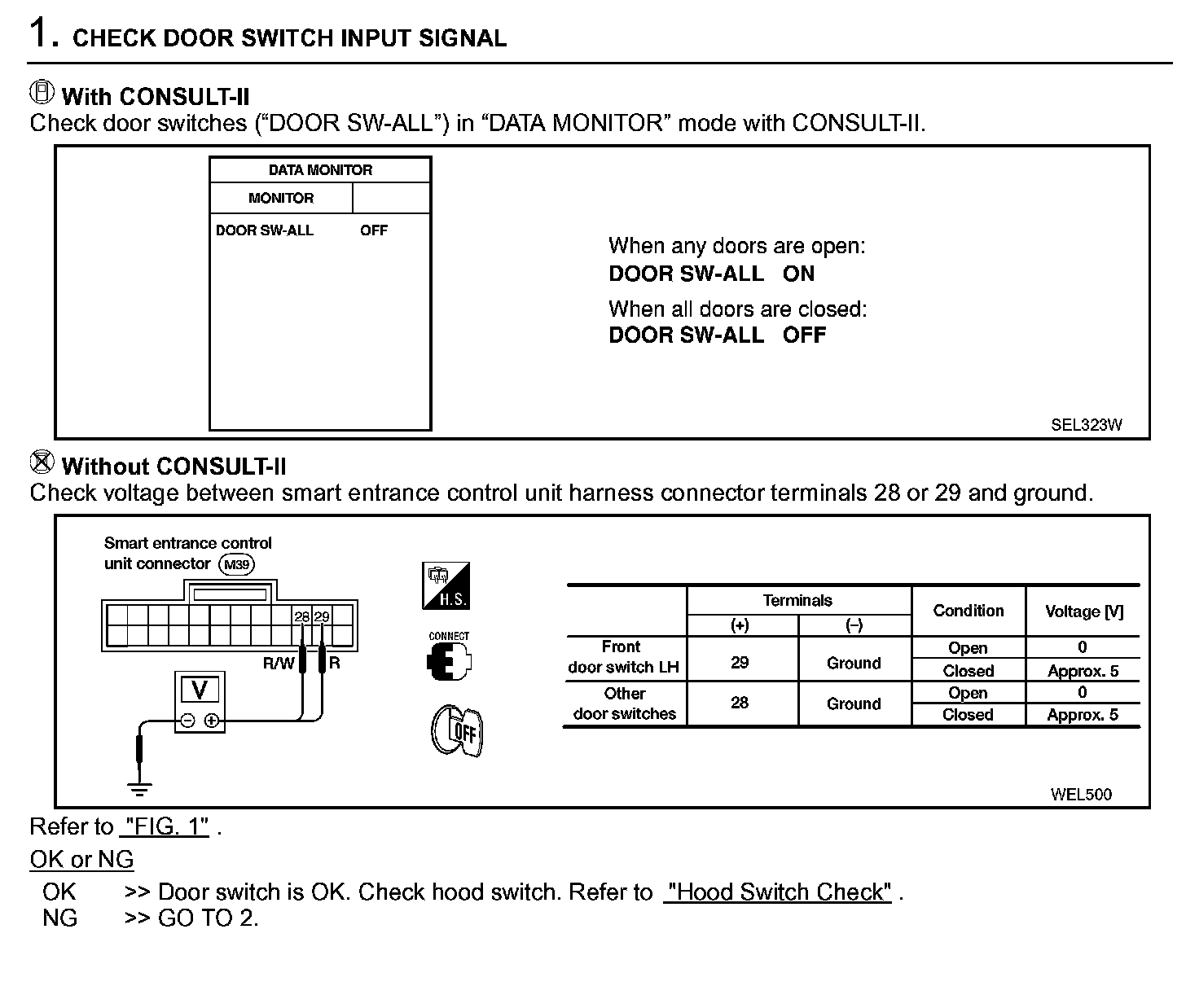

Door Switch Check Step 1:

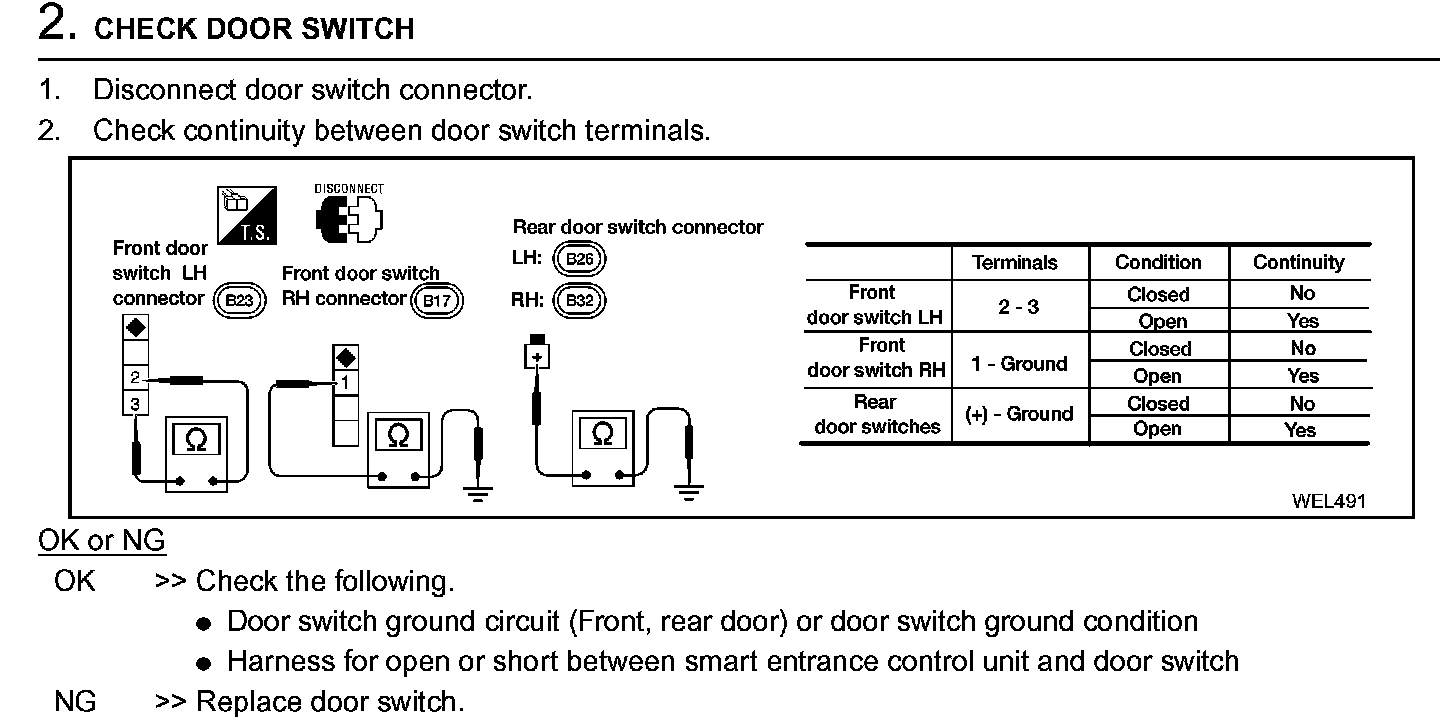

Door Switch Check Step 2:
