Consult-II Inspection Procedure

1. Turn ignition switch OFF.

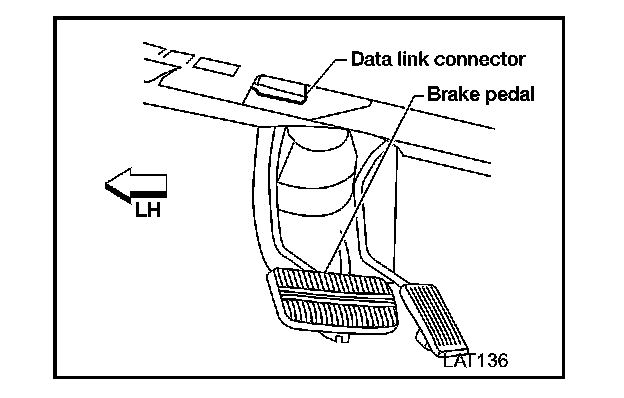

2. Connect "CONSULT-II" to data link connector.




3. Insert NVIS (NATS) program card into CONSULT-II.
4. Turn ignition switch ON.

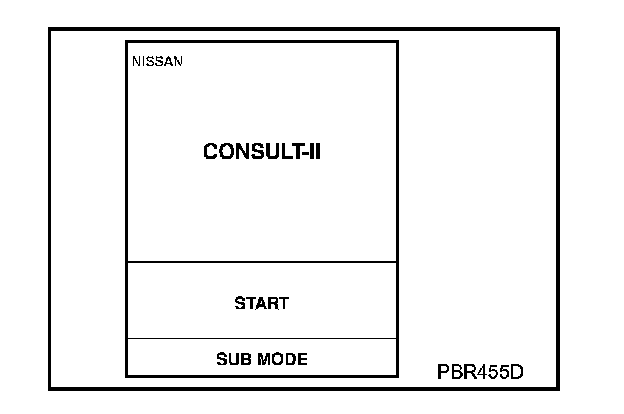

5. Touch "START".

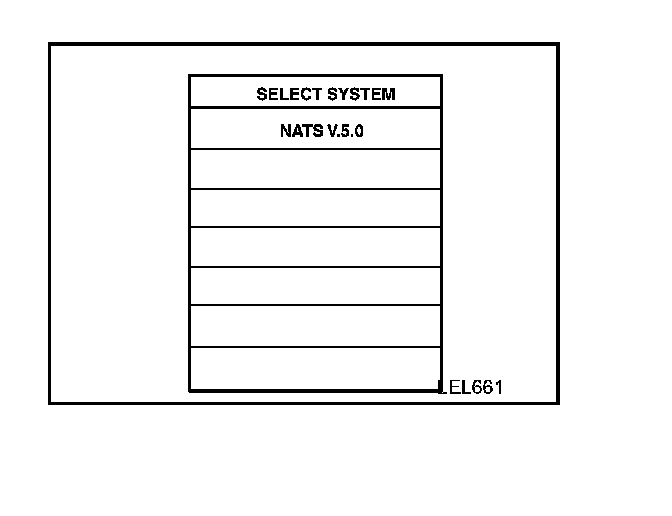

6. Select "NATS V.5.0".

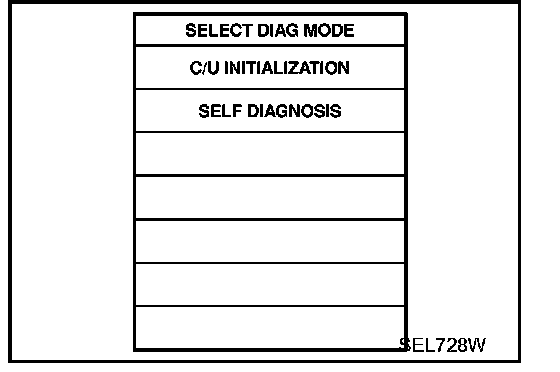

7. Perform each diagnostic test mode according to each service procedure.
For further information, see the "CONSULT-II OPERATION MANUAL IVIS/NVIS".
