NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Diagnosis By Symptom
>>
Symptom Matrix Chart
Symptom Matrix Chart

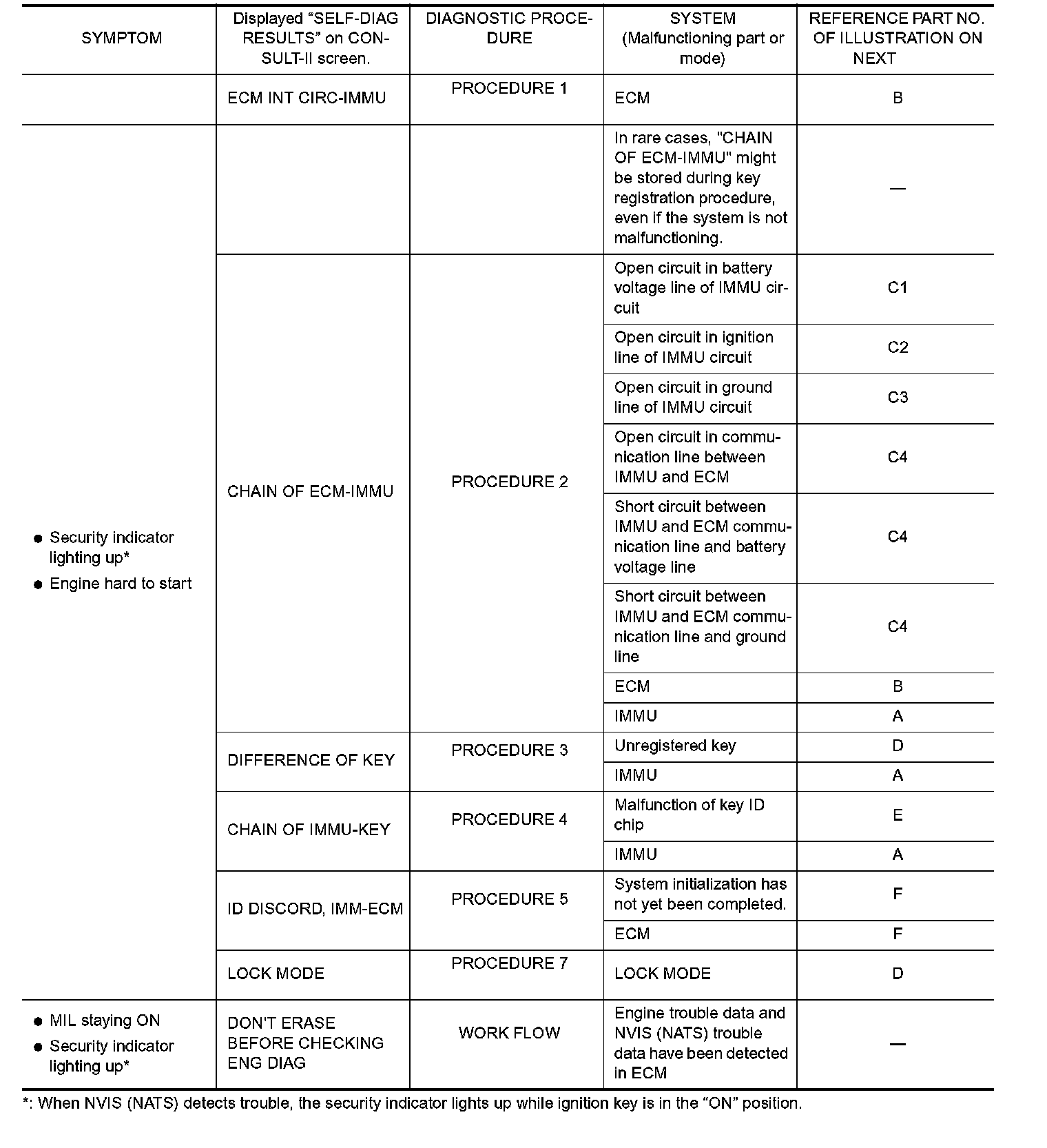

Symptom Matrix Chart 1 (Self-diagnosis Related Item):

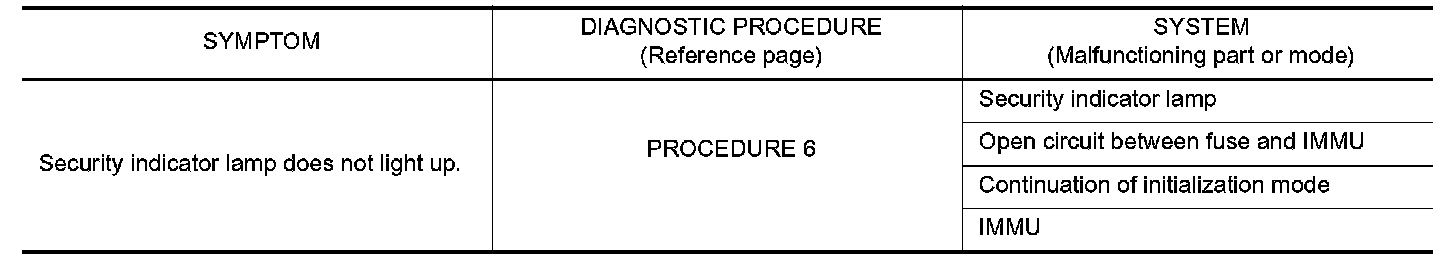

Symptom Matrix Chart 2 (non Self-diagnosis Related Item):
