Pinout Values and Diagnostic Parameters

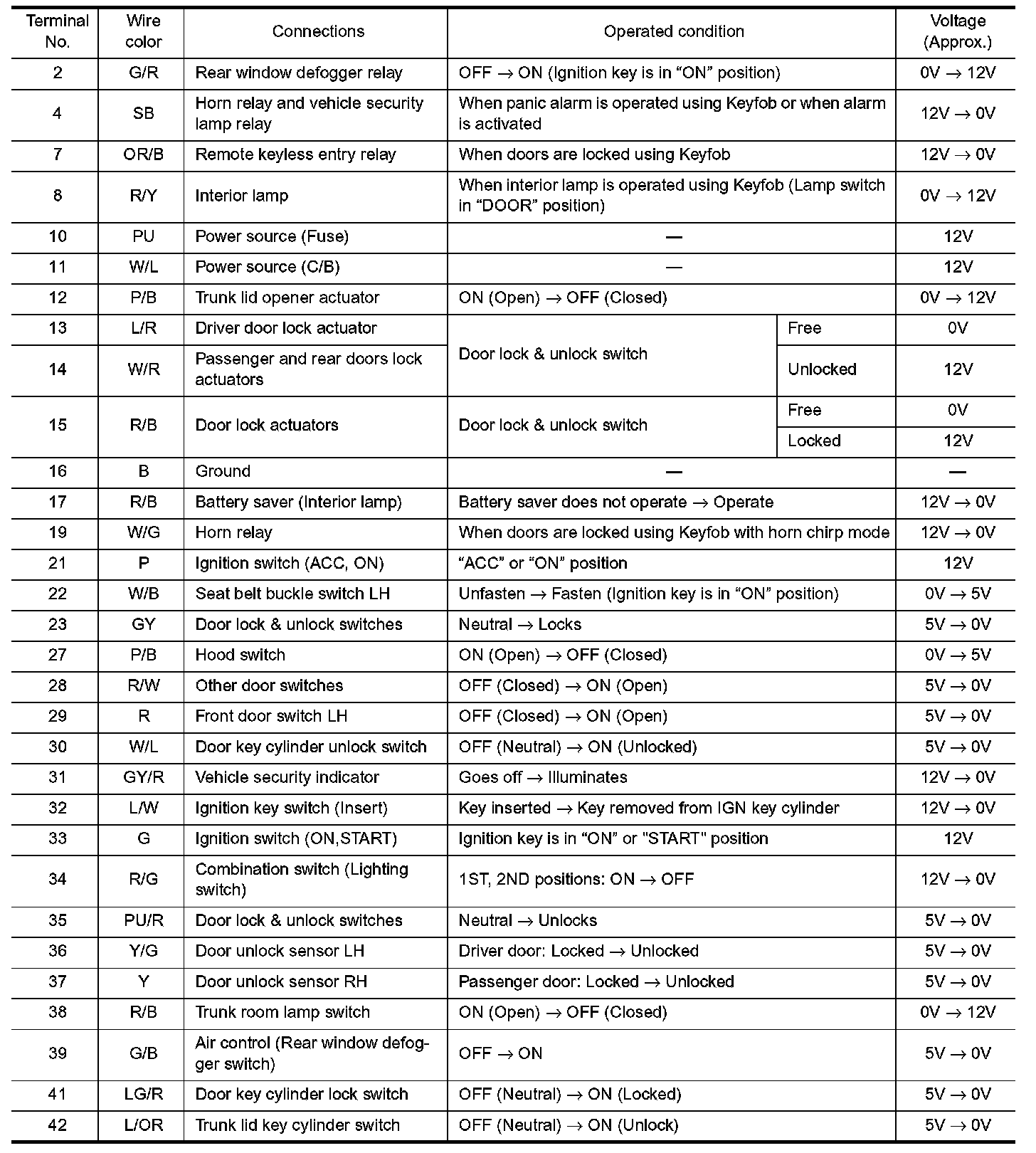

Smart Entrance Control Unit Inspection Table (Terminal No. 1 - 42):
