Home >> Nissan-Datsun >> 2002 >> Sentra CA (Clean Air) L4-1.8L (QG18DE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Keyless Entry Relay >> Locations

Keyless Entry Relay: Locations

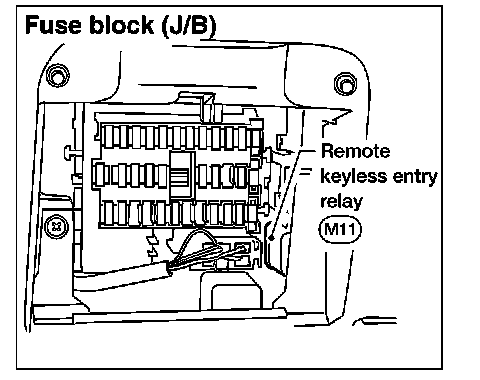

Fuse Block (J/B), Remote Keyless Entry Relay:
