Sentra CA (Clean Air) L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
Antitheft and Alarm Systems
>>
NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Diagnostic Procedure 3
Diagnostic Procedure 3

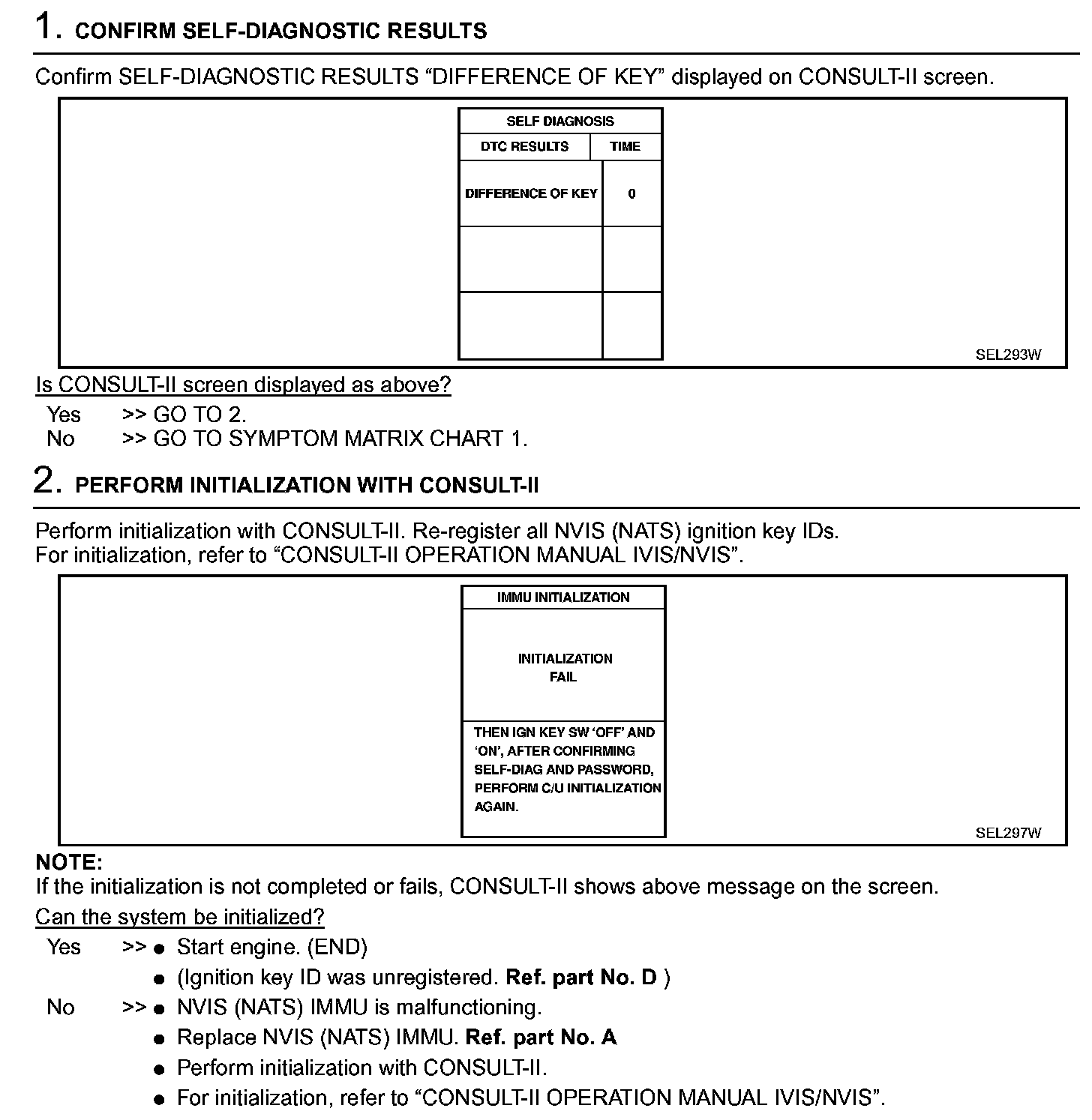

Step 1 - 2:
Self-diagnostic results: "DIFFERENCE OF KEY" displayed on CONSULT-II screen.
