Sentra CA (Clean Air) L4-1.8L (QG18DE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Related Tests, Information and Procedures
>>
Antitheft and Alarm Systems
>>
NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Diagnostic Procedure 2
Diagnostic Procedure 2

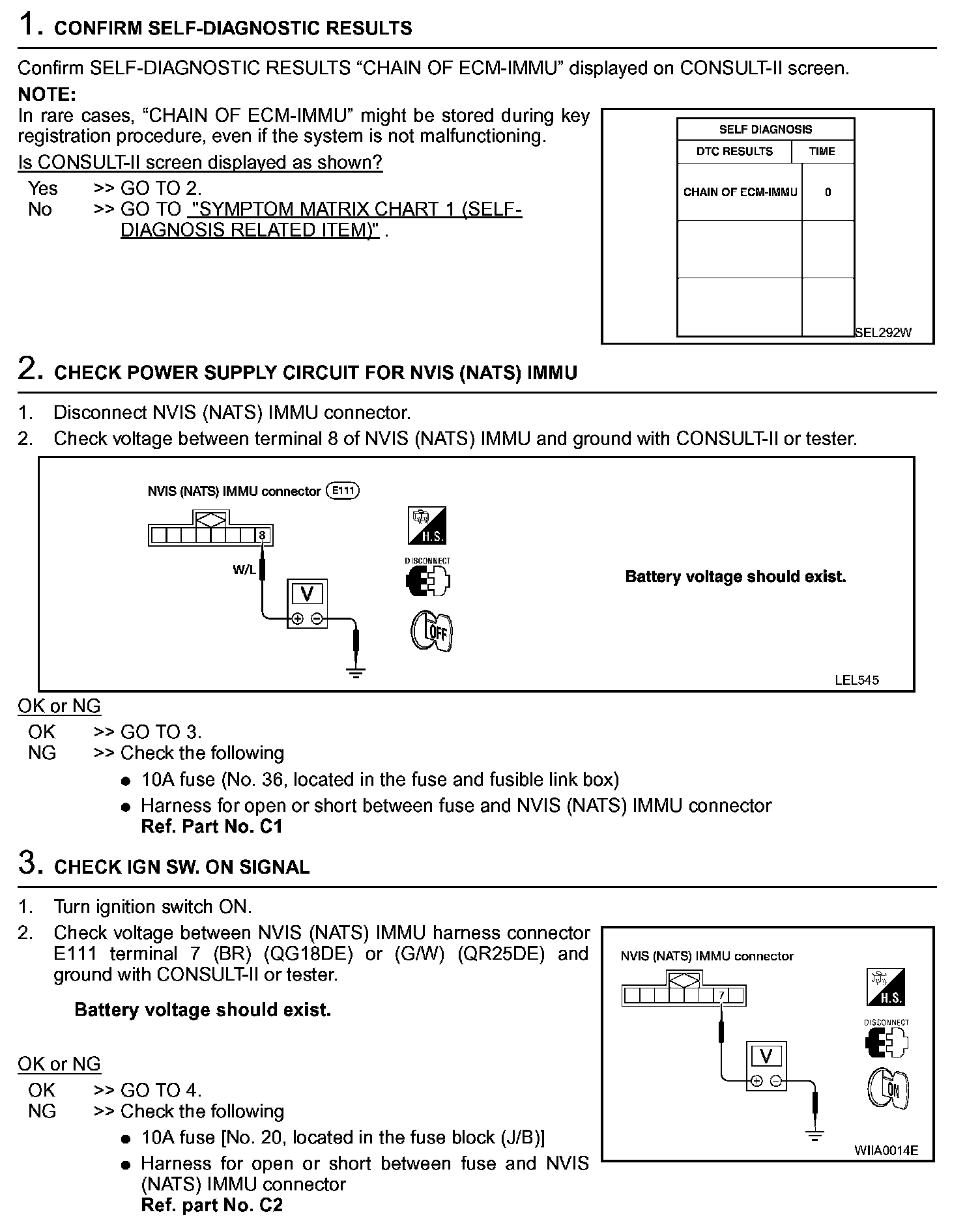

Step 1 - 3:

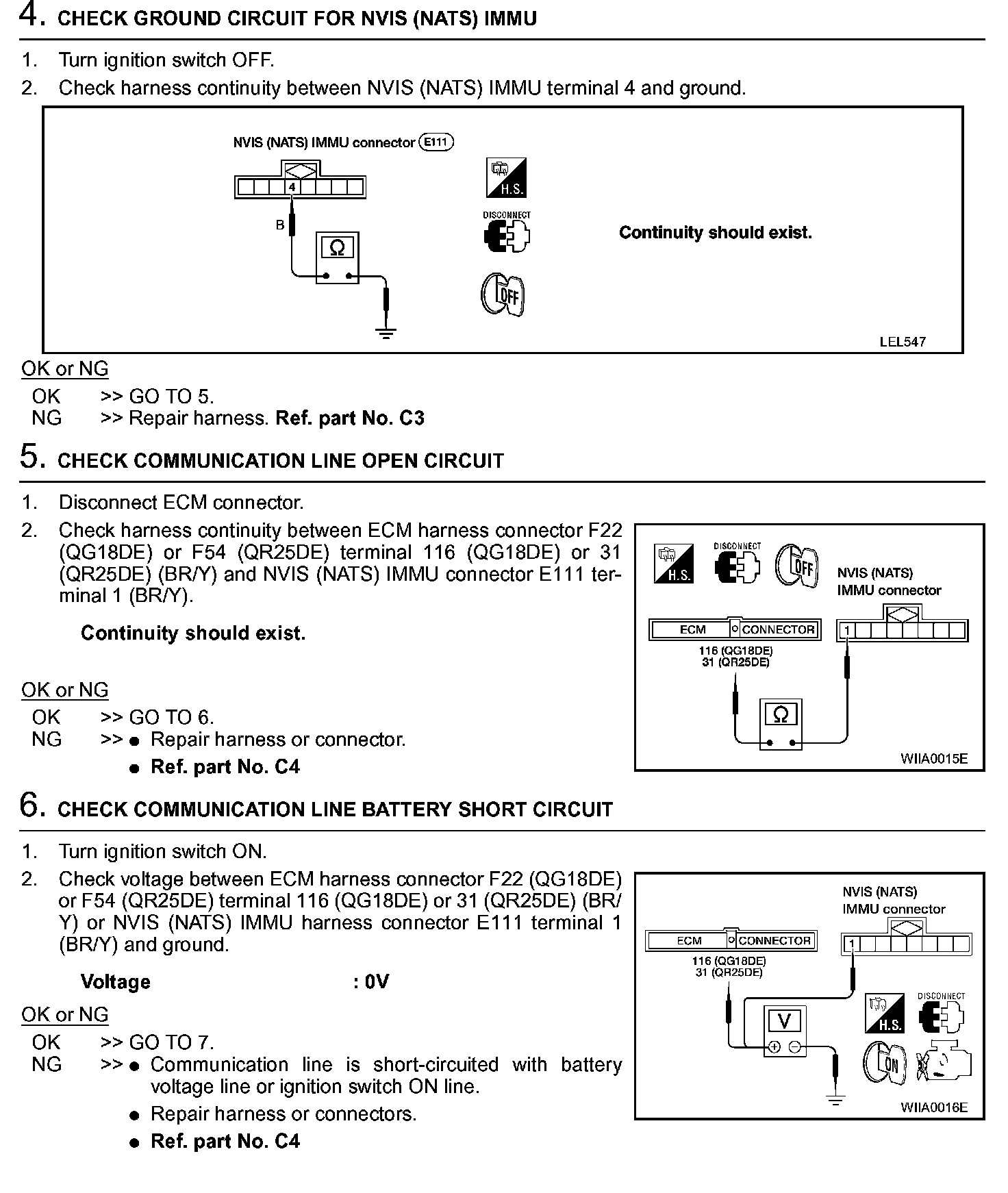

Step 4 - 6:
Step 7 - 8:
Self-diagnostic results: "CHAIN OF ECM-IMMU" displayed on CONSULT-II screen
